Application

For indoor and outdoor applications.

Description

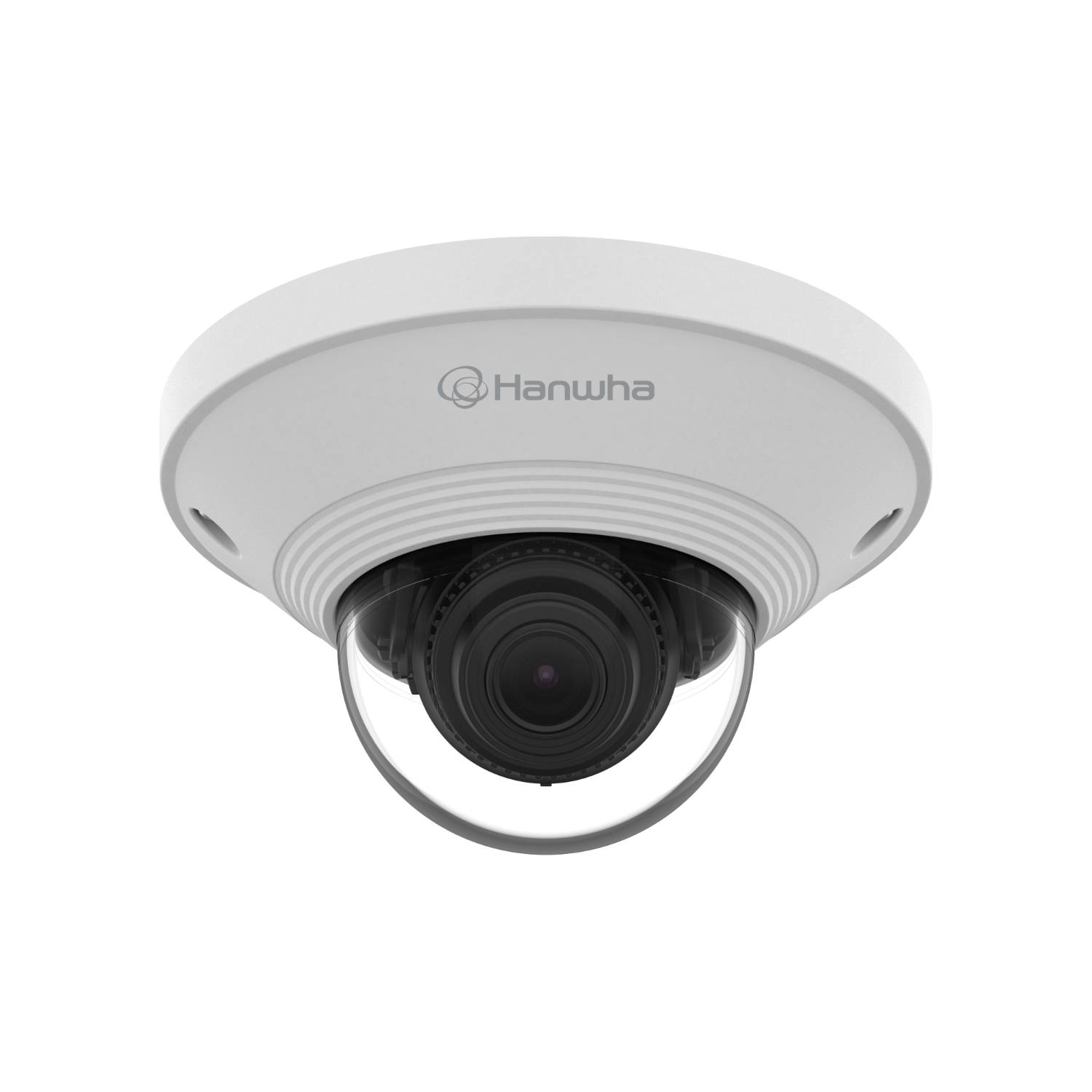

5M H.265 dome camera (Q mini).


Features and benefits:

  • Maximum 5 megapixel (2592 x 1944) resolution.
  • 2.8 mm fixed lens.
  • 0.15 lux (colour), WDR (120 dB).
  • Maximum 30 fps at 5 MP (H.265/ H.264).
  • H.265, H.264, MJPEG codec support, multiple streaming.
  • Tampering, motion detection, defocus detection.
  • Micro SD/ SDHC/ SDXC memory slot (maximum 128 GB).
  • Hallway view, WiseStream II support.
  • LDC, PoE.


General information

Color

White

Material

Plastic

Shape

Circle

Length

99 mm

Width

99 mm

Height

56 mm

Uniclass

Pr_60_75_86_31 Internet protocol (IP) fixed dome camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) fixed dome cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2592 x 1944.

2560 x 1440.

Guidance for specification option:

4 MP mode only.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour/ black and white 0.15 lux at f2.0 (1/30 s, 30 IRE).

Integrated illumination

Infrared.

Camera functions

-

Shutter

Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (electrical).

Privacy masks

Six, rectangular zones.

Display type

Camera title displayed up to 85 characters.

Lens

-

Format

Fixed focal length.

Focal length

2.8 mm.

Aperture range

F2.0 (maximum).

Angle of view

H: 105°/ V: 77°/ D: 137°.

Video motion detection

Four, polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP.

Video compression formats

H.265/H.264: Main/ high, MJPEG.

Video streaming

Unicast (6 users)/ Multicast.
Multiple streaming (Up to 3 profiles).

Integral memory storage (minimum)

512 MB RAM, 256 MB flash.

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP42.

Impact protection (minimum)

To BS EN 62262, IK08.

Housing colour

White.

Dome colour

Transparent.

Accessories

Not required.

SBP-300LMW.

SBP-300WMW1.

SBP-300KMW.

SBP-300BW.

SPG-IND16B.

SBP-300PMW.

SBP-300WMW.

SBP-300NBW.

SBP-300CMW.

Literature

CCTV camera 5MP Mini Dome (QND-8011) data sheet

CCTV camera 5MP Mini Dome (QND-8011) data sheet
