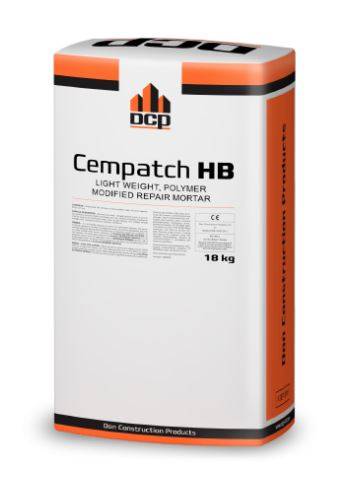

Cempatch HB - R2 High Build Repair Mortar
Verified by manufacturer 12 hours ago
High build, non-structural polymer-modified repair mortar.
Application
Suitable for the repair of all types of concrete requiring low permeability and where high compressive strength is not critical, including vertical and overhead elements.
Description
Single component, lightweight, high build, polymer-modified, cementitious repair mortar designed for use in concrete repair works.
Cempatch HB is mixed with water to produce a thixotropic mortar suitable for vertical and overhead applications.
Features and benefits:
- Thixotropic properties allowing for extra high build for vertical and overhead applications.
- Excellent low sag properties.
- Can be spray applied efficiently by the wet spray technique.
- High bond strength, ensuring monolithic performance of the repair.
- Low permeability to water, providing excellent protection to steel reinforcement and host concrete.
- Compatible with non-structural concrete of compressive strength 15–25 N/mm².
- Contains no chlorides.
- Non-flammable.
- Complies with BS EN 1504-3, Class R2.
Consult manufacturer's datasheet for detailed preparation, priming and mixing instructions.
General information
Color | Grey |
Finish | Smooth |
Material | Cement Polymer-modified cement |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | C42/315 Protective coating to reinforcement C42/310 Repair mortar |
Specification data - Concrete repair mortars
Standard | To BS EN 1504-3. |
Mortar type | Cement-based polymer-modified. |
Performance requirement class | R2.Guidance for specification option: For repair principles 3.1, 3.3, 7.1, and 7.2. |
Density | 1.5 g/cm³. Guidance for specification option: +/- 0.1. Manufacturer guidanceFresh wet density. |
CompressiveStrength | To BS EN 12190, ≥20 N/mm² (after 28 days). Guidance for specification option: ≥10 N/mm² (after 1 day). |
Flexural strength | To BS EN 12190, >3.5 N/mm² (after 28 days). |
Adhesion bond strength | To BS EN 1542, ≥1.5 N/mm². |
Application thickness | 100 mm (maximum). Guidance for specification option: Can be applied in a single application of up to 100 mm thickness in vertical applications, and up to 60 mm thickness in overhead applications without the need for formwork. |
Mix | 18 kg powder: 3.25 L water. |
Application temperature | 3°C (minimum). |
Chloride Ion content | To BS EN 1015, ≤0.04%. |
Freeze/ Thaw Resistance | To BS EN 13687, ≥0.8 N/mm². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cement Polymer-modified cement |
Manufacturing plant location | |
Expected Life | 20 year |
Literature
Cempatch HB TDS
Cempatch HB MSDS
