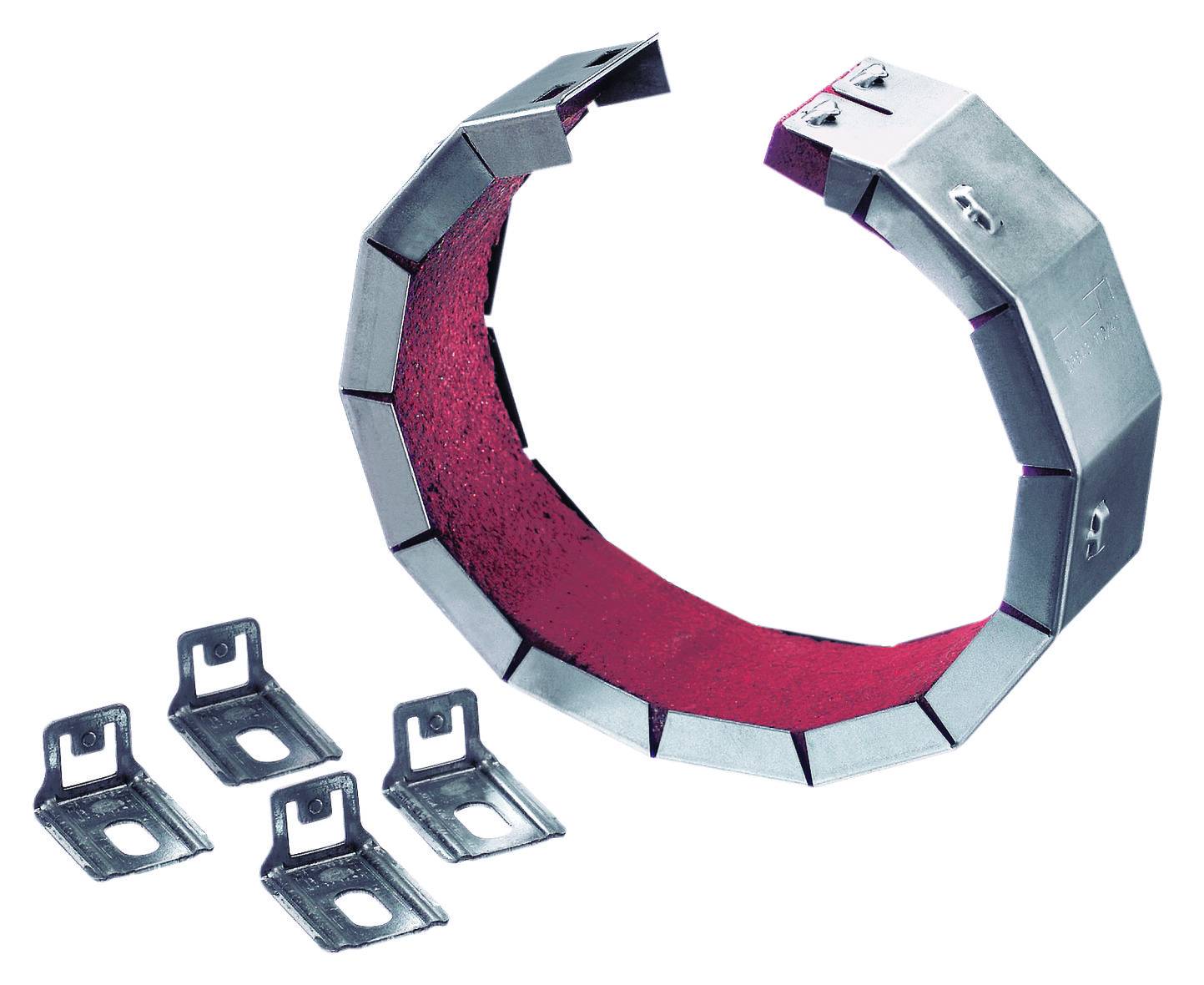

CFS-C P Premium Firestop Collar
Verified by manufacturer 19 days ago
European Technical Approval (ETA)
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Premium firestop collar.
Application
- A firestop collar for combustible pipes such as PE, PE-HD, PE-X, PP, PVC, ABS and Al-composite.
- Suitable for use in openings in concrete, aerated concrete and masonry.
- Also suitable for aluminium composite pipes with combustible insulation.
- Suitable for pipes up-to outer diameter 250 mm.
- Range of approved applications publicly present in 3rd party documents: 0843-UKTA-22/0043 and ETA-10/0404.
Description
ETA-compliant, retrofit premium firestop collar for sealing flammable pipes from 50 mm to 250 mm in diameter in penetrations through fire compartment walls and floors.
Features and benefits:
- Latch mechanism for quicker and easier closure.
- Flexible hook positioning – makes the firestop collar easier to fasten when near obstructions.
- Can be uninstalled.
- Can be visually inspected easily.
General information
Color | Grey |
Finish | Metallic |
Material | Intumescent |
Shape | Circle |
Length | 50 mm 53 mm 75 mm 90 mm 110 mm Manufacturer guidanceDiameter. |
Width | 50 mm 63 mm 75 mm 90 mm 110 mm Manufacturer guidanceDiameter. |
Uniclass | |
CAWS | P12/43 Pipe collar P12/370 Pipe collar |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 63 mm.75 mm.90 mm.110 mm.125 mm.160 mm.∅180 mm.200 mm.225 mm.Manufacturer guidanceDiameter. |
Fire performance | Up to two hours. |
Sound insulation rating | 51 dB.Guidance for specification option: Min Rw(C; Ctr ) = 51 (-2;-5) dB depending on ancillary product used. |
Air leakage | 50 Pa.Manufacturer guidance≤ 1.9E-06 @ Δp = 50 Pa, ≤ 9.7E-06 @ Δp = 250 Pa when using CFS-S ACR. |
Application temperature | -5 to +50°C. |
Temperature resistance | -20 to +100°C. |
Fire classification (EN 13501-1) | Class E. |
VOC emissions | 7.6 g/L. |
Position | Surface mounted. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Third party certifications
European Technical Approval (ETA)
ETA-10/0404 for CFS-C P Firestop Collar for Penetrations
UK Technical Assessment (UKTA)
UKTA22 0043 CFS-C P
