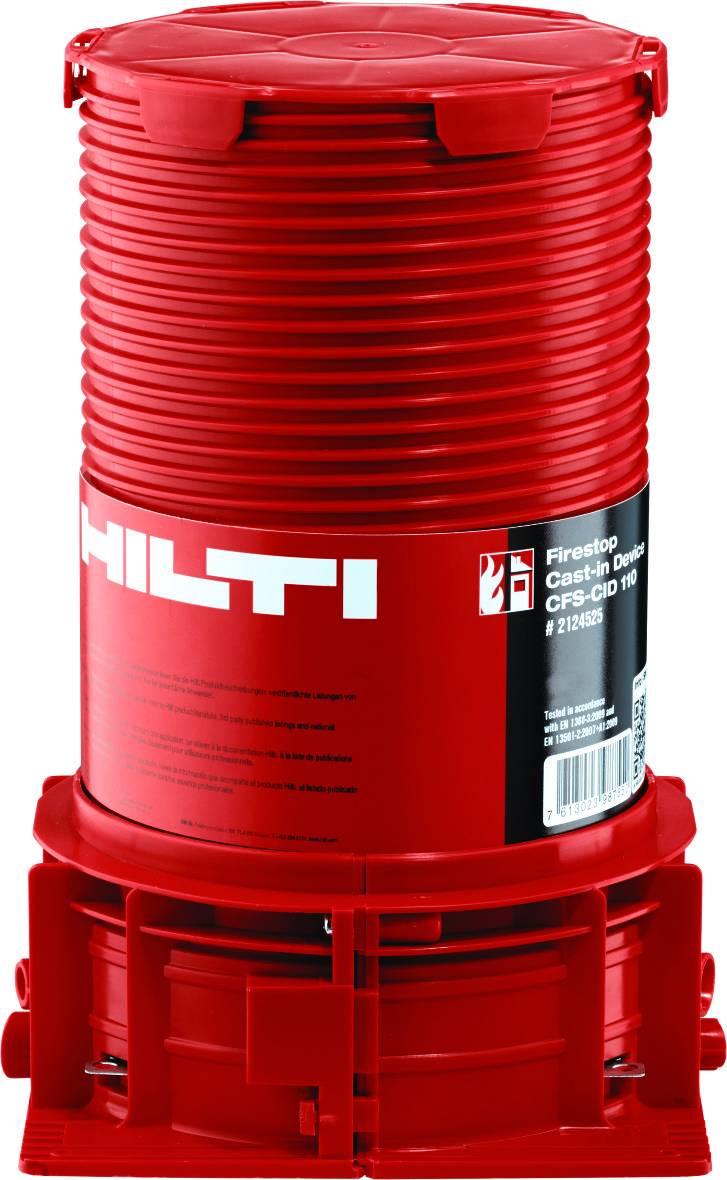

CFS-CID Firestop Cast-In Device

Name: CFS-CID Firestop Cast-In Device
Brand: Hilti (Gt Britain) Ltd
SKU: 8GwjqABibycvW1nwYwa3b7

Verified by manufacturer 19 days ago

Third party certifications:

Cast-in firestop device.

Jump to:

Application

Suitable for sealing combustible and non-combustible pipe penetrations.
Can be used with concrete slabs built with traditional formwork and in new building construction.

One-step firestop cast-in solution for a variety of pipe materials and diameters - no additional backfilling required.

Features and benefits:

Tested with pipe elbows, which allows reduced service zone.
Tested and approved for ventilated waster water pipes.
Modular connection allows close placement of multiple penetrations.
Quick and simple installation.
Integrated moisture and smoke seal.
Lid strong enough to carry foot traffic and light access equipment.
Fire resistance rating of up to three hours.
Range of approved applications publicly present in 3rd party documents: 0843-UKTA-22/0039 and ETA-20/1233.

Color	Red
Finish	Metallic
Material	Intumescent
Shape	Circle Rectangle
Length	94 mm 122 mm 162 mm 228 mm Manufacturer guidance Diameter.
Width	114 mm 142 mm 172 mm 238 mm Manufacturer guidance Diameter.
Height	250 mm

Uniclass	Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
CAWS	E42/320 Cast-in sockets

Product range	Firestop

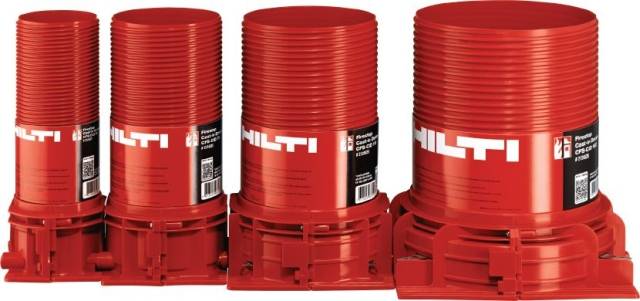

Sizes	50 mm. 75 mm. 110 mm. 160 mm. Manufacturer guidance Diameter.
Fire performance	Up to three hours.
Sound insulation rating	Up to 55 dB on site rating. Guidance for specification option: Min Rw(C; Ctr ) = 61 (-3;-7) dB.
