CSG 10140 Crash Tested Cantilevered Sliding Security Gate HVM - Security Gate

Name: CSG 10140 Crash Tested Cantilevered Sliding Security Gate HVM - Security Gate
Brand: Cova Security Gates Ltd
SKU: 6iXbgMu6W6c3DMBYJT6RZL

Verified by manufacturer 2 days ago

Cova Security Gates Ltd

Crash-tested sliding cantilevered gate (up to 40mph) designed to provide reliable hostile vehicle mitigation with minimal foundation depth, ideal for high-security sites.

Jump to:

BOS

+44 (0)1293 553888 Website

Application

The CSG 10140 is designed to meet the growing need for reliable vehicle-borne threat mitigation in a wide range of environments. With its certified PAS 68 crash rating, this sliding cantilevered gate offers tested protection for sites requiring enhanced perimeter security while also maintaining practical operational and installation flexibility.

Due to its minimal foundation depth of just 400mm, the CSG 10140 is particularly suitable for locations with shallow or utility-congested substructures, where traditional deep foundations may not be feasible. The sliding cantilevered design also makes it ideal for sites with large runback areas, where there is sufficient lateral space to accommodate the full opening of the gate without encroaching on internal roadways or pedestrian zones.

Typical applications include:

Domestic properties requiring certified anti-ram protection, especially in high-risk areas.
Gated residential communities, where both visual integration and reliable vehicle access control are priorities.
Commercial car parks, where wide, crash-tested gates improve security without disrupting daily operations.
Warehouses and distribution centers, where large vehicle movements demand robust perimeter control.
Utility and infrastructure sites, where shallow groundwork and secure access points are often essential.
With its ability to blend into perimeter lines and accommodate architectural enhancements, the CSG 10140 is a versatile choice for clients looking for both functional protection and site aesthetic continuity.

Description

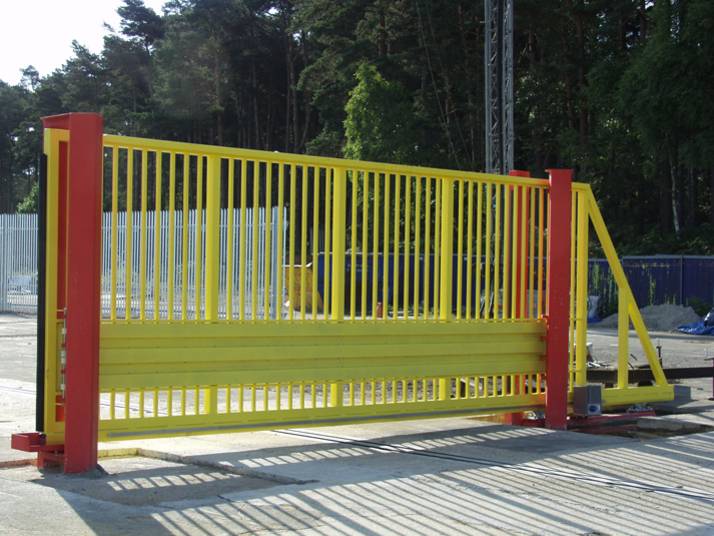

The CSG 10140 Crash-Tested Sliding Cantilevered Gate is an advanced hostile vehicle mitigation solution engineered for sites requiring robust security at a lower cost.

Designed by Cova Security Gates, this crash-tested sliding gate delivers proven protection against vehicle-borne terrorist threats and ram-raid attacks, making it an ideal choice for critical infrastructure and high-security perimeter applications.

Successfully tested to PAS 68:2010 standards, the CSG 10140 achieved the following ratings:

3000mm wide x 2400mm high: V/7500[N2]/64/90:1.7/0.0
5000mm wide x 2400mm high: V/7500[N2]/64/90:2.0/0.0
8000mm wide x 2400mm high: V/7500[N2]/64/90:3.0/0.0

These results confirm the gate’s ability to effectively stop a 7.5-tonne vehicle traveling at 40mph, with zero vehicle penetration – offering a secure barrier to high-risk access points.

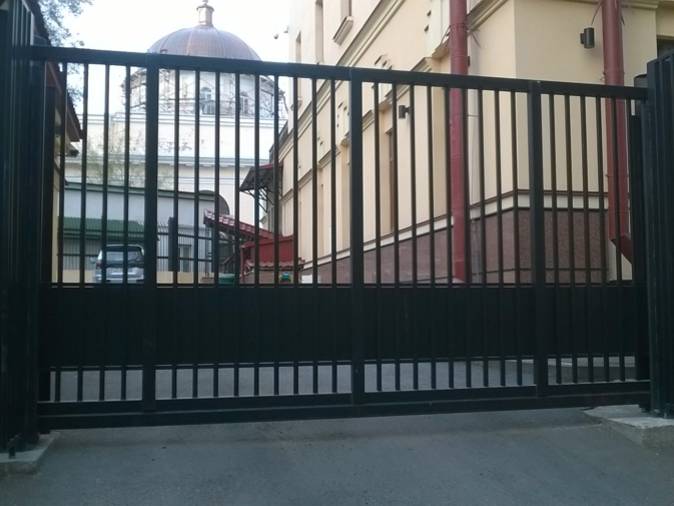

Constructed from standard steel sections rather than bulky or overly heavy materials, the CSG 10140 offers an aesthetically clean design that integrates seamlessly into the existing perimeter or building line. It supports architectural enhancements such as cladding, mesh infills, and security toppings, allowing it to align visually and functionally with broader high-security fencing systems.

One of its standout features is the minimal foundation depth of just 400mm, making it especially suitable for sites with shallow or utility-congested substructures, where deep foundations are either not feasible or highly costly.

Available in gate widths from 3000mm to 8000mm and heights from 1800mm to 2400mm (custom heights available upon request), the CSG 10140 is a highly flexible sliding gate system. It is also available in a non-crash-tested version where vehicle impact resistance is not required but the same design continuity is preferred.

Finished in any RAL colour, the gate can be supplied to match site aesthetics, making it ideal for embassies, military sites, utility infrastructure, transport hubs, petrochemical facilities, and financial institutions.

In summary, the CSG 10140 Crash-Tested Sliding Cantilevered Gate combines certified impact resistance, cost efficiency, and aesthetic flexibility—offering a secure and visually cohesive perimeter protection solution for today’s high-risk environments.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Shot blasted Primed Galvanized Zinc plated Powder-coated
Material	Steel Stainless steel
Shape	Rectangle Square
Width	Bespoke 8000 mm
Height	Bespoke
Warranty description	- Manufacturer guidance Warranty, service and maintenance available. Consult manufacturer for details.

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary
CAWS	Q40/560 Steel gates and posts Q40/40 Steel gates Q40/45 Proprietary gates Q40/570 Proprietary gates and posts

SKU Code	CSG10140

Specification data - Carbon steel gates

Standard	To BS EN 13241-1.
Dimensions	-
Span	- Manufacturer guidance Maximum opening: 8000 mm. Insert requirements.
Height	- Manufacturer guidance Standard heights: 1800–3000 mm, higher if required. Insert requirements.
Posts	Mild steel.
Gate leaves	Mild steel sections with 30 mm RHS vertical bar infill sections.
Hardware	-
Operating	Automatic. Guidance for specification option: In-house manufactured enhanced drive unit. Programmable logic controller (PLC) based control system. Operational usage: 80% duty cycle.
Finish as delivered	-
Worked finish	Shot blasted to SA 2.5.
Applied finish	Powder-coated. Guidance for specification option: 60 μm. Insert RAL colour requirement. Galvanized primed. Guidance for specification option: 60 μm. Zinc primed. Guidance for specification option: 60 μm.

Mains	230 V, 50 Hz, single phase rated at 10 Amp.
Safety	Photocells. CAT3 safety edge system.
Certification	PAS 68 crash testing. Guidance for specification option: 3 m wide: PAS 68: 2010 V/7500[N2]/64/90:1.7/0.0. 5 m wide: PAS 68: 2010 V/7500[N2]/64/90:2.0/0.0. 8 m wide: PAS 68: 2010 V/7500[N2]/64/90:3.0/0.0.
