DB1600 Dolphin Blue Monobloc Mixer Tap
Verified by manufacturer 8 months ago

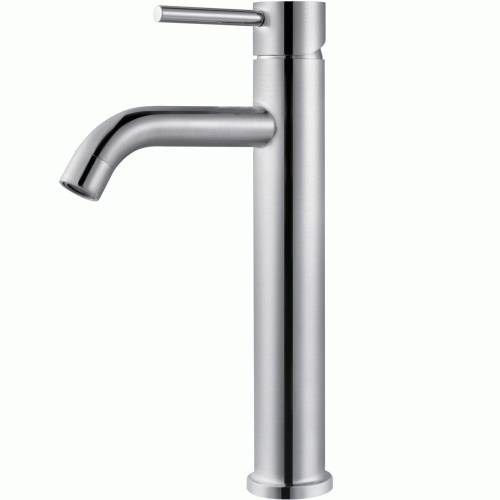

A stainless steel, single lever, basin mixer tap.
Application
Suitable for washroom application.
Description
A stainless steel, single lever, basin mixer tap designed for counter top mounting.
Features and benefits:
- Constructed from grade 304 (1.4301) stainless steel.
- Unlike a brass tap, the stainless steel tap is casted, ensuring smoothness of inner and external surfaces.
- Interchangeable STD M22/24 Neoperl Aerator insert.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel Guidance for specification option: Grade 304 (1.4301). |
Shape | Other |
Length | 326 mm |
Width | 45 mm |
Height | 117 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
SKU Code | DB1600 |
Product range |
Specification data - Washbasin thermostatic water supply sets
Classification data | |
Form | Counter top mounted. |
Materials | |
Body | Stainless steel, grade 304 (1.4301). |
Finish and colour | Brushed. |
Dimensions | 326 x 45 x 117 mm. |
Diameter | Manufacturer guidanceCounter hole: 28–34 mm, specifier to detail. |
Thickness | 40 mm. Manufacturer guidanceCounter hole, maximum. |
Inlet | Two flexible connectors with 1/2” BSP connection. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
