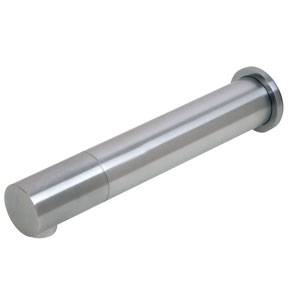

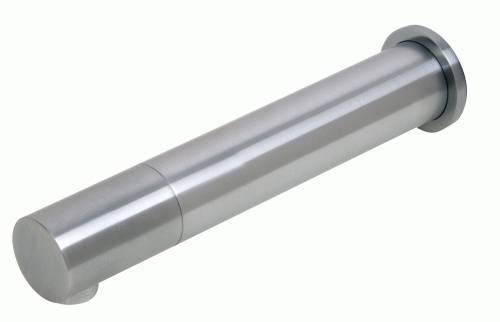

DBXL425 Dolphin Blue Panel Mounted Infrared Tap - Extra Long Series
Verified by manufacturer 2 months ago
DBXL 400C
DBXL 400C
A panel mounted, extra long electronic taps.
Application
Suitable for washroom application.
Description
A panel mounted, extra long electronic taps.
Features and benefits:
- Touch free tap.
- Available in Mirror Polish Chrome Plated Brass.
- Up to 70% water savings.
- BREEAM, SKA, WRAS, DOC M compliant.
- Flow rate: Max. 3.5 litres/minute (1.25 and 1.75 litres/minute available).
- Projection 280 mm to outlet.
- Water Supply: Single inlet cold or pre-mixed – a TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications.
- Plug-in 9 Volt transformers or 9 Volt Battery (with low battery warning).
- Contributes to up to five BREEAM WAT 1 credits.
- To combat Legionella, hygiene flush feature runs the tap for 25 seconds, 24 hours after the last use of the tap. This flush time or 24 hours interval cannot be changed and is not based on real time, the feature can only be switched on or off using a compatible remote control (DB51). Taps are supplied with this feature switched on.
General information
Color | Silver |
Finish | Polished |
Material | Brass |
Shape | Other |
Length | 295 mm |
Width | 38 mm |
Height | 38 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 4 L/min.6 L/min. |
Water supply temperature (maximum) | 70ºC. |
Integral accessories | DB51 remote control. |
Diameter | Manufacturer guidancePanel hole required: 23–40 mm, specifier to detail. |
Thickness | Manufacturer guidance10–30 mm, specifier to detail. |
PowerSource | 6 x AA batteries. |
Dimensions | 295 x 38 x 38 mm. |
Water supply | Single inlet cold or pre-mixed. Guidance for specification option: A TMV2 or TMV3 thermostatic mixing valve is recommended for premixed applications. |
Operating pressure (maximum) | 0.5–8.0 bar (7–116 PSI). |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
