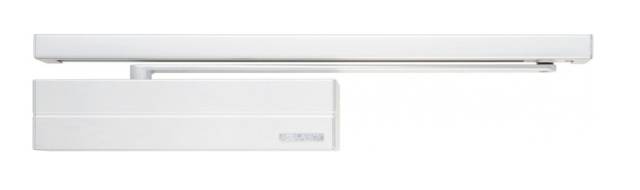

DC700 Door Closer
Verified by manufacturer 1 month ago
Door closer with Cam-Motion technology and choice of guide rail.
Application
- For single action doors up to 1400 mm wide.
- Can be used for left and righthanded doors.
- Suitable for fire and smoke protection doors.
Description
Door closer with CAM motion technology and height-adjustable guide rail G195 or standard guide rail G193 (size 3-6).
Features and benefits:
- Can be used with integrated concealed mounting plate.
- Four installation types: Hinge and non-hinge sides in standard and lintel installation.
- Guide rail height-adjustable to 14 mm.
- Adjustable door speed, latching speed and backcheck from front facing regulator valves.
- Thermodynamic valves for consistent performance.
- Variable adjustable closing force.
- Opening angle up to 170°.
- Effective backcheck and latching speed range adjustable.
- Variable adjustable closing force: EN 3–6.
- Closing speed: Variable between 0–170°.
- Latching speed: Variable between 0–15°.
- Opening angle hinge side: 170°.
- Opening angle non-hinge side: 120°.
- CE certified in compliance to BS EN 1154.
- Same dimensions and design with or without mounting plate.
- Fulfils barrier-free building requirements (DDA, CEN/TR 15894).
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 485 mm |
Width | 57 mm |
Height | 64 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154 and BS 8300. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | Adjustable 3–6. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 4. |
Form | Overhead, face fixed. |
Closer functions | Back check.Controlled closing.Latching. |
Materials and finishes | |
Bodies | Stainless steel. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Silver.Satin stainles steel. |
Execution | Adjusting controlled door closers.Fasteners for hardware. |
Accessories | None. Angle bracket A104. Guidance for specification option: For Guide Rail G193. Height-adjustable guide rail G195. Mechanical hold open device A152. Guidance for specification option: Not for fire and smoke protection doors. Mechanical opening damper A153. |
Sustainability data
Material | Stainless steel |
Recyclability | Manufacturer guidanceMetals widely recycled. |
