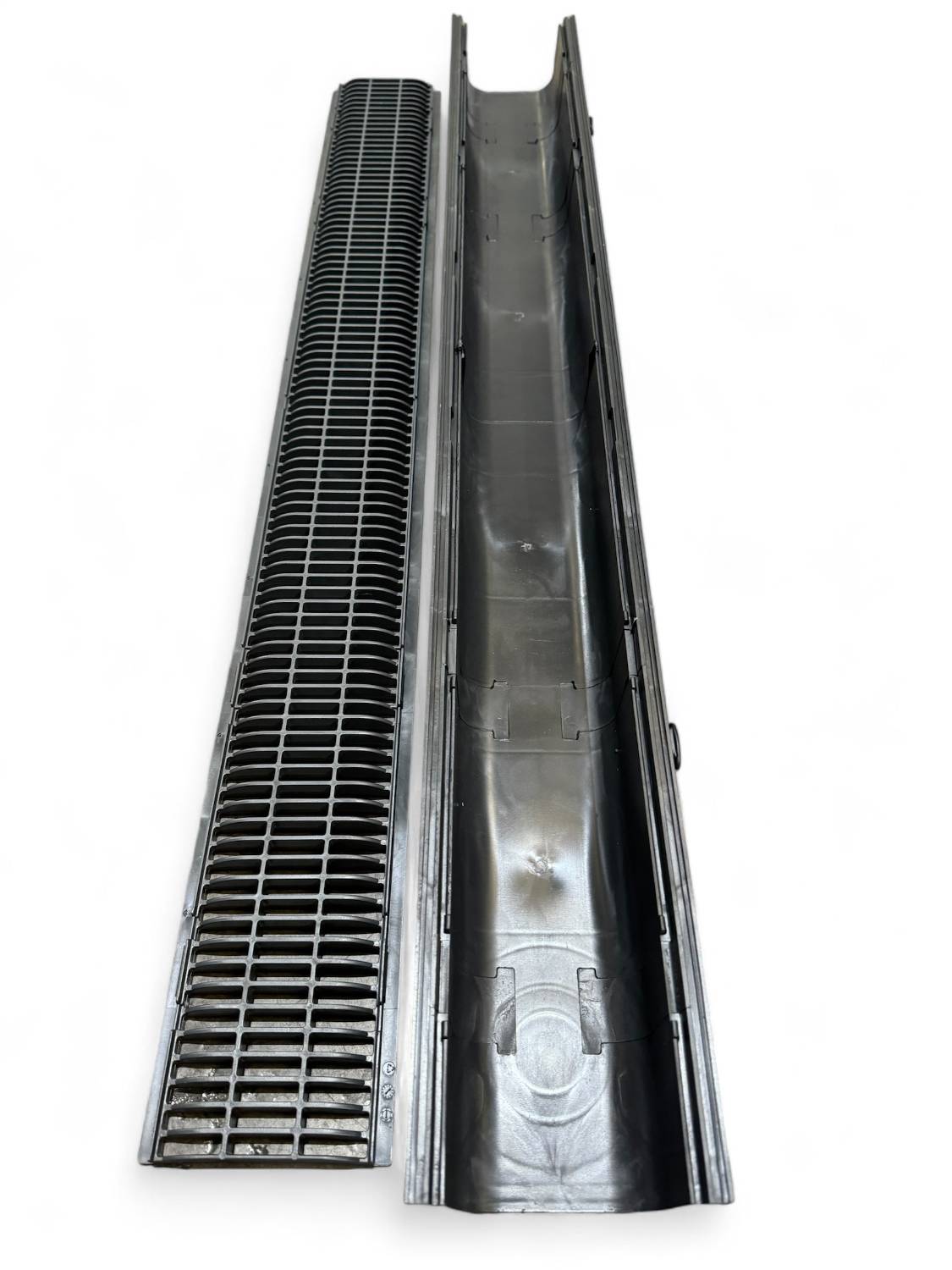

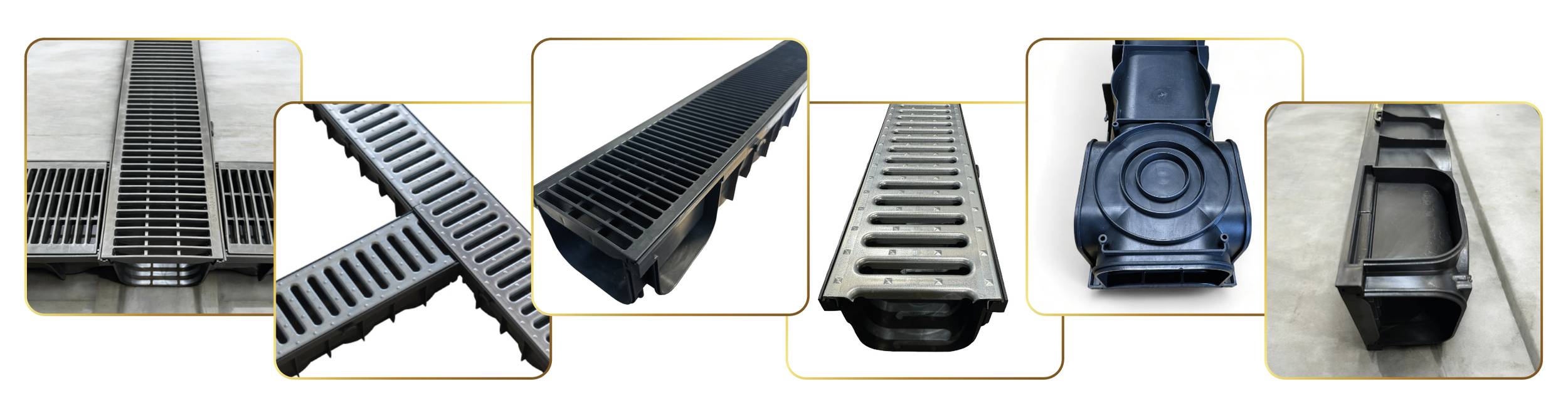

A15 plastic mesh and galvanized drainage solutions.
Drainage channel.
A15 plastic mesh and galvanized drainage solutions offer a robust and effective way to manage surface water runoff in various applications.
A15 plastic mesh and galvanized drainage solutions offer a robust and effective way to manage surface water runoff in various applications. The A15 designation refers to a load-bearing capacity, signifying its suitability for pedestrian and light vehicular traffic. This type of plastic mesh is often used as a grating within drainage channels, providing a durable and lightweight alternative to heavier materials. When paired with galvanised drainage channels, the system benefits from the corrosion resistance of the galvanisation process, ensuring a long lifespan even in harsh environmental conditions. Together, A15 plastic mesh and galvanised drainage provide a practical and cost-effective solution for efficient water management around buildings, walkways, and other areas requiring effective drainage.
Color | Black |
Finish | Galvanized |
Material | Plastic Steel |
Shape | Rectangle |
Length | 1000 mm |
Width | 121 mm |
Height | 50 mm 84 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
SKU Code | DCD-VL |
Classification data | |
Standard | To BS EN 1433. |
Properties | |
Material | Steel. Plastics. |
Gratings | |
Material | Plastics. Galvanized steel. |
Form | Slotted. |
Colour | Black. Galvanized. |
Load class (minimum) | A 15. |
Channel unit dimensions | |
Width (nominal) | 121 mm. |
Depth (nominal) | 50 mm. 84 mm. |
Length | 1000 mm. |
Integral accessories | Bottom outlet. Guidance for specification option: 110 mm. End cap pack. Guidance for specification option: To suit 50 or 84 mm. Insert requirements. Outlet trapped sump gully with leaf-guard. Guidance for specification option: 110 mm. |
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | Plastic Steel |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
