Dekdrain Cetus D400

Name: Dekdrain Cetus D400
Brand: DEKS INDUSTRIES EUROPE LIMITED
SKU: cx4wqqQCzzQxRr5wGUQjSa

Verified by manufacturer 9 days ago

DEKS INDUSTRIES EUROPE LIMITED

Rainwater Collection and Liquid Drainage Solutions for Industrial Applications

Jump to:

Request BIM

01275 858866 Website

Application

It can be combined with a wide range of gratings which can be selected for use in pedestrian areas, driveways, roads and highways.

Description

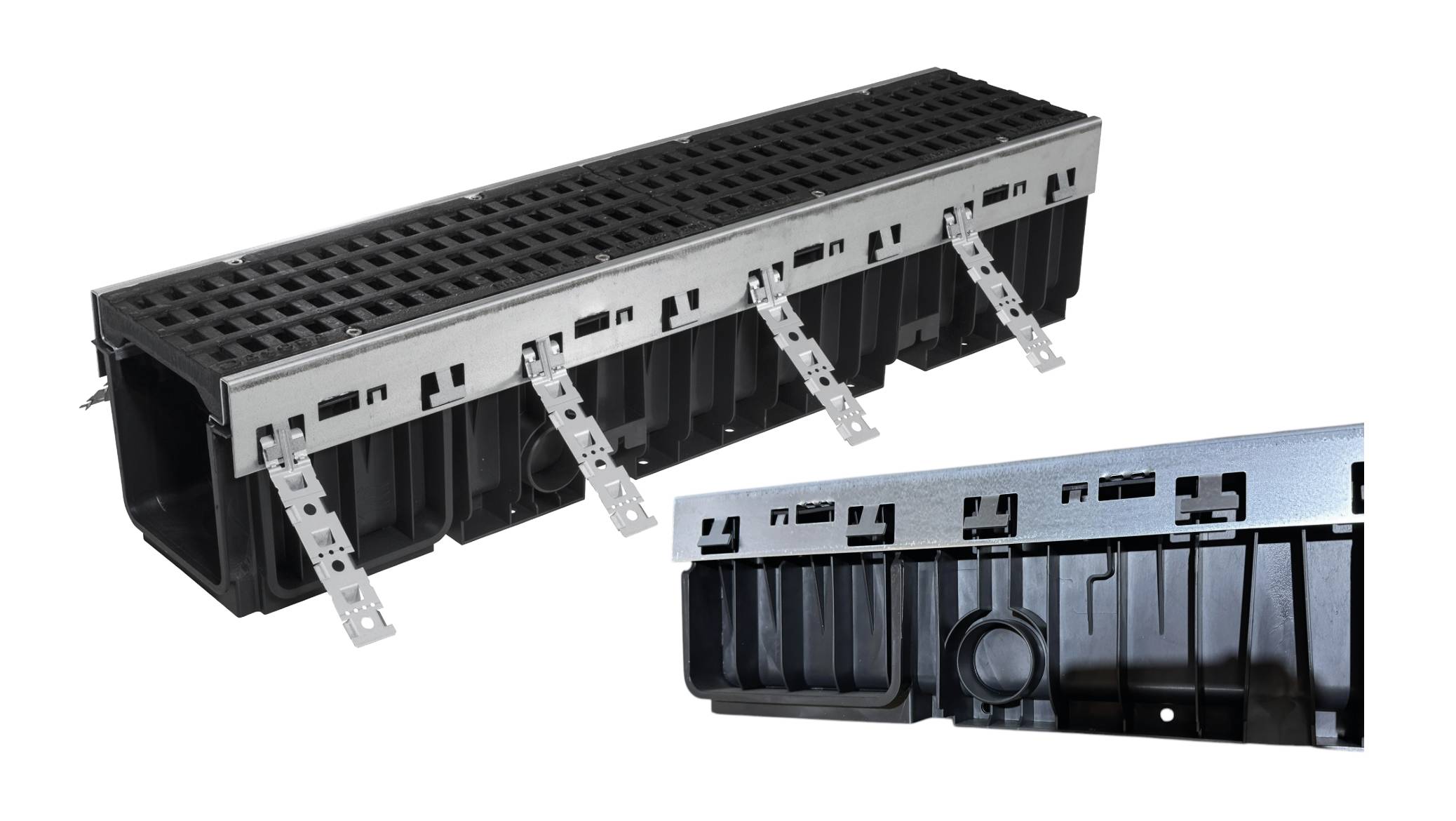

The Cetus D400 is a Higher Load Channel System designed for strength and size variations. The Ductile Iron Grid grating offers maximum inward water flow with it’s 158/ 225/ 276 mm width and no cross-flow. Designed for heavier duty applications areas where load is of importance. Must be installed to BS EN 1433 instructions. This is available ex-stock.

Features and benefits:

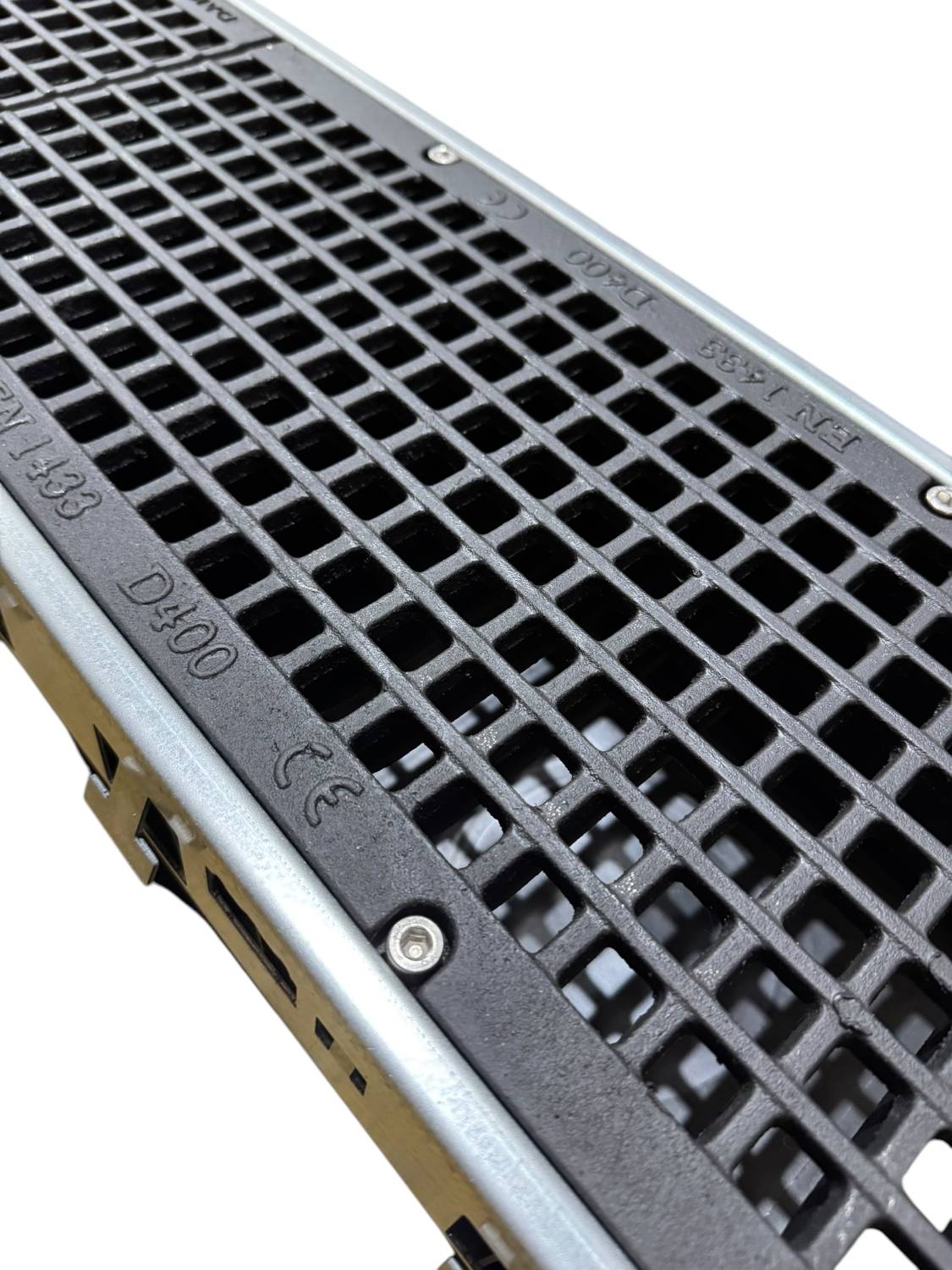

D400 Grid Type Ductile Iron Grating, two Gratings per metre, eight Bolt Sets per metre. two galvanized Clip-in Edge Rails supplied.
Only available in black.
External Inlet Diameters are: 50/ 63 mm, Bottom Outlet Diameters are: 110/ 140mm.
Made of HDPE (high density polyethylene).

General information

Color	Black
Finish	Smooth
Material	High density polyethylene (HDPE) Iron
Shape	Rectangle
Length	1000 mm
Width	158 mm
Height	198 mm
Warranty description	One year

Uniclass	Pr_65_52_24_24 Drainage channels with gratingsPrimary
CAWS	Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings

Specification data - Drainage channels with gratings

Classification data
Standard	To BS EN 1433.
Properties	-
Material	High-density polyethylene.
Gratings	-
Material	Ductile iron.
Form	D400 Grid Type Ductile Iron Grating.
Colour	Black.
Load class (minimum)	D 400.
Channel unit dimensions	-
Width (nominal)	158 mm. 276 mm.
Depth (nominal)	198 mm. 106 mm. 176 mm.
Length	1000 mm.
Integral accessories	Ends caps. Bulkhead. Guidance for specification option: HDPE Black bulkhead. Allows the connection from 75 to 150 mm height.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Manufacturing plant location	Italy
Material	High density polyethylene (HDPE) Iron
Expected Life	Ten year
