Diamond Daylight Pipe for Flat Roofs
Verified by manufacturer 8 months ago
Polycarbonate dome sun tunnel for flat roofs.
Application
Roofing
Description

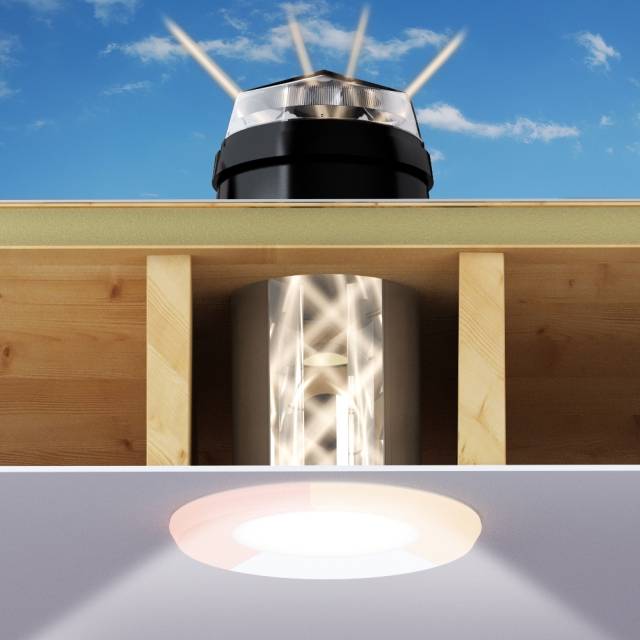

Daylight pipe suitable for flat felt, asphalt and membrane roofs. It comprises a clear polycarbonate diamond dome with UV inhibitors, complete with brushed nylon condensation gasket, super silver aluminium tube lining in 610 mm lengths, and a prismatic ceiling diffuser with white ceiling trim and 3-mm plywood. No structural alterations are required and it easily fits between joists and rafters.
Horizontal and basement applications are possible. No maintenance is required as top domes are self-cleaning.
Performance:
- Sustained 98% reflectance.
- Ten-year guarantee.
- 75% reduction in lighting costs.
- Lights up an area of up to 30 m².
- Thermal performance 1.39–1.80 W/m²K.
General information
Material | Acrylic Guidance for specification option: Dome. Aluminium Guidance for specification option: Pipe. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/495 Daylight pipes |
Specification data - Daylight pipes
Classification data | |
Diameter | 230 mm. 300 mm. 457 mm. 530 mm. |
Colour | Clear. Obscure. |
Upstand material | ABS. GRP. Galvanized steel. |
Materials | Acrylic. Guidance for specification option: Dome. Aluminium. Guidance for specification option: Pipe. Mcroprism. Guidance for specification option: Diffuser. |
Type | Flat Roof. Pitched slate roof. Pitched tile roof. Bold roll tile. Pitched slate gallery roof (vaulted ceiling). Pitched tile gallery roof (vaulted ceiling). Pitched bold roll gallery roof (vaulted ceiling). |
