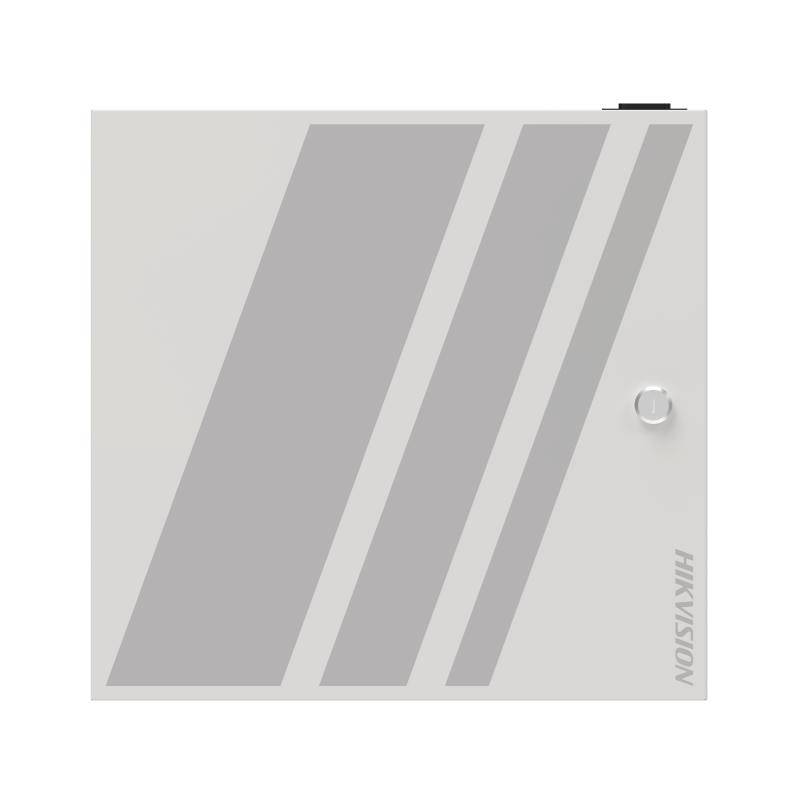

DS-K2702X Electronic Access Control - Door Controller - Access Controller
Verified by manufacturer 6 days ago
Web-configurable access controller supporting up to 126 doors with RS-485 connectivity and professional access control features.
Application
Suitable for controlling access in subways, airports, banks, large groups, and other industry projects requiring multi-door access control.
Description
The access controller supports web configuration, which requires no software installation on a PC. By connecting with access modules via RS-485, it can extend to control up to 126 doors, suitable for subways, airports, banks, large groups, and other industry projects.
Features and benefits:
- Supports two-door control and can extend up to 62 DS-K2M002X access modules (specified separately), controlling up to 126 doors.
- Downstream RS-485 redundancy wiring design ensures communication stability.
- Five channel downlink RS-485 interface supports dual applications for communication and redundancy.
- Web configuration management allows all configurations via web without software.
- Supports professional access control applications such as multi-door interlocking and anti-passback.
- Supports backup battery access with charging and discharging capabilities.
- Status indicators for power supply, communication, and operation facilitate equipment health detection.
- Supports 21 languages.
- Linux operating system.
- User capacity: 100 000.
General information
Color | Grey |
Finish | Smooth |
Material | Metal |
Shape | Rectangle |
Length | 88.3 mm Guidance for specification option: Depth. |
Width | 360 mm |
Height | 345 mm |
Uniclass |
SKU Code | DS-K2702X |
Sustainability data
Material | Metal |
Literature
DS-K2702X - Product Data Sheet
