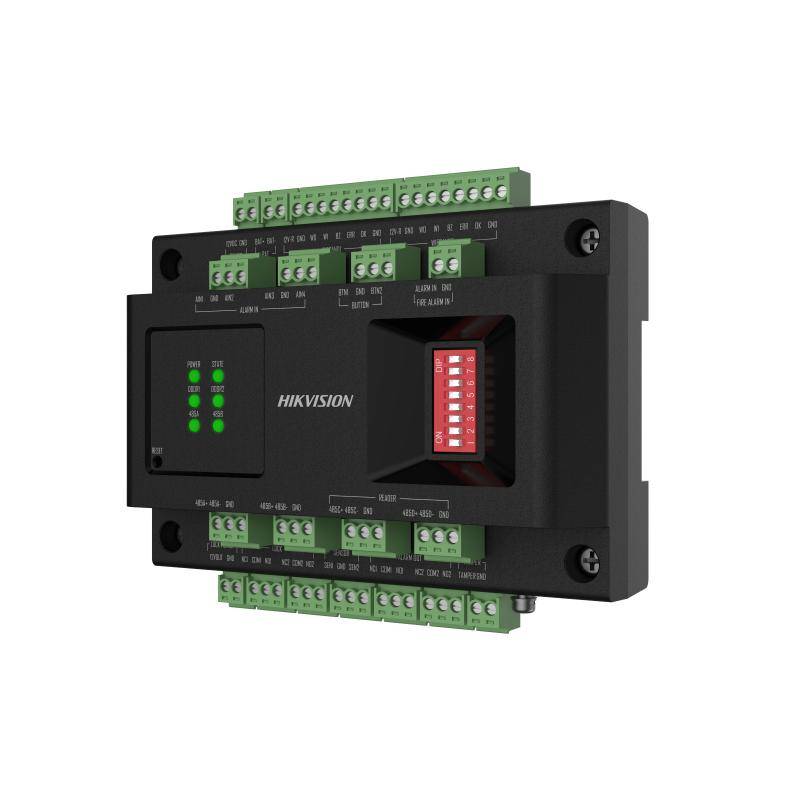

DS-K2M002X Electronic Access Control - Door Controller - Access Module
Verified by manufacturer 9 days ago
Access module for controlling two doors with RS-485 communication and card reader support.
Application
Used for controlling doors and communicating with access controllers in security systems. Supports card reader integration and system stability features.
Description
Access module used to control doors and communicate with access controller via RS-485. It also supports the card reader's single-point fault detection and redundant processing functions to ensure the stability of the system.
Features and benefits:
- Supports two-door control and connection with access controller via RS-485.
- Connects with card reader via RS-485 (OSDP) or Wiegand protocols.
- Supports battery charging and discharging.
- Supports indicators for power status, communication status, running status, and door status.
General information
Color | Black |
Material | Plastic |
Shape | Rectangle |
Length | 43 mm Guidance for specification option: Depth. |
Width | 124 mm |
Height | 103.9 mm Guidance for specification option: Overall. |
Uniclass |
SKU Code | DS-K2M002X |
Sustainability data
Material | Plastic |
Literature
DS-K2M002X - Product Data Sheet
