Ecophon acoustic Wall Panel for high impact sports halls

Name: Ecophon acoustic Wall Panel for high impact sports halls
Brand: Saint-Gobain Ecophon
SKU: fwPpqH5vSWwH22nhbZ6W6v

Verified by manufacturer 3 days ago

Saint-Gobain Ecophon

Product certifications:

M1 emission classification
Certificate type
EPD
Certificate type

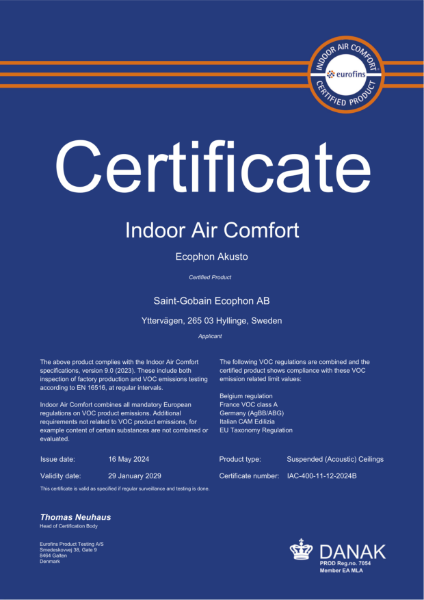

Indoor Air Comfort – Eurofins
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
EPD
Certificate type
European Technical Approvals
Certificate type

Acoustic wall panel system for sports halls.

Jump to:

+44 (0)1256 855208 Website

Application

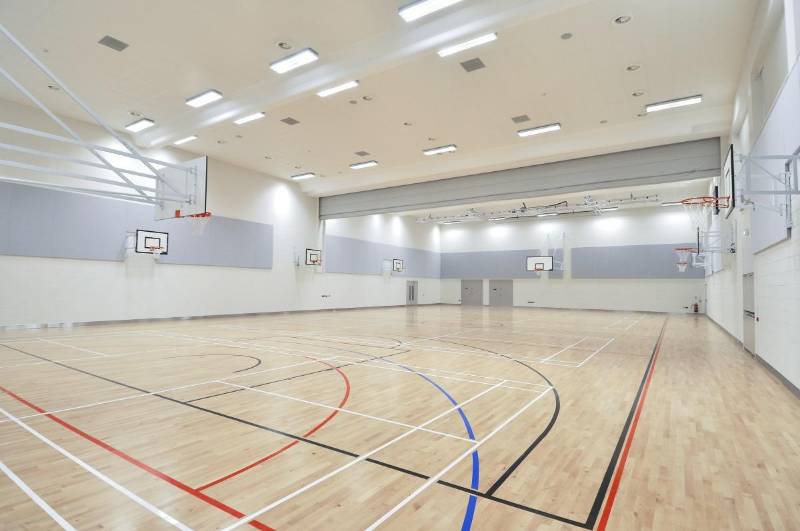

Suitable for high impact sports halls.

Description

Ecophon Akusto Wall C has a concealed grid and bevelled edge to create a narrow groove between each panel. Available in a variety of surface options. Excellent room acoustic properties are achieved when this wall absorber is paired with a sound absorbing ceiling.

Features and benefits:

Absorption class A.
Painted edges, front surface partly covering the long edges.
Stylish wall panel solution using several panels next to each other.

General information

Color	White
Finish	Woven Micro-textured Textured Other
Material	Glass mineral wool Fabric
Shape	Rectangle
Length	2700 mm
Width	600 mm
Height	40 mm
Warranty description	Ten year Manufacturer guidance All Ecophon installations can be warranted for ten years.

Uniclass	Ss_25_25_75_05 Acoustic panel lining systemsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining

SKU Code	Ecophon acoustic Wall Panel for high impact sports halls

Specification data - Acoustic panel lining systems

Battens	Heavy Duty Channel Trim. Guidance for specification option: Item number 26300320.
Acoustic insulation	Glass wool.
Panelling	-
Type	Individual panels.
Surface material	Super G. Guidance for specification option: A glass fibre fabric with high impact resistance.
Samples required	- Manufacturer guidance Insert requirements or omit.

Sound absorption	To EN ISO 11654, Class A.
Indoor climate	Eurofins Indoor Air Comfort® IAC. Certified as A by French VOC. Emission classification of building materials: M1.
Fire safety	To EN 13501-1, Class A2-s1,d0. Guidance for specification option: The glass wool core of the tiles is tested and classified as non-combustible according to EN ISO 1182.
Moisture resistance	Class C, relative humidity 95% and 30°C, according to EN 13964:2014.

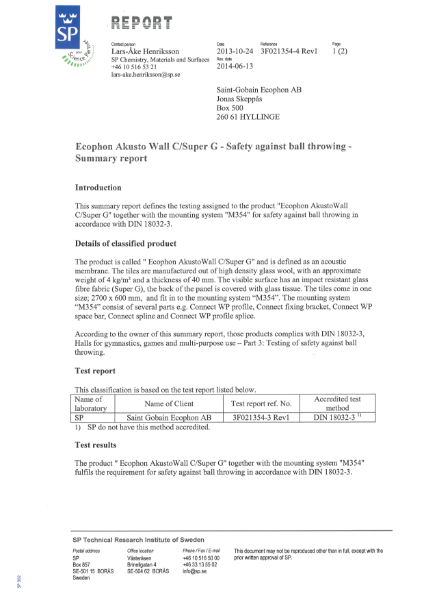

Impact resistance	To DIN 18032-3. Guidance for specification option: Tested and classified to fulfil the requirements of DIN 18032-3, equivalent to 1A according to EN 13964.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Glass mineral wool Fabric
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	8.69 kg CO₂ eq/m² Certified Guidance for specification option: Akusto Wall C/Super G.
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 %
Expected Life	50 year
