Eurowall® Cavity - Insulation
Verified by manufacturer 11 hours ago

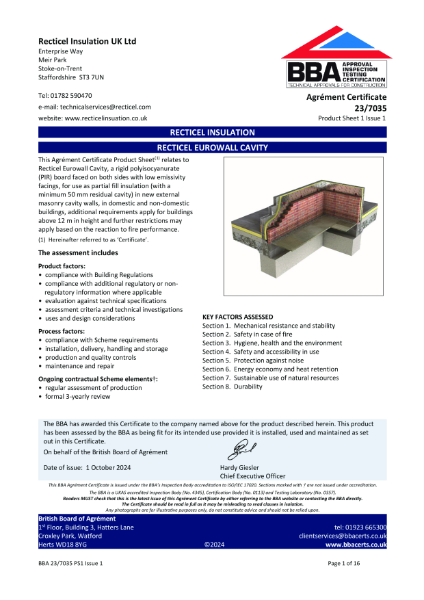

BBA Agrément Certificate
Certificate type
Rigid PIR insulation for partially filled masonry cavity walls.
Application
For partially filled masonry cavity walls.
Description

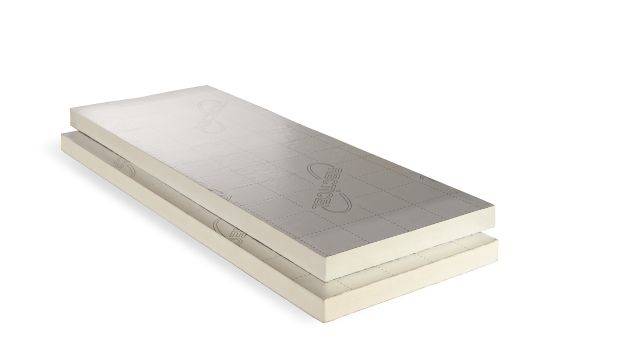

Eurowall Cavity is a high performance rigid polyisocyanurate (PIR) foam board for use in partially filled masonry cavity walls up to 25 m high. It is faced on both sides with a multi-layer coated aluminium foil.
Thermal bridging
With increasing levels of insulation it is important to ensure the continuity of insulation at the junction of elements, and around door and window openings.
Features and benefits:
- Manufactured to ISO 9001 Quality and ISO 14001 Environmental Management Systems.
- Manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP).
- Low thermal conductivity of 0.022 W/m·K.
- CE marked in accordance with harmonized European standard EN 13165.
General information
Color | White Silver |
Material | Polyisocyanurate (PIR) Guidance for specification option: Polyisocyanurate (PIR). |
Shape | Rectangle |
Length | 1200 mm |
Width | 450 mm |
Height | 50 mm 60 mm 70 mm 75 mm 80 mm Manufacturer guidanceOther thicknesses available on demand (subject to minimum order quantity) |
Uniclass | |
CAWS | F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Third-party certification | BBA certification. |
Fire performance | To EN 13501-1, Euroclass F.Guidance for specification option: Class 1 (BS 476-7). |
Thermal conductivity (maximum) | 0.022 W/m·K. |
Cross section | Uniform thickness. |
Thickness (nominal) | 40 mm.50 mm.60 mm.70 mm.75 mm.80 mm.90 mm.100 mm. |
Face size (length x width) | 1200 x 450 mm. |
Density | ± 30 kg/m³. |
Facing | Faced on both sides with a multi-layer coated aluminium foil. |
Edges | Straight edges on all four sides. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polyisocyanurate (PIR) Guidance for specification option: Polyisocyanurate (PIR). |
Third party certifications
Literature
Eurowall Cavity technical datasheet

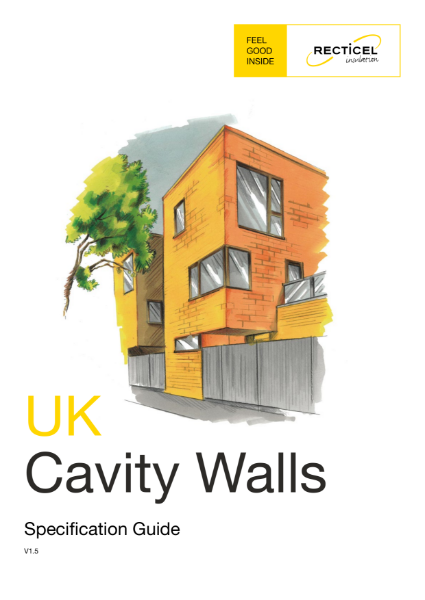

Recticel Insulation Cavity Wall Specification Guide V1.5
Recticel Insulation Product Guide
Case studies

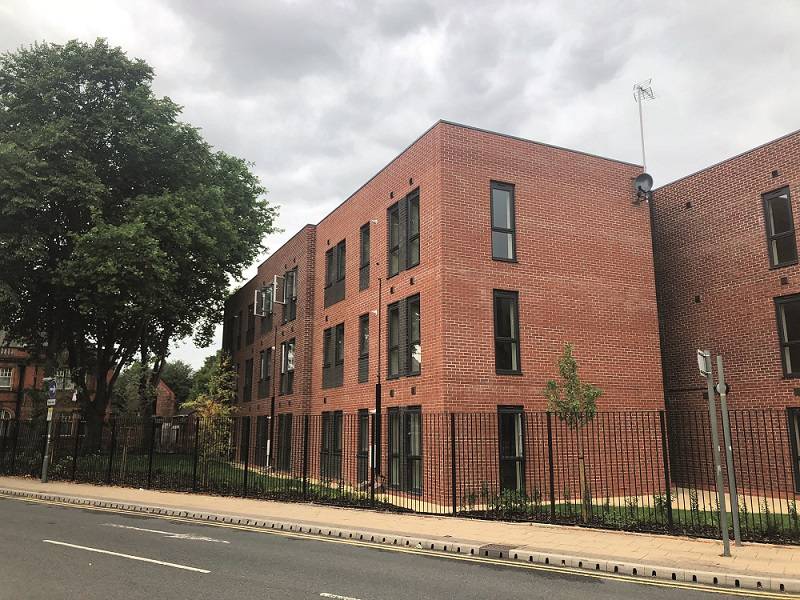

Recticel provides the quality insulation for two city-based social housing developments
