Extensive Green Roof Systems

Verified by manufacturer 6 days ago

Sedum Blanket

Sky Garden Variant:

A range of extensive green roof systems including; sedum blanket, wildflower blanket, wildflower seeded, sedum plugs, wildflower plugs and bio-diverse/ BNG. Designed and installed to GRO Guidelines.

Jump to:
01242 620905 Website

Application

A range of extensive green roof systems including; sedum blanket, wildflower blanket, wildflower seeded, sedum plugs, wildflower plugs and bio-diverse/ BNG. Designed and installed to GRO Guidelines.

  • Sedum Blanket is suitable for both new build and refurbishment green roof applications. Can be used on roof pitches up to 45° with retention required over 10°.

  • Wildflower Blanket is suitable for new build applications but generally too heavy for refurbishment. Can be used on roof pitches up to <15° without retention and irrigation; >15° requires retention and irrigation. Suitable for extensive, intensive, and podium green roof systems.

  • Wildflower Seeded is suitable for both new build and refurbishment projects. Roof pitches up to 15° can be greened; not sustainable over 15°.

  • Sedum Plug is suitable for both new build and refurbishment. Roof pitches up to 45° can be greened, but over 12° retention is required.

  • Wildflower Plug is suitable for new build green roofs, podiums and landscaping projects. Roof pitches up to 15° can be greened; over 15° retention and irrigation are required.

  • Bio-Diverse is suited to new build and refurbishment concrete decks and is the best option for biodiversity and BNG requirements. Suitable for extensive and semi-intensive green roof applications.

Description

All Sky Garden Green Roof Systems are designed and installed to GRO and FLL standards to ensure compliance.

We have a range of extensive green roof systems for commercial and domestic applications. The range includes: Sedum Blanket, Wildflower Blanket, Wildflower Seeded, Sedum Plugs, Wildflower Plugs and Bio-Diverse.

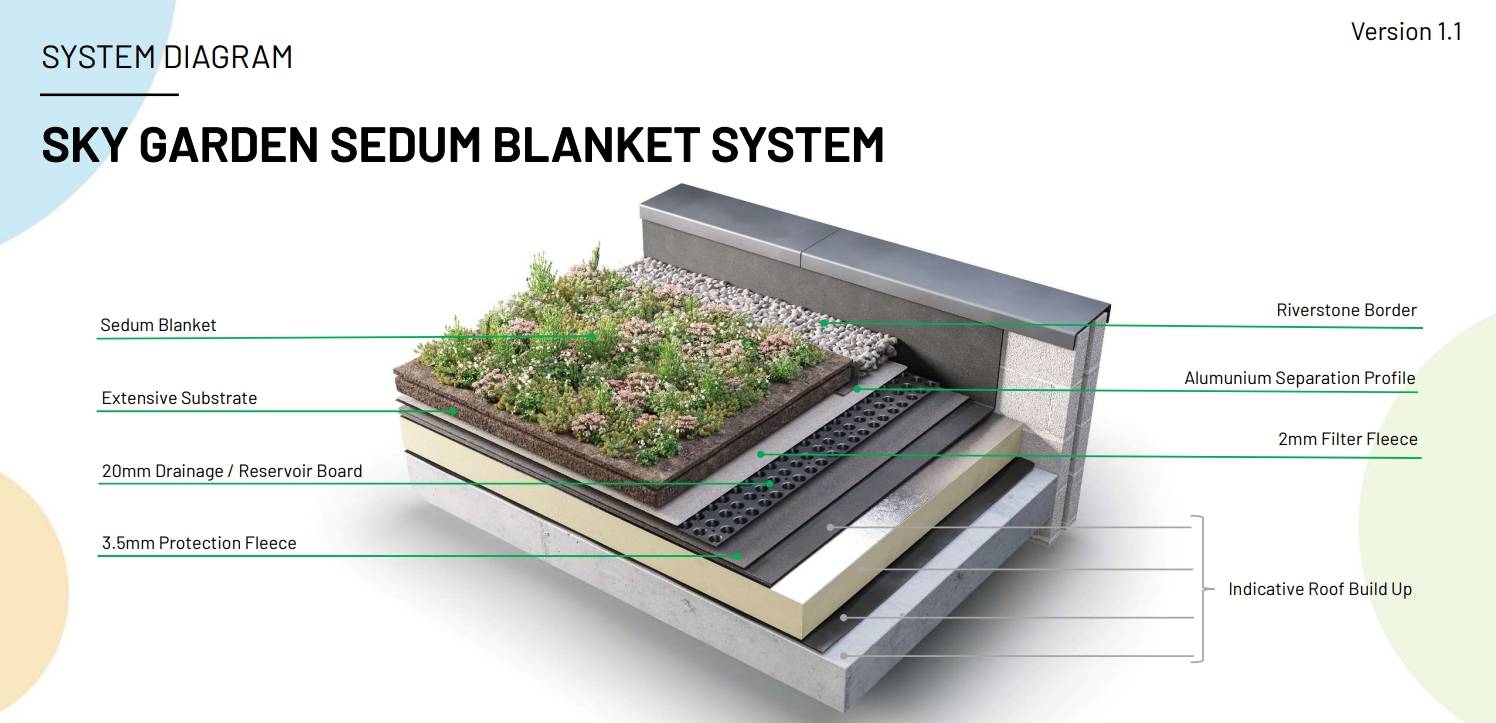

Sedum Blanket

Sky Garden's Sedum blanket system offers an extensive solution utilising a pre-grown sedum mat for instant impact. The blanket contains eight to twelve species of sedum. The sedum mats provide an instant green finish.

20mm Sky Garden Sedum Blanket SGSB01

60mm Sky Garden Extensive Substrate SBS01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 104.5mm

Indicative System Dry Weight - 67kg/m2

Indicative System Saturated Weight - 110kg/m2

Wildflower Blanket

Each wildflower blanket is sown with a seed mix of thirty-eight species of wildflower and grass. The species have been specifically chosen to survive roof conditions and increase biodiversity on extensive, intensive and podium systems.

20mm Sky Garden Wildflower Blanket SGWB01

100mm Sky Garden Extensive Substrate SBS01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 144.5mm

Indicative System Dry Weight - 67kg/m2

Indicative System Saturated Weight - 110kg/m2

Wildflower Seeded

Sky Garden's wildflower seed systems offer a cost-effective solution whilst still offering high biodiversity of species and aesthetic appeal once the system is fully established. The Sky Garden wildflower seed mix contains between 30 and 40 species of flowers and grasses to provide interest throughout the growing season.

Selected Species Mix:

3g/m2 Sky Garden Wildflower Seed Mix SGWS01

3g/m2 Sky Garden London Wildflower Seed Mix SGWS02

3g/m2 Sky Garden Jersey Wildflower Seed Mix SGWS03

4g/m2 Sky Garden Bio-Solar Seed Mix BSWS01

5g/m2 Sky Garden Calcareous Grassland Seed Mix SGCS01

100-120mm Sky Garden Biodiverse Substrate BD01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 144.5mm

Indicative System Dry Weight - 98kg/m2

Indicative System Saturated Weight - 126kg/m2

Sedum Plugs

Pre-cultivated propagated plugs, planted directly into the substrate growing medium. These succulent plants are drought, wind and frost tolerant and will steadily colonise the roof area providing an even vegetative cover over time.

20 per m2 Sky Garden Sedum Plugs SGSP01

80mm Sky Garden Biodiverse Substrate BD01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 124.5mm

Indicative System Dry Weight - 79kg/m2

Indicative System Saturated Weight - 102kg/m2

Wildflower Plugs

Pre-cultivated propagated plug-plants planted directly into the substrate. The biodiverse plug-plants are seeded and grown with a wide range of native wildflower species suited to the Green Roof environment. Installed and maintained correctly, plants will colonise the roof area.

20 per m2 Sky Garden Wildflower Plugs SGWP01

100mm Sky Garden Biodiverse Substrate BD01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 144.5mm

Indicative System Dry Weight - 98kg/m2

Indicative System Saturated Weight - 128kg/m2

Bio-Diverse

Locally sourced and site blended bio-diverse system seeded with regional bio-diverse seed mixes. UK provenance species and locally sourced screened products. Bio-diverse seed mix is a blend of grass, herbs, wildflower, cornflower, alpines and perennial plants. The substrate should contour between 80-150mm to provide natural texture to promote biodiversity. To increase BNG, habitats can also be added; log, sand, and stone piles, small ponds too.

Selected Species Mix:

3g/m2 Sky Garden Wildflower Seed Mix SGWS01

3g/m2 Sky Garden London Wildflower Seed Mix SGWS02

3g/m2 Sky Garden Jersey Wildflower Seed Mix SGWS03

4g/m2 Sky Garden Bio-Solar Seed Mix BSWS01

5g/m2 Sky Garden Calcareous Grassland Seed Mix SGCS01

15 per m2 Sky Garden Wildflower Plugs SGWP01

5 per m2 Sky Garden Sedum Plugs SGSP01

80-150mm Sky Garden Biodiverse Substrate BD01

21mm Drainage Reservoir Board with Pre-Bonded Filter Fleece DDRD20-1

3.5mm Non-Woven Geotextile Protection Fleece PF01

Indicative Build-up Height - 194.5mm

Indicative System Dry Weight - 127kg/m2

Indicative System Saturated Weight - 164kg/m2

General information

Color

Green

Brown

Blue

Finish

Natural

Material

Composite

Soil

Vegetation

Shape

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Uniclass

Ss_45_40_47_28 Extensive green roof systemsPrimary

CAWS

Q37/130 Extensive green roofs and biodiverse roofs

SKU Code

SGSBS01

Specification data - Extensive green roof systems

Classification data

Protection

-

Protection layer

3.5 mm Sky Garden non-woven geotextile protection fleece (PF01).

Guidance for specification option:

  • For use on warm roofs, cold roofs, green roofs and podiums.
  • A thick needle-punched non-woven geotextile manufactured from a blend of high tenancy fibres.
  • Optimised for maximum strength, performance and UV stability.
  • 100% virgin polypropylene.
  • Supplied in 50 x 1 m rolls weighing 14 kg.
  • Installed on top of the completed waterproofing (not needed for inverted roofs, as the protection fleece is replaced by a water flow control layer). Installed with 100 mm laps. To be kept clear of drainage and outlets.

Moisture control

-

Drainage layer

21 mm Sky Garden Drainage Reservoir Board With Pre-Bonded Filter Fleece (DDRD20-1).

Guidance for specification option:

  • Rigid drainage board manufactured from HDPE.
  • Combined function as a water-retention, drainage and filtration layer.
  • Rigid sheet with integrated polypropylene filter layer.
  • Studded HDPE sheets contains perforations to drain surplus water and high-capacity dimples (height c.20 mm) for water retention.
  • High compressive strength (115 kPa).
  • Delivery and installation according to Sky Garden instructions.
  • Product arrives in 48.5 m² size rolls.

Filter membrane

-

Manufacturer guidance

The geosynthetic filtration fleece is pre-bonded to the drainage reservoir board (DDRD20-1).

Planting systems

-

Planting medium

60 mm Sky Garden Extensive Substrate (SBS01).

Guidance for specification option:

  • A free draining, low nutrient and moisture retentive growing medium made from 100% recycled material in line with the UK Green Roof Code of best practice.
  • Testing conforms within the BS 8616:2019 green roof substrate testing methods and was completed by STRI.
  • Minimum recommended depth: 60 mm.
  • Free draining when saturated.
  • Allows root penetration.
  • Recycled content.
  • Organic material.
  • PAS100 certified.
  • Product arrives in 1 tonne bags or 25 kg sacks.

Planting requirements

20 mm Sky Garden Sedum Blanket (SGSB01).

Guidance for specification option:

Sedum Blanket, grown in the UK, to provide low maintenance solution for extensive green roof systems using a carefully selected mix of sedum species. Sedum is the most commonly used plant species in green roofing due to its ability to grow in harsh weather environments.

Fire breaks

20–40 mm Sky Garden Riverstone (RS01).

Guidance for specification option:

  • In accordance with GRO guidelines, the riverstone borders should be 20/ 40 mm washed rounded gravel and 75 mm deep.
  • Minimum width of 300 mm, against parapets, protrusions and penetrations (non-opening).
  • Minimum width of 500 mm, against vertical walls that have opening windows or doors.
  • Minimum width of 500 mm also for abutments with opening rooflights.
  • Every 40 m, a 1 m wide x 75 mm deep, 20/ 40 mm washed rounded gravel fire break should be installed across the width of the roof.

Edge restraints

Aluminum Separation Profile 80 x 100 mm (AE100).

Guidance for specification option:

  • For use on exposed system edges and as a separation between vegetation and riverstone to maintain the integrity of the green roof system.
  • The aluminium edging is lightweight, robust and can be cut to length, with slots cut into the edging for drainage requirements.
  • The profile should be installed to sit on top of the drainage reservoir board.
  • It can be loosely laid and ballasted in place, but it is recommended to be glued in place. Adhesive is available from the manufacturer.
  • Sky Garden Ltd recommends that any adhesive used be checked with the waterproof membrane manufacturer before use.

System accessories

Not required.
Irrigation.

Guidance for specification option:

Recommended for establishment and periods of drought.

Habitat creation - log, rock and sand piles.

Weight

Indicative system dry weight: 67 kg/m²; Indicative system saturated weight:110 kg/m².

Manufacturer guidance

Indicative build-up height - 104.5 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Composite
Soil
Vegetation

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

Expected Life

Lifetime
