Flatscreen - Flat Panelled Screen

Name: Flatscreen - Flat Panelled Screen
Brand: Configured Platforms Ltd
SKU: cRwSuVoSNeS7iW4Yb23mnN

Verified by manufacturer 3 days ago

Aesthetic screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.

Jump to:

Application

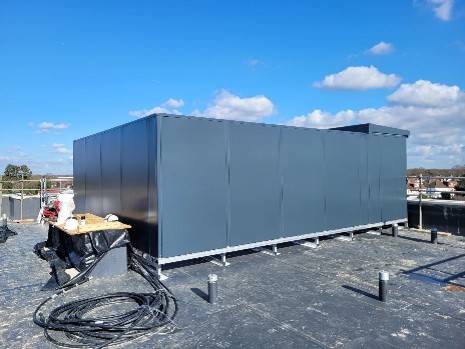

To screen off plant and equipment from view on Series 1, 2, 3 Platforms and Speedscreen.

Aesthetic flat panelled screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.

Features and benefits:

Clean straight lines for a tidy look.
Flush finish panel with colour-matched top channel and screen posts.
All aluminium components with stainless steel fixings.
Screen area 8.5 kg/m² (not including added acoustic elements).
Provides a complete visual block.
Peacemaker acoustic panels can be added to provide an effective sound absorber to the internal face.

Color	Grey Other
Finish	Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Panels.
Material	Aluminium Guidance for specification option: Extruded aluminium structure, aluminium sheet panels. Stainless steel Guidance for specification option: Fixings.
Shape	Square Guidance for specification option: Posts. Rectangle Guidance for specification option: Panels.
Length	Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter.
Height	Bespoke Guidance for specification option: In 400 mm increments above the walking surface.
Warranty description	20 year

Uniclass	Pr_25_71_14_07 Aluminium external panelsPrimary
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Size (l x w x d)	- Manufacturer guidance Any size in 600 mm increments in length around the perimeter and 400 mm increments in height above the walking surface. Insert requirements or refer to a drawing.
Material	Aluminium.
Colour/ Finish	Powder-coated, RAL. Guidance for specification option: To suit project requirement - available in any RAL colour. Insert requirements.
Construction	Stainless steel bolted and screwed construction.
Accessories	Not required. Self closing door. Double doors.

Material	Aluminium Guidance for specification option: Extruded aluminium structure, aluminium sheet panels. Stainless steel Guidance for specification option: Fixings.
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	10 kg CO₂ eq/kg
Declared unit	10 kg CO₂ eq/kg Self-declared
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
