Standard Screen - Slatted Screen
Verified by manufacturer 3 days ago
Aesthetic screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.
Application
To screen off plant and equipment from view on Series 1, 2, 3 Platforms and Speedscreen.
Description

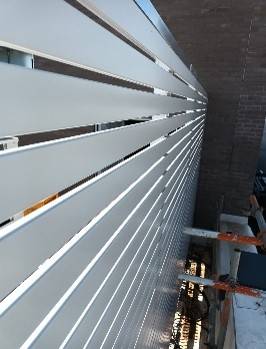

Aesthetic slatted screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.
Features and benefits:
- Clean straight lines for a tidy look.
- Modern horizontal straight lines.
- All aluminium components with stainless steel fixings.
- Screen area 7 kg/m² (not including added acoustic elements).
- Provides 20% free area.
- All acoustic add-ons available can be used in conjunction with Standard Screen.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Slats. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
Shape | Square Guidance for specification option: Posts. Rectangle Guidance for specification option: Slats. |
Length | Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter. |
Height | Bespoke Guidance for specification option: In 400 mm increments above the walking surface. |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Aluminium external panels
Size (l x w x d) | Manufacturer guidanceAny size in 600 mm increments in length around the perimeter and 400 mm increments in height above the walking surface. Insert requirements or refer to a drawing. |
Material | Aluminium. |
Colour/ Finish | Frame: Mill finish; Slats: Powder-coated, RAL. Guidance for specification option: To suit project requirement - available in any RAL colour. Insert requirements. |
Construction | Stainless steel bolted and screwed construction. |
Size of slat | 65 x 16 mm rectangular hollow section. |
Slat orientation | Horizontal. Guidance for specification option: With 15 mm gap between slats. |
Accessories | Not required. Self closing door. Double doors. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 10 kg CO₂ eq/kg |
Declared unit | 10 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
