FlipFix - Plasterboard Access Panel - Non Fire Rated - Access Panel
Verified by manufacturer 2 months ago

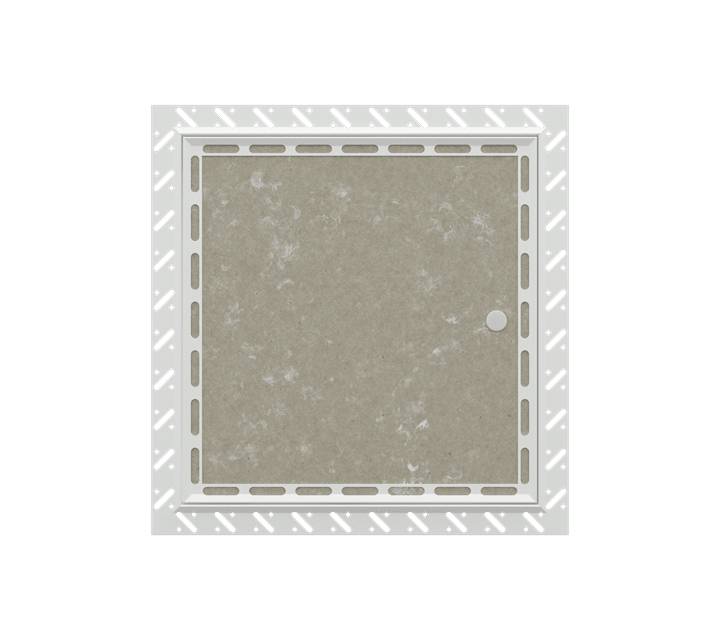

Access Panel with a Plasterboard Infill for Ceilings, Beaded Frame, Budget Lock.
Application
Suitable for use in jointless plasterboard ceiling systems.
Description
This panel is designed to fit into a structural membrane of a jointless plasterboard ceiling system. It is manufactured with a beaded frame for tape and joining or skim coat plastering. The panel has a plasterboard faced door for tape and jointing or skim coat plastering. The door leaf is locked in place via a budget lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request. This panel is for inspection use only and is not suitable for personnel access
Features and benefits:
- Manufactured from Zintec steel with a 0.9 mm thick door and frame.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plasterboard |
Shape | Square Rectangle |
Width | 150 mm 200 mm 300 mm 450 mm 550 mm |
Height | 150 mm 200 mm 300 mm 450 mm 550 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Ceiling-mounted. |
Size | 150 x 150 mm.200 x 200 mm.300 x 300 mm.450 x 450 mm.550 x 550 mm.600 x 300 mm.600 x 600 mm.Bespoke.Guidance for specification option: This product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 600 x 600 mm (maximum). The average lead time is 3–5 working days. Insert requirements. |
Frame | Bead for taping and jointing or skim coat plastering. |
Panel | |
Material | Steel with plasterboard infill. |
Integral finish | Powder-coated. |
Latch or lock type | Low level security budget lock.Touch catch.High level security castellated tamper proof lock. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Datasheet - FlipFix Plasterboard Door - None Fire Rated
Product Page - FF Plasterboard Door Range
