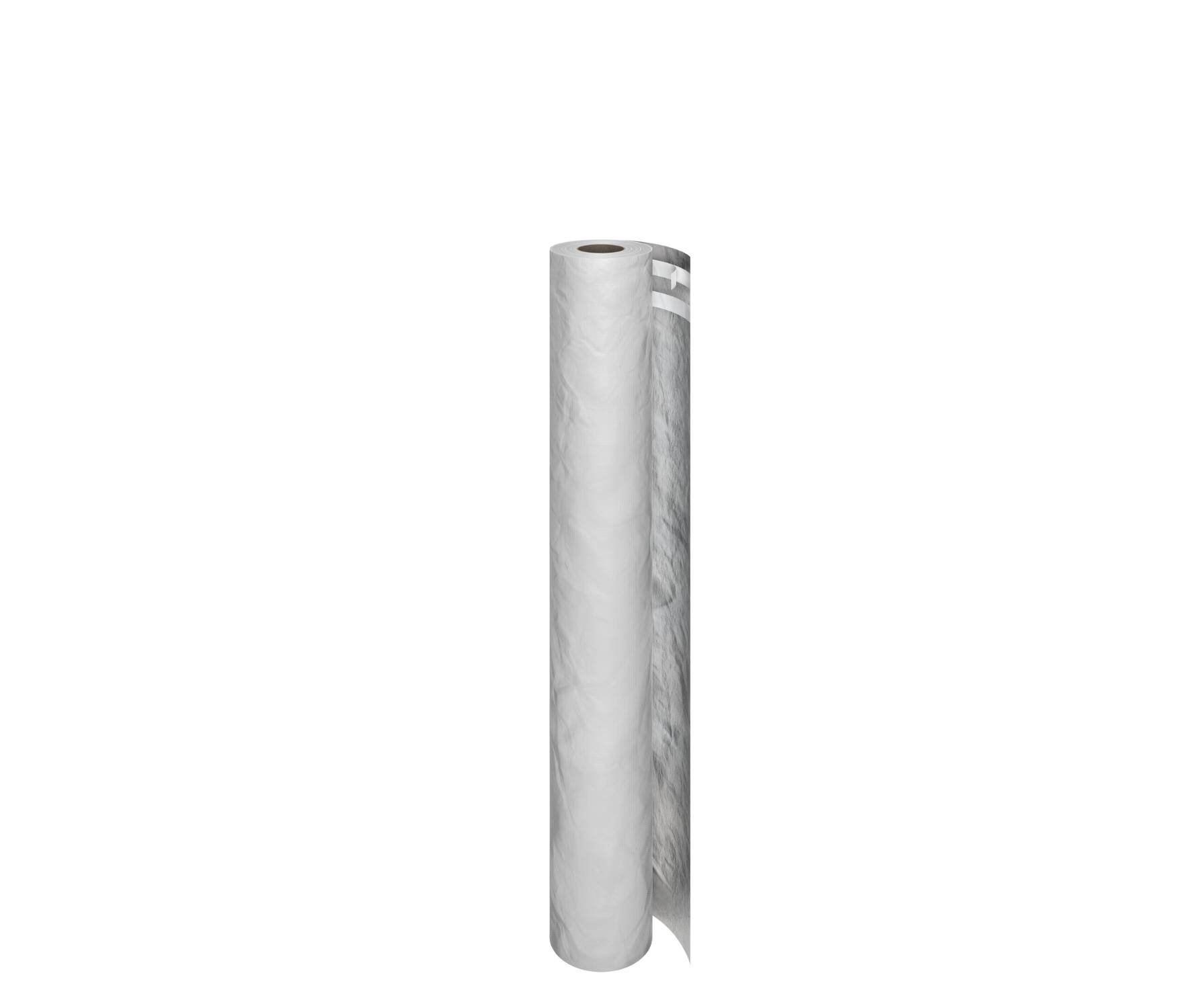

FR Breather Membrane ALU (ME050) - Breather Membrane
Verified by manufacturer 6 months ago
A permanently UV-stable highly reflective air and water-tight breather membrane to provide protection to the built-up wall layers in a closed or partially open façade.
Application
ME050 is suitable for:
- Use in new builds and in refurbishment projects.
- Application within high rise buildings, open claddings, timber frame construction, public buildings and off-site construction.
ME050 can be applied over non-combustible insulation or more typically directly over sheathing boards or other substrates with a reaction to fire of at least Class A2-s1,d0. The overlapping seams and perimeter edges are sealed with illbruck ME355 FR Sealing Tape. In addition, illbruck SP025 Fire Membrane Adhesive may also be used to provide an enhanced air and water-tight connection to adjacent walls and floor junctions in certain complex details.
Description
illbruck ME050 FR Breather Membrane is a monolithic reflective air, watertight and UV stable Aluminium foil-faced and glass fibre reinforced breather membrane that achieves a Class A2-s1,d0 Reaction to Fire according to BS EN 13501-1. ME050 is highly suited to applications in buildings that have been classified as "Relevant Buildings" as defined in Approved Document B, April 2019. Often used in conjunction with other illbruck slit-to-width interface sealing membranes at window and door openings or other linear joints to provide fully compatible and integrated building protection wrap around the external backing wall in a framed and sheathed construction.
Features and benefits:
- Easy to cut and install.
- Permanently UV-resistant behind partly opened facades or 9 months prior to cladding.
- Wind and driving rain resistant.
- High temperature resistance.
- W1 water resistance.
- Classified as a breather membrane with an Sd value of 0.08 m.
- Highly airtight - Passiv Haus standards can be achieved.
- Class A2-s1, d0 Reaction to Fire according to BS EN 13501-1.
- Supplied on rolls of 1.2 x 50 m.
General information
Color | Silver |
Finish | Reflective Sheen |
Material | Glass Fibre Foil |
Shape | Formless Rectangle |
Length | 50000 mm |
Width | 1200 mm |
Height | 0.43 mm Manufacturer guidanceMembrane thickness. |
Warranty description | Other Guidance for specification option: Any product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge. |
Uniclass | |
CAWS | H92/785 Breather membrane P10/320 Breather membrane P10/65 Breather membrane |
Specification data - Vapour-permeable sheets
Standard | To BS EN 13859-2. |
Performance criteria | |
Water vapour properties | Water vapour resistance to BS EN ISO 12572; 0.44 MN. s/g. |
Fire performance | Reaction to fire: To BS EN 13501-1, Class A2-s1, d0. |
Tensile properties | Tensile strength to BS EN 12311-1, 3000 N/50 mm, ± 400 (longitudinal); 3200 N/50 mm, ± 400 (transverse). |
Class (minimum) | W1.Guidance for specification option: Tested in accordance with BS EN 1928. Manufacturer guidanceResistance to water penetration to BS EN 13859-2. |
Material | Laminated aluminium foil, functional film and glass fibre textile. |
Form | Micro-perforated (needle-punched). |
Thickness (minimum) | 0.43 mm. |
Reflective face | Required. |
Execution | Manufacturer guidanceillbruck ME050 FR Breather Membrane (Alu) A2,W1 is unfurled and applied directly from the log to the substrates. The membrane is secured with tape to the structure and overlapping seams to create a homogenous and continuous protection layer. Applications should start from the bottom of the building and work upwards overlapping subsequent horizontal and vertical layers by a minimum of 100 mm. Perimeters and overlapping seams are sealed with illbruck ME355 FR Sealing & Joining Tape A2 or other tape specified by illbruck. Some details e.g. floor junction or solid walls may require the use of illbruck SP025 Fire Membrane Adhesive in addition to the illbruck ME355 FR Sealing & Joining Tape A2. |
Colour | Silver (reflective). |
Reflectivity | To EN 16012, 95%. |
Elongation at break (to BS EN 12311-1) | 6%, ± 2 (longitudinal); 5%, ± 2 (transverse). |
Tear resistance (to BS EN 12310-1) | 580 N, ± 75 (longitudinal); 450 N, ± 75 (transverse). |
Air permeability | To EN 13859 (Test Method EN 12114), 0.093 m³/(hr x m² x 50 Pa). |
Water vapour permeability | To EN 12572, 235. Manufacturer guidanceWater Vapour Permeability (µ). |
Water vapour permeability in SD | To EN 12572, 0.08 m. |
UV resistance | To EN 13859-2 (5000 hours), 9 months without cladding. |
Application temperature | +5°C to +40°C. |
Service temperature | -36°C to +90°C. |
Sustainability data
Country of material origin | France |
Country of product manufacture | France |
