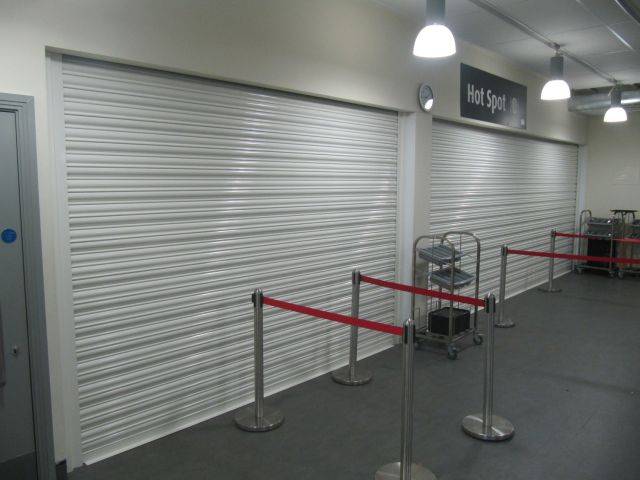

FS60 Fire Shutter

Verified by manufacturer 2 months ago

Roché Systems Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Exova Warrington fire approved single skin steel roller shutter providing 60 minutes fire protection.

Jump to:
BOS
03330347967 Website

Application

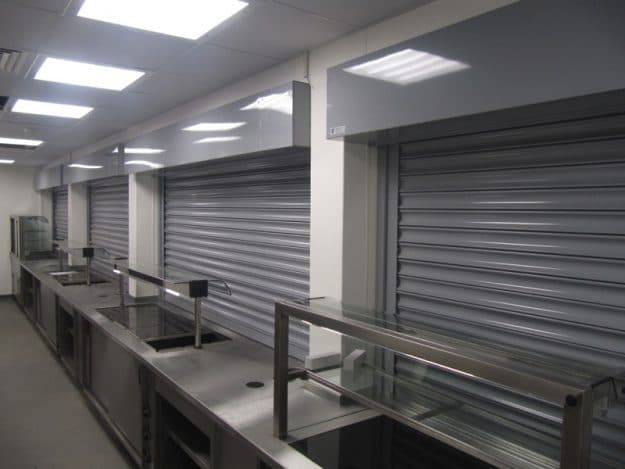

Windows, doors and openings in kitchen servery areas, schools, hospitals and offices.

Description

Fire rated single skin steel roller shutter with 76 mm high slats. FS fire shutter has been successfully tested at Exova Warringtonfire under BS EN 1634-1 test conditions and assessed to BS EN 476-22. The optional interface panel connects the shutter to a fire alarm system and the event of fire detection, the shutter automatically descends in a controlled manner to protect adjacent areas. The shutter can span up to 12 m in width and an area up to 50 m².


Features and benefits:

  • Tested at Exova Warringtonfire under BS EN 1634-1 test conditions and compliant with BS EN 16034:2014.
  • Available up to up to 12 m in width and covers an area up to 50 m².
  • Optional interface panel connects the shutter to a fire alarm system and in the event of fire detection automatically descends.
  • Fire rated single skin steel roller shutter with 76 mm high slats providing 1 hour fire protection.


General information

Color

-

Manufacturer guidance

Galvanized finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). Consult manufacturer and insert requirements.

Finish

Galvanized

Plastisol

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Fire Protection

Specification data - Roller shutters

Opening sizes

12 000 x 4600 mm.

Guidance for specification option:

Available up to 12000 x 4600 mm (w x h).

Manufacturer guidance

Enclosure size (internal face fix):

Dependent on height.

  • <2200 mm: 305 mm.
  • 2200–3650 mm: 355 mm.
  • 3650–4600 mm: 400 mm.


Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

Single skin curved steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width.

Profile

-

Manufacturer guidance

76 mm.

Finish and colour

Galvanized.

Guidance for specification option:

Standard.

Plastisol coated, BS.

Guidance for specification option:

Insert colour requirement.

Plastisol coated, RAL.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, BS.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, RAL.

Guidance for specification option:

Insert colour requirement.

Frame and guides

-

Material

Enclosure: Roll-formed steel housing and end plates. A barrel support frame at the centre of the housing may be required in some applications. Guide channels: Steel, bolted to fixing angles or steel box sections dependent on the application. Bottom slat: T-shaped steel.

Finish

Galvanized.

Guidance for specification option:

Standard.

Polyester powder coated, BS.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, RAL.

Guidance for specification option:

Insert colour requirement.

Operation

-

Mode

GfA three phase motor with push button control.

NRG Economy tubular motor with internal rocker or external key switch.

Manufacturer guidance

Numerous control option variants such as group, remote or mobile phone activation are available.

Control

Push button.

Key switch.

Accessories

None.

Crank handle.

Manual override facility.

Interface panel.

Fire resistance

One hour.

Weight

9–16 kg/m².

Guide channel depth

65 mm.

75 mm.

100 mm.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

DWG
-

1

Third party certifications

QA Certificate

QA Certificate

Exova Warringtonfire FS60/120/240
