GypLyner Independent - B216025 (E) (EN)

Name: GypLyner Independent - B216025 (E) (EN)
Brand: British Gypsum
SKU: qTF6QwzSMwZVyrZq9FvpUD

Verified by manufacturer 7 months ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

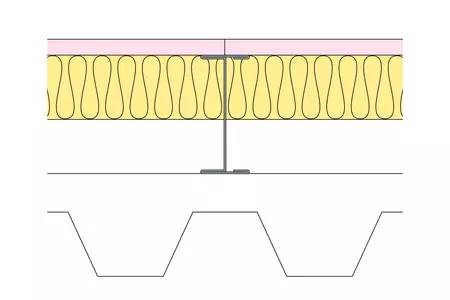

One layer of Gyproc FireLine 12.5mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.

General information

Finish	- Manufacturer guidance To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Height	4000 mm

Uniclass	Ss_25_25_45_35 Gypsum board wall lining systemsPrimary
CAWS	K10/155 Wall lining system (metal studs) K10/30 Metal stud

Product range	Wall linings / GypLyner Independent

Specification data - Gypsum board wall lining systems

Support	Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 I 90 'I' Stud. Abutments and openings: Gypframe 92 S 50 'C' Stud.
Insulation	Insulation, Layer 1: 50mm Isover Steel Frame Infill Batt.
Linings	Board side 1, Layer 1: Gyproc FireLine 12.5mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Jack-Point Screws 25mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'.
Finish	To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.
System accessories	Sealant: Gyproc Sealant. Thermal sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/wall-linings/GypLyner-Independent/B216025-E-EN#details

Fire resistance	BS EN 1364-1, 60 / 30 Integrity / Insulation
Strength grade	BS 5234-2, Medium duty (MD)
Partition height	4000mm
Background	Background: Steel Clad External Wall
