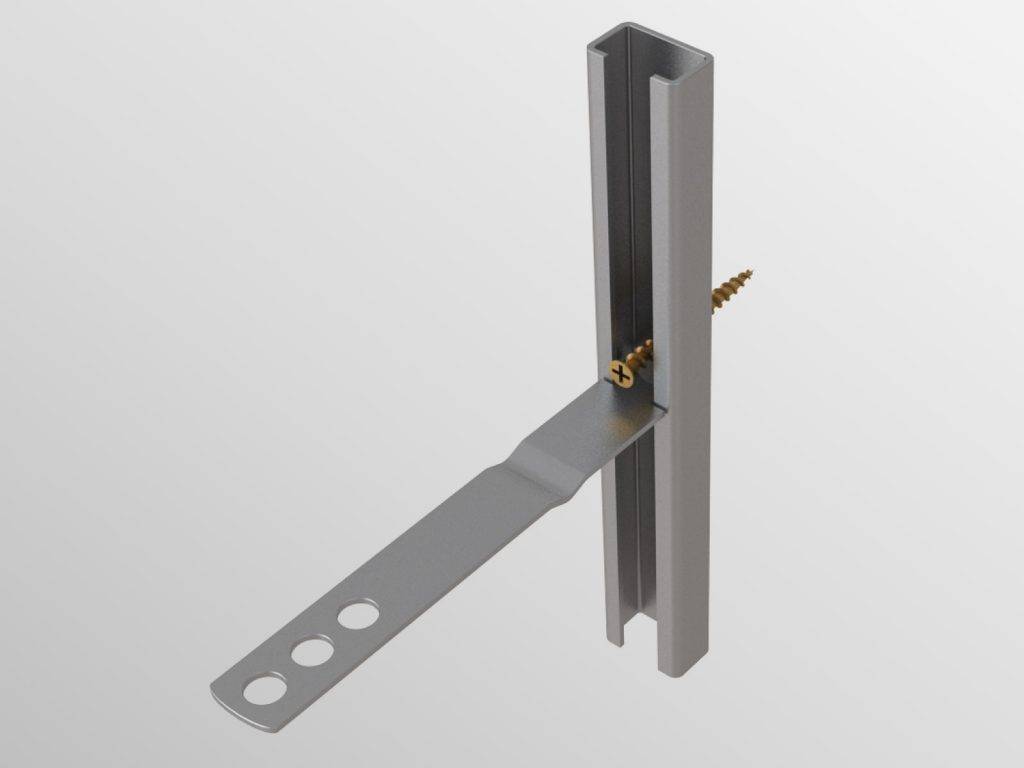

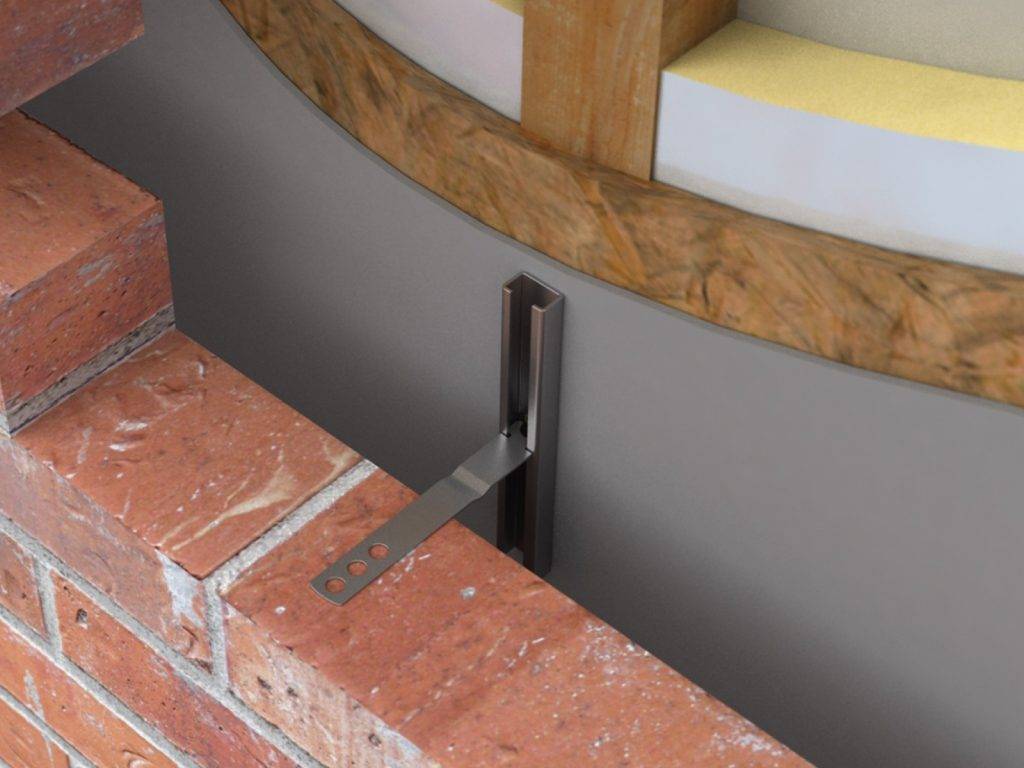

High Movement Timber Frame Ties - Type 7 - V62

Name: High Movement Timber Frame Ties - Type 7 - V62
Brand: Vista Engineering Ltd
SKU: tizaSeWVRecjiwSLUdUmj6

Verified by manufacturer 14 days ago

100 mm-long, for 50 mm cavities

Vista Engineering Ltd

Third party certifications:

ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

Type 7 channel and strip tie system for use where the building height is up to 18 m (five to seven stories).

Jump to:

+44 (0)1663 736700 Website

Application

For use in domestic dwellings and small commercial buildings from five to seven storeys high.

Description

Type 7 channel and strip tie system for use where the building height is up to 18 m (five to seven stories).

Features and benefits:

This type of timber frame wall tie is right for domestic dwellings and small commercial buildings from five to seven storeys high.
They are suitable for buildings with a maximum height if 18 m. Their suitability should be calculated for each location and the Vista technical team can be consulted for advice.
Maximum differential movement of 65mm.
Manufactured from grade 304 stainless steel.
Non combustible (as defined in the national Building Regulations).
Excellent corrosion resistance and a service life of not less than 60 years.
In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
Tested as Type B (sound) and as Type 7 (strength) to BS EN 845-1.
Fits cavities from 50–150 mm.
Supplied with 50 x 4 mm stainless steel screws, and in boxes of 250.

General information

Color	Silver
Material	Stainless steel Guidance for specification option: Grade 304.
Length	100 mm 125 mm 150 mm 175 mm 200 mm

Uniclass	Pr_20_85_84_19 Cavity wall tiesPrimary
CAWS	F30/25 Cavity wall ties used with partial fill insulation F30/24 Cavity wall ties F30/26 Wall ties F30/214 Cavity wall ties F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties

Specification data - Cavity wall ties

Standard	To BS EN 845-1.
Tie type	Type 7 (strength) to BS EN 845-1. Guidance for specification option: Channel and strip tie system for use where the building height is up to 18 m (five to seven stories).
Material	Grade 304 stainless steel.
Length	100 mm. Guidance for specification option: Cavity: 50 mm. Manufacturer guidance Supplied in boxes of 250.
End types	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Design embedment length (minimum)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Movement	Tolerant. Guidance for specification option: Maximum differential movement of 65 mm.
Additional requirements	-
Mortar joint thickness (minimum)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Resistance to water crossing cavity	Resistant (drip feature).
Slope tolerance	Manufacturer's standard.
Compressive load capacity	Mean load capacity, as received: 1510 N. Guidance for specification option: 70% mean compression: 1057 N. Lowest individual compression: 1300 N. Values are identical when allowing for timber shrinkage.
Tensile load capacity	Mean load capacity, as received: 2340 N. Guidance for specification option: 70% mean tension: 1638 N. Lowest individual tension: 1810 N. Allowing for timber shrinkage: Mean load capacity: 1820 N. 70% mean tension: 1274 N. Lowest individual tension: 1260 N.
Dynamic stiffness	Type B.
Tie-mounted insulation retaining clips	ECO-clips. Not required.

Third party accreditation	UKCA marked.
Fixing	Guidance for specification option: For masonry end; insert requirements.
Integral accessories	50 x 4.0 mm stainless steel screws.
Cavity	50 mm.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
