Kinetics Elastomeric Isolators NP, NG - Elastomer Isolation Pads
Verified by manufacturer 4 days ago
NGS Neoprene Pad - 45 mm Durometer
NGS Neoprene Pad - 45 mm Durometer
Ribbed pads to isolate noise and vibrations generated by mechanical equipment and machinery.
Application

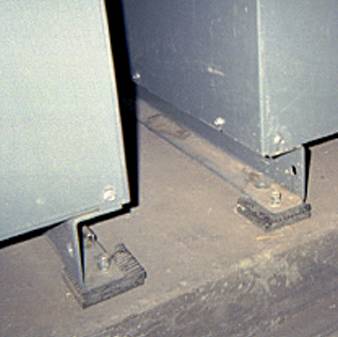

Suitable for applications involving the isolation of noise, shock, and high-frequency vibration generated by mechanical equipment and industrial machinery located on a grade-supported structural slab.
Description

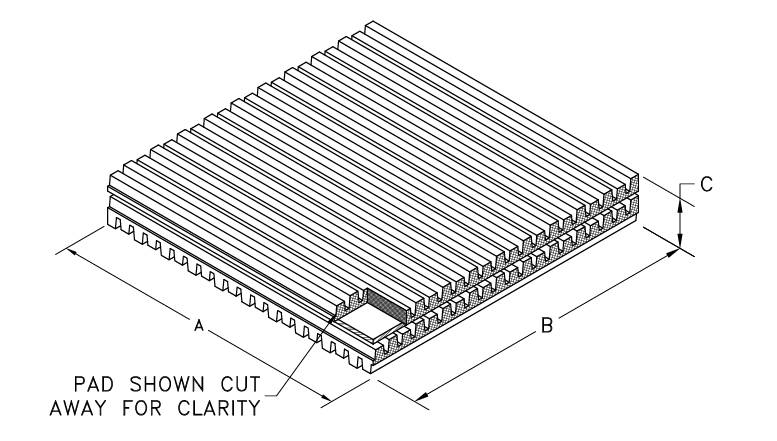

Kinetics Elastomeric Isolators are manufactured from a high-quality elastomer and are available in single-ribbed or crossed double-ribbed configurations, in one or more layers separated by steel shims. The elastomer is resistant to oil and water.
Model NP and NG Pads are designed to isolate noise, shock, and high-frequency vibration generated by mechanical, industrial, or process equipment installed on grade or in other non-critical areas.
Features and benefits:
- Made from high-quality elastomer.
- Available in four different isolation pad types, in one or more layered configurations.
- Offered in various dimensions and weight depending on the pad types.
- Single and double ribbed neoprene pads.
- Combination of ribbed pads and steel shims.
- Alternating high and low ribs allow for maximum deflection.
- True elastomer-in-shear loading capacities from 4.2 or 8.4 kg/cm².
- Static deflections up to 5 mm.
- Oil and corrosion resistant.
General information
Finish | Ribbed |
Material | Rubber Steel |
Shape | Square |
Length | 51 mm 76 mm 102 mm 152 mm 229 mm |
Width | 51 mm 76 mm 102 mm 152 mm 229 mm |
Height | 6 mm 10 mm 17 mm 18 mm 21 mm |
Uniclass | |
CAWS | P10/500 Anti-vibration mats or pads |
SKU Code | NGS |
Specification data - Pad mountings
Classification data | |
Material | Ribbed neoprene. |
Size | 51 x 51 x 17 mm. 76 x 76 x 17 mm. 102 x 102 x 17 mm. 152 x 152 x 18 mm. 229 x 229 x 18 mm. Manufacturer guidanceLength x width x thickness. |
Thickness | 17 mm. 18 mm. |
Static load range | 4.2 kg/cm². |
Deflection | 3.6 mm. |
Sustainability data
Material | Rubber Steel |
