Kubus I - Pod System
Verified by manufacturer 24 hours ago
Micro - Rw 34 dB
Micro - Rw 34 dB
Range of single glazed acoustic pods, designed for offices and meeting spaces.
Application
For commercial applications including offices.
Description
Range of single glazed acoustic pods, designed for offices and meeting spaces.
Supplied as a fully glazed room with aluminium supporting structure and a solid panel to the rear wall with a micro-perforated sound absorber.
Features and benefits:
- Available in a range of variations, with 34 or 39 dB acoustic performance.
- Provides standalone areas in a variety of sizes, designed for use as an individual workspace.
- Integrated ventilation system, sprinklers, lighting, presence detectors and double power point.
- Easy to relocate.
- Compact dimensions.
- Ergonomic design, with a threshold-free doorway.
- Wooden surfaces and the use of textiles provide good acoustics and a pleasant working environment.
- Various internal layouts are possible.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Frames: Anodized finish in six colours, or polyester powder-coated to any RAL colour. A wide range of colours/ finishes are also available for solid panels. |
Finish | Anodized Powder-coated Veneered Other |
Material | Aluminium Glass Timber Fabric Stainless steel |
Shape | Rectangle Square |
Length | 1500 mm 2200 mm 2706 mm 3598 mm 4598 mm |
Width | 1200 mm 1600 mm 2774 mm Bespoke |
Height | 2300 mm |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Meeting booths
Classification data | |
Environmental performance | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Configuration | |
Shape | Rectangular pod with roof. |
Size | 1500 x 1200 mm. Manufacturer guidancePlan size. |
Height | 2300 mm. |
Colour | White. Guidance for specification option: Melamine boards. Stone grey. Guidance for specification option: Melamine boards. Light grey. Guidance for specification option: Melamine boards. Oak. Guidance for specification option: Veneer boards. Walnut. Guidance for specification option: Veneer boards. Camira Cara Hillswick EJ190. Guidance for specification option: Fabrics. Camira Cara Merrick EJ048. Guidance for specification option: Fabrics. Camira Cara Shetland EJ191. Guidance for specification option: Fabrics. Other. Guidance for specification option: On request, consult manufacturer for available options and insert requirement. Manufacturer guidanceSolid wall element colour. See 'Board material' below to specify material. |
Furnishings | |
Tables and desks | Not required. Table clipped to solid wall. Guidance for specification option: Height adjustable. Table in front of glass wall. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Acoustic performance | 34 dB. Guidance for specification option: DnTw = 25 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Glass type | Toughened. |
Glass thickness | 10 mm. |
Absorber | 0.7 x 4 mm perforation, white RAL 9016. 0.7 x 4 mm perforation, RAL. Guidance for specification option: Insert RAL colour requirement. Manufacturer guidanceSelf-supporting micro-perforated panels. |
Board material | Melamine. Veneer. Fabric. |
Type | GG10 Door - Rw 32 dB. Guidance for specification option:
|
Ventilation | Ceiling integrated, output up to 210 m³/h. |
Lighting | LED wall light. Guidance for specification option: As standard. Constant LED ambiance lighting. Guidance for specification option: Optional. |
Sustainability data
Material | Aluminium Glass Timber Fabric Stainless steel |
Literature

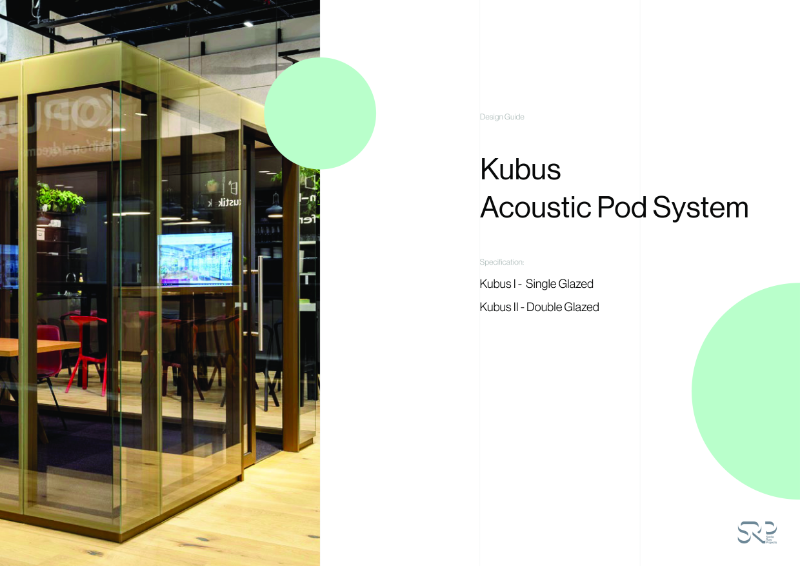

Kubus - Design Guide
Case studies

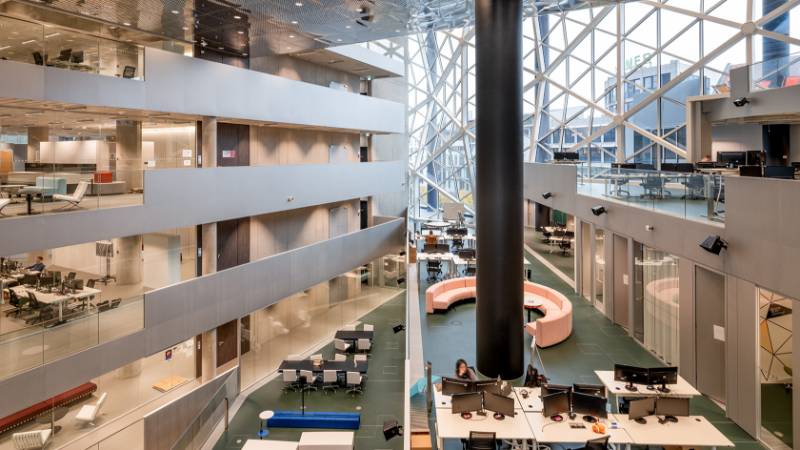

Axel Springer - System 3500, System 3400

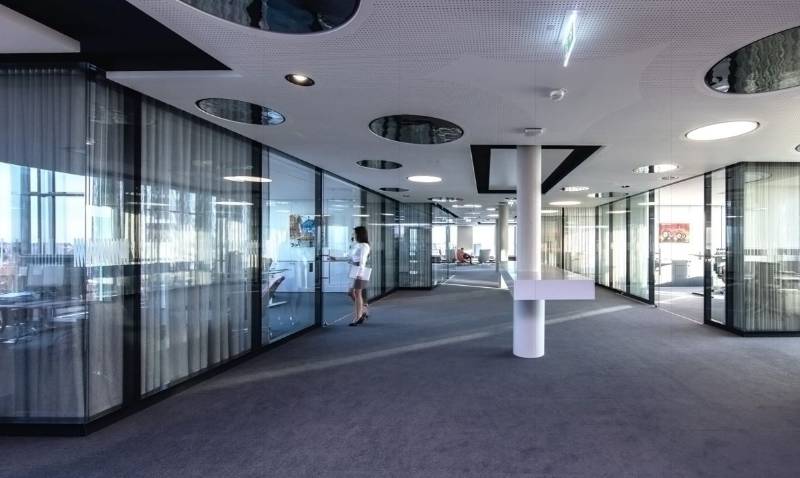

Mann+Hummel - System 2300, System 2000 Solid Wall, Kubus

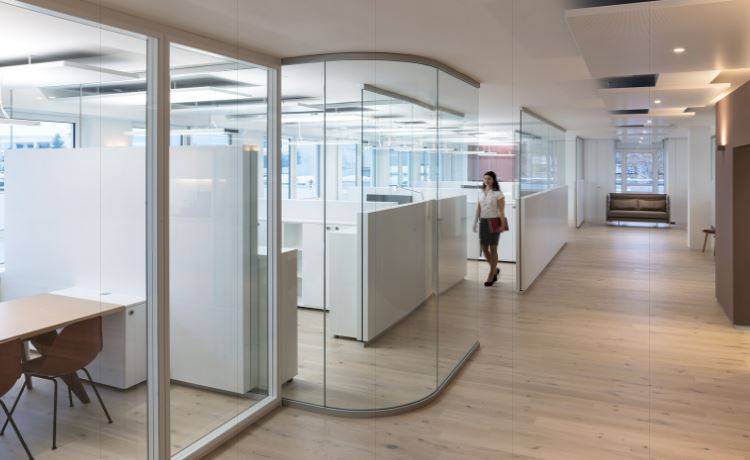

Strähle Raum-Systeme - System 7400, Kubus, System 2000
