Kydex® XD Thermoplastic PVC/ Acrylic Sheet - Decorative sheet
Verified by manufacturer 6 months ago
Thermoplastic 3D laminate.
Application
Suitable for:
- Store fixtures.
- Kiosks.
- Checkout counters.
- Cabinetry.
- Exhibits and displays.
- Door and drawer fascias.
- Mouldings.
- Pedestals and stands.
- Transaction surfaces.
- Workstations.
- Tabletops.
- Logo and trademark panels.
- Wainscots and flat laminated panels.
Description

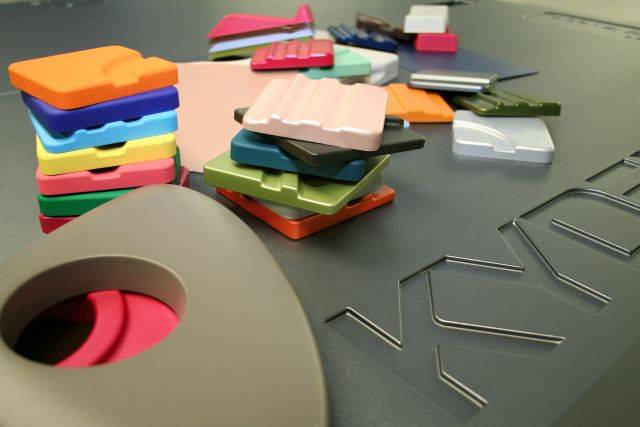

A thermoplastic 3D laminate giving designers the ability to incorporate compound corners, logos and wire management holes whilst eliminating unsightly seams and the need for edge banding typically associated with HPL/ TFM surfaces.
Features and benefits:
- Tough and durable.
- Resistant to cracking and chipping.
- Solid, integral colour.
- Many colours available.
- Resistant to a wide range of chemicals.
- Abrasion resistant.
- Fire retardant.
- Very low moisture absorption.
- Flexibility allows small radius bends.
- Specific gravity (to ASTM D-792): 1.35.
- Tensile strength (to ASTM D-638): 42 MPa.
- Tensile modulus (to ASTM D-638): 2416 MPa.
- Elongation (to ASTM D-638): 126%.
- Flexural strength (to ASTM D-790): 66 MPa.
- Modulus of elasticity (to ASTM D-790): 2480 MPa.
- Notched izod impact resistance (to ASTM D-256): 801 J/m.
- Rockwell hardness (R scale, to ASTM D-785): 94.
- Abrasion resistance (to ASTM D-1044): 0.0095.
- Ball impact resistance (to NEMA LD3): >3000 mm.
- Dart impact resistance (to NEMA LD3): >1000 mm.
- Cleanability (to NEMA LD3): 16.
- Surface spread of flame (to ASTM E-84): Class 1/A.
General information
Shape | Rectangle |
Length | 3048 mm |
Width | 1447 mm |
Uniclass | |
CAWS | K13/140 Proprietary laminated plastics-veneered panel lining K30/10 Relocatable partition system K30/130 Relocatable partition system K32/112 Fully framed panel cubicles K32/120 Panel cubicles K32/130 Privacy screens K32/140 Duct/ wall linings – panels only K32/150 Duct/ wall linings – panels and proprietary frames K32/160 Duct linings – preplumbed panels and proprietary frames N10/10 Purpose-made N10/110 Purpose-made N10/160 Shelving systems N10/30 Shelving systems N11/380 Purpose-made units N12/440 Purpose-made |
Specification data - Compact or solid grade high-pressure laminate (HPL) boards
Panel size | |
Length | 3048 mm. |
Width | 1447 mm. |
Thickness | 0.7 mm - 3 mm. Guidance for specification option: Insert requirement. |
Colour | Guidance for specification option: KYDEX® sheet is available in a range of standard colours, granite patterns, realistic wood grains and metallics. Custom colours and a diversity of designs are also available to enhance virtually any commercial, retail or institutional styling theme. Consult manufacturer for information. |
Grades | Extreme durability (XD). |
