M2M+ Double Leaf External Fire Rated Steel Doorset

Name: M2M+ Double Leaf External Fire Rated Steel Doorset
Brand: Bradbury Group
SKU: 6wXdLSk982rBMm9jtaxQuT

Verified by manufacturer 2 months ago

Bradbury Group

Third party certifications:

EN 13501-1 (Efectis)
Certificate type
Al Futtaim Element
Certificate type

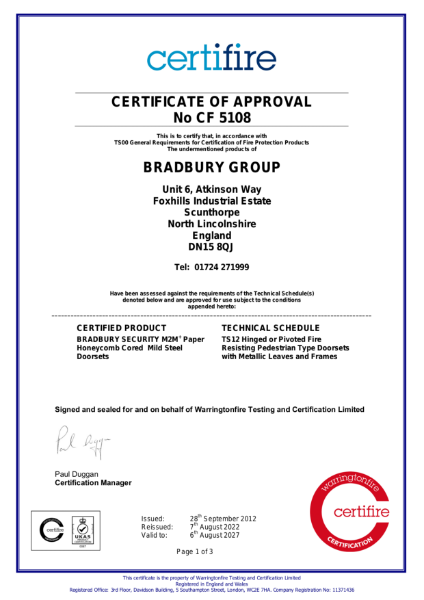

Certifire Certificate
Certificate type

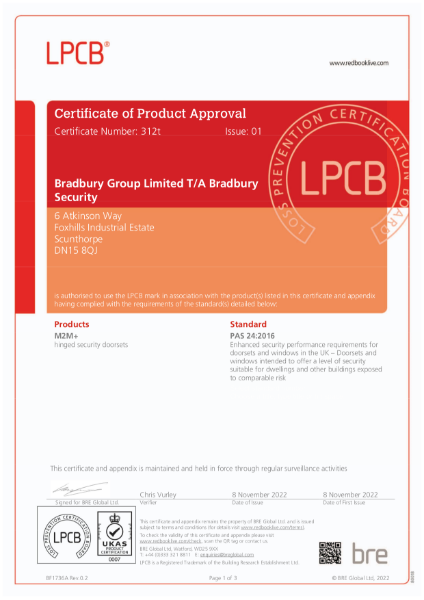

BRE Certificate
Certificate type

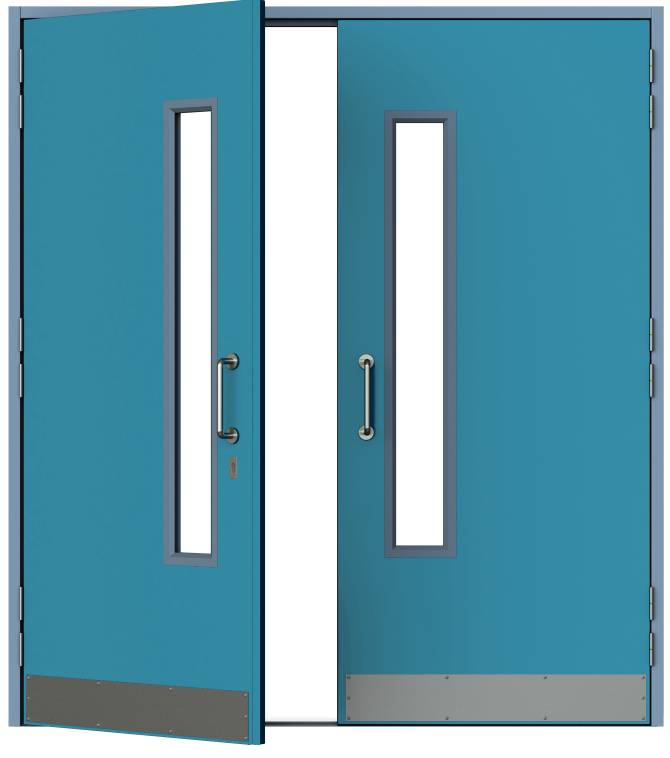

Double-leaf, external fire rated steel doorsets rated to 240 minutes.

Jump to:

BOS

+44 1724 275720 Website

Application

Suitable for for internal or external installation in industrial, commercial, and domestic buildings.

Description

External, double-leaf fire rated doorset, providing integrity fire resistance for up to 240 minutes.

Features and benefits:

External fire rated to 240 minutes.
Double-leaf configuration.
Bespoke, engineered in-house.
Polyester powder coated in a selection of colours and finishes.
High quality wood grain effect available.
Range of locking options available.
Patented adjuster system and fast-fit frame available.
Constructed from zintec steel, stainless steel, or magnelis.
Vision panels and louvres available.
Optional ISO 10140 acoustic rating from Rw 28 to Rw 40.
Certified by Efectis to BS EN 16034-1 and EN 14351.

General information

Color	Other Beige Black Blue Bronze Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Show more
Finish	Powder-coated
Material	Steel Zintec steel Stainless steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_52 Carbon steel doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration	Double-leaf, single-action, outward opening. Double-leaf, single-action, inward opening.
Doorset size	Guidance for specification option: Insert requirement. Height: 1750 mm (minimum); 2500 mm (maximum). Width: 1200 mm (minimum); 2279 mm (maximum).
Performance	-
Fire resistance	-
Integrity	240 minutes. Guidance for specification option: Certified by Exova under the CERTIFIRE scheme (certificate number CF5108).
Acoustic performance	Unrated. To BS EN ISO 10140-2, sound reduction index Rw 28 dB minimum. Guidance for specification option: Tested by Lorient to BS EN ISO 101402: 2010. Certain M2M+ doors are available with acoustic ratings from Rw 28 to Rw 40, providing 28 dB to 40 dB of noise reduction, depending on specification. Consult manufacturer for details.
Thermal	Guidance for specification option: U Value up to 1.9 W/m²K; consult manufacturer and insert requirement.
Frame	-
Material	Zintec steel. Stainless steel. Magnelis. Manufacturer guidance Frame thickness: 1.5 mm.
Threshold	Steel. Aluminium
Finish	-
Coating	Polyester powder-coated. Guidance for specification option: As standard. Wood effect. Guidance for specification option: Optional finish available at an extra cost.
Texture	- Manufacturer guidance Consult manufacturer and insert requirement.
Colour	- Manufacturer guidance Consult manufacturer and insert requirement.
Installation fasteners	Seven dog bolts per leaf (minimum).
Frame accessories	Butt jointed frame sections. Guidance for specification option: As standard. Fully welded frame. Guidance for specification option: Optional - available at an extra cost.
Door leaf	-
Thickness	45 mm.
Core	Honeycomb.
Material	Zintec steel, 1.2 mm thick. Stainless steel 1.2 mm thick. Zintec steel, 1.5 mm thick. Stainless steel, 1.5 mm thick. Magnelis, 1.5 mm thick.
Glazing	-
Type	Not required. Vision panel. Guidance for specification option: Insert requirement. Maximum VP (square): 610 x 610 mm. Maximum VP (rectangle): 305 x 1524 mm.
Beading	-
Type	10 mm astragal.
Material	Steel.
Fixing	- Manufacturer guidance Consult manufacturer and insert requirement.
Finish	-
Coating	Polyester powder-coated. Guidance for specification option: As standard. Wood effect. Guidance for specification option: Optional finish available at an extra cost.
Texture	- Manufacturer guidance Consult manufacturer and insert requirement.
External colour	- Manufacturer guidance Consult manufacturer and insert requirement.
Internal colour	As External. Other. Guidance for specification option: Consult manufacturer and insert requirement.
Hardware	Closers, Dorma TS72. Closers, Dorma TS83 (excluding double). Closers, Assa DC200. Closers, Assa DC300. Closers, Dorma TS92 (90 minute rated).
Accessories	Not required. Kickplates up to 1000 mm. Push plates.

Hinges	Grade 13 butt hinge. H101 lift off hinge.
Sill	Not required. Steel sill. Aluminium sill.
Door frame profile	90 mm deep. Guidance for specification option: Standard. 150 mm deep. Guidance for specification option: Optional.
Locking	Hooply multi-point lock. Union HD72 range. Guidance for specification option: Must have six hinges when the fire is on the hinge side. Insert requirement. Briton commercial 5400 range. Guidance for specification option: Must have six hinges when the fire is on the hinge side. Insert requirement.
Panic hardware	Not required. Briton 389N. Briton 379N. Briton 378N. Briton 1438N. Briton 376N. Show more Manufacturer guidance Must have six hinges when the fire is on the hinge side.
Louvre panels	Not required. Required. Guidance for specification option: Maximum LP (square): 610 x 610 mm. Insert requirement.
Weight	45 kg/m². Manufacturer guidance Circa.
