MuteClip® MF – Part E Ceiling Soundproofing

Name: MuteClip® MF – Part E Ceiling Soundproofing
Brand: iKoustic
SKU: 6EYf5BrXUFY5zfqBChzVpJ

Verified by manufacturer 2 months ago

iKoustic

An acoustic ceiling soundproofing system.

Jump to:

BOS

+44 (01937) 588 226 Website

Application

For use with MF ceiling systems.

Description

An MF ceiling partition for use with existing frameworks to acoustically isolate and de-couple systems and materials. Providing reductions in both airborne and impact sound in order to pass Part E of Building Regulations.

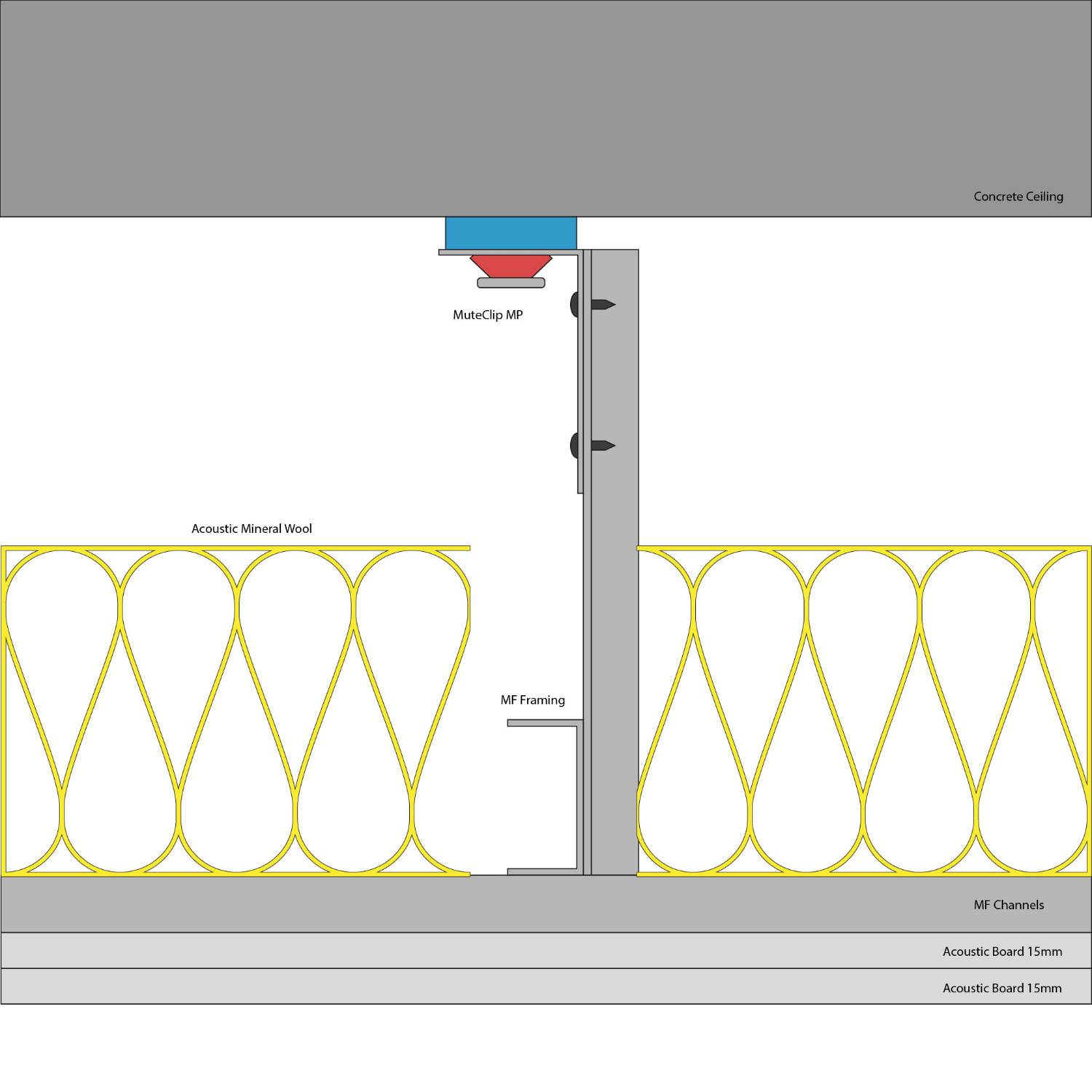

System components:

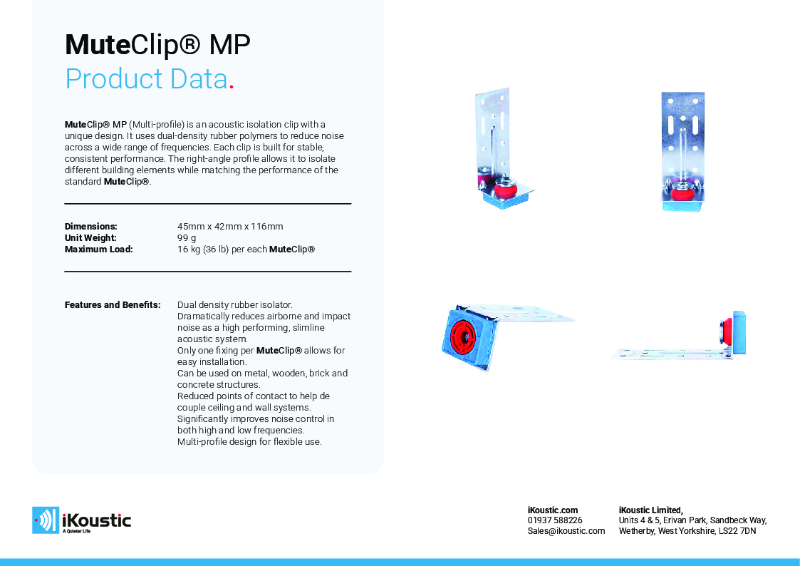

MuteClip® MP – MF Acoustic Ceiling Hangers.
Rockwool Acoustic Mineral Wool.
Soundproof Plasterboard 15 mm.
MuteMat® OSF 750-10 – Soundproofing Underlay.

Features and benefits:

High performance in airborne and impact sound.
Pass or exceed Part E Building Regulations.
Allows for various dropped ceiling heights.
Easy to install.
Can be used with most MF ceiling systems.
12 mm additional height.
58 dB (DnT,w + Ctr) airborne reduction.
48 dB (L'nT,w) impact reduction.

General information

Color	White Grey Blue
Finish	Other Guidance for specification option: Soundproof plasterboard, either tape and jointed or skim plastered.
Material	Plasterboard Mineral wool Metal
Shape	Rectangle
Length	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm.
Width	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm.
Height	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm.

Uniclass	Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary
CAWS	K11/27 Acoustic separating floor K11/275 Acoustic separating floor system

Specification data - Gypsum board suspended ceiling systems

Classification data
System performance	Acoustic performance Guidance for specification option: 58 dB airborne reduction, 48 dB impact reduction.
Suspension grid	MuteClip® MP – MF Acoustic Ceiling Hangers and MF framing.
Insulation	Rockwool Acoustic Mineral Wool RW3 60 kg/m³. Guidance for specification option: Consult manufacturer for required thickness.
Linings	-
Inner layers	Soundproof Plasterboard 15 mm. Soundproof Plasterboard 15 mm plus a layer of Tecsound SY70.
Face layer	Soundproof Plasterboard 15 mm.
Finish	Tape and joint. Skim plaster finish.
System accessories	Acoustic sealant.
Acoustic underlay	MuteMat® OSF 750-10 – Soundproofing Underlay.

Sustainability data

Material	Plasterboard Mineral wool Metal
Recyclability	Rockwool stone wool insulation can be recycled Guidance for specification option: Leftover Rockwool stone wool insulation and off-cuts can be recycled and transformed into new Rockwool insulation.
