Timber Joist – Part E Ceiling Soundproofing

Name: Timber Joist – Part E Ceiling Soundproofing
Brand: iKoustic
SKU: jvBo78w8A7BzrSroKjjp4C

Verified by manufacturer 2 months ago

iKoustic

An acoustic ceiling soundproofing system.

Jump to:

BOS

+44 (01937) 588 226 Website

Application

Suitable for new builds or existing structure conversions.

Description

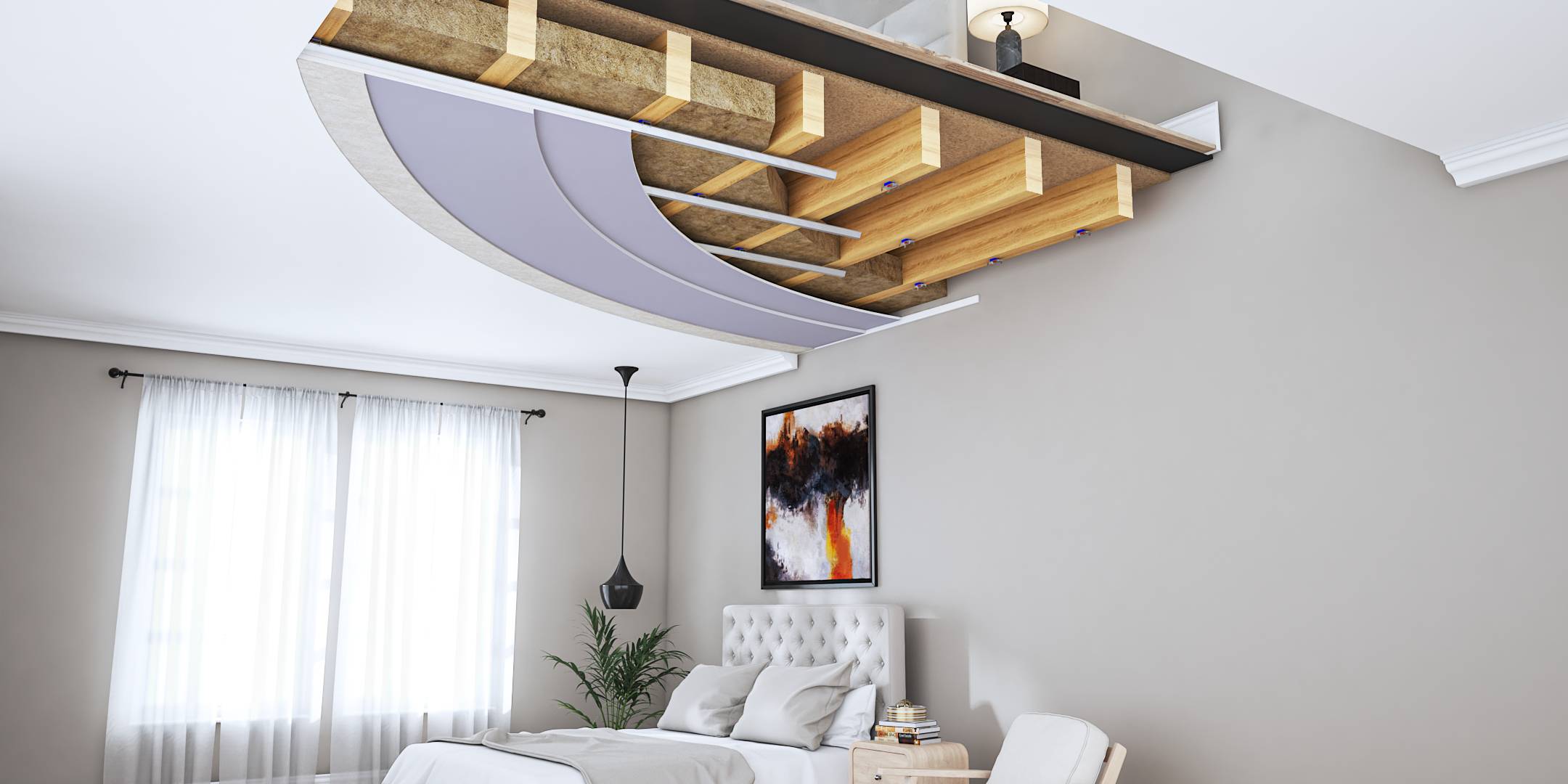

An acoustic floor/ceiling partition, designed to pass the soundproofing requirements for Part E of Building Regulations. The system combines a MuteClip isolated ceiling solution, dense acoustic mineral wool insulation and an impact-reducing underlay for the floor above.

System components:

MuteClip® Isolation Clips.
MuteClip® Channel.
Rockwool Acoustic Mineral Wool RW3 60 kg/m³.
Soundproof Plasterboard 15 mm.

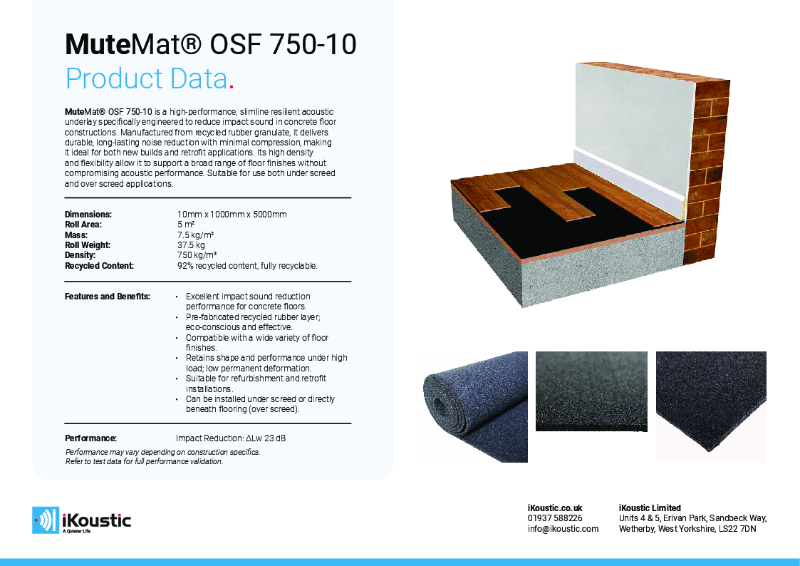

MuteMat® OSF 750-10 – Soundproofing Underlay.

Features and benefits:

Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland) and Building Standards Technical Handbook 2017 for Scotland for airborne and impact transmission.
Easy to install.
MuteMat OSF 750-10 can accept most final floor finishes direct.

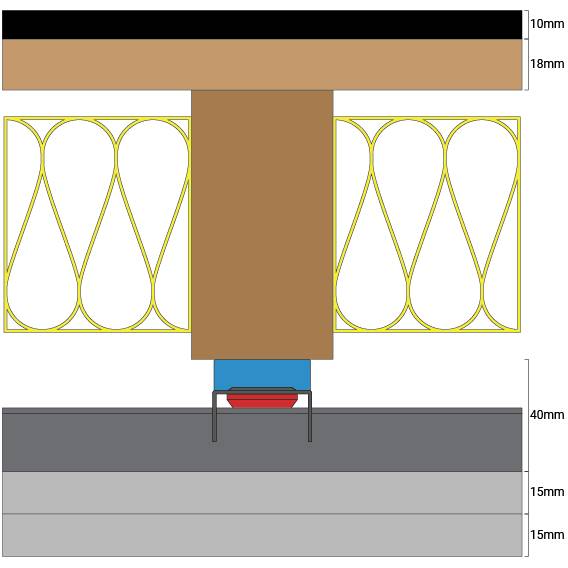

98 mm thickness (plus joist depth).
55 dB (DnT,w + Ctr) rating for airborne sound (where a higher number is desired).
48 dB (L’nT,w) rating for impact sound (where the lower the number the better).

General information

Color	White Grey Blue
Finish	Other Guidance for specification option: Soundproof plasterboard, either tape and jointed or skim plastered.
Material	Plasterboard Mineral wool Metal
Shape	Rectangle
Length	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm.
Width	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm.
Height	98 mm Manufacturer guidance Soundproof Plasterboard 15 mm.

Uniclass	Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary
CAWS	K11/275 Acoustic separating floor system K11/27 Acoustic separating floor

Specification data - Gypsum board suspended ceiling systems

Classification data
System performance	Acoustic performance Guidance for specification option: 55 dB airborne reduction, 48 dB impact reduction.
Suspension grid	MuteClip® Channels on MuteClip® Isolation Clips.
Suspension grid fasteners	5 x 60 mm wood screws.
Insulation	Rockwool Acoustic Mineral Wool RW3 60 kg/m³. Guidance for specification option: Insert thickness requirements. The manufacturer recommends filling the cavity to close to 70% depth using acoustic mineral wool.
Linings	-

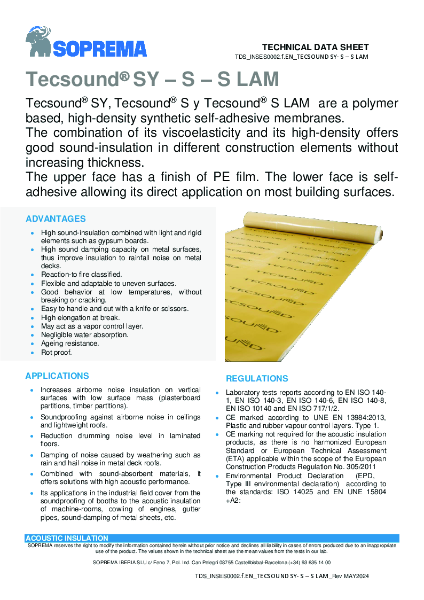

Inner layers	Soundproof Plasterboard 15 mm. Soundproof Plasterboard 15 mm plus a layer of Tecsound SY70.
Face layer	Soundproof Plasterboard 15 mm.
Fasteners	First plasterboard to channel: 32 mm fine thread plasterboard screw; Second plasterboard to channel: 50 mm fine thread plasterboard screw.
Finish	Tape and joint. Skim plaster finish.
System accessories	Acoustic sealant.
Acoustic underlay	MuteMat® OSF 750-10 – Soundproofing Underlay.

Sustainability data

Material	Plasterboard Mineral wool Metal
Recyclability	Rockwool stone wool insulation can be recycled Guidance for specification option: Leftover Rockwool stone wool insulation and off-cuts can be recycled and transformed into new Rockwool insulation.
