Non-insulated Steel door - Economy 50
Verified by manufacturer 6 months ago
Economy 50 Single Leaf Inward Opening
Economy 50 Single Leaf Inward Opening

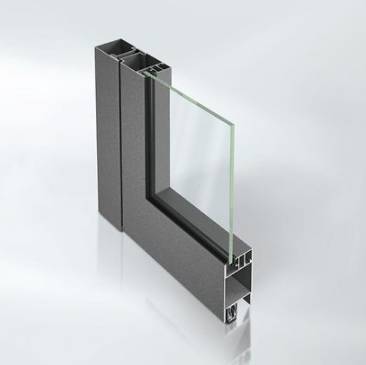

Non-insulated steel profile system for flush-fitted internal door constructions.
Application
Suitable for interior door constructions, for flush-fitted single and double-leaf door constructions as well as fixed glazing in indoor areas.
Description
A non-insulated flush-fitted steel profile system with a 50 mm basic depth and continuous shadow gaps on the inside and outside, compatible with thermally insulated Janisol doors as well as Janisol smoke and fire doors.
Features and benefits:
- Large range of system-tested door fittings, easy-access thresholds, suitable for powder and wet paint coating.
- Slimline, non-insulated door and partition wall system made from steel for maximum creative freedom.
- Glazed, flush-fitted sheet metal-clad or partially sheet metal-clad system versions for an individual design.
- Minimal profile face widths ensure maximum transparency and light penetration in the rooms.
Standards:
- EN ISO 10077-2.
- EN 1191.
- EN 1603.
- EN 179.
- EN 1125.
- DIN 18040.
- EN 1634-1.
- EN 13501-2.
- EN 16034.
- EN 13501-2.
- EN 16034.
- EN 14351-1.
General information
Finish | Powder-coated Painted |
Material | Steel |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Standard | To EN 14351-1. |
Third-party certification | EPD. |
Configuration | Single leaf inward opening.Single leaf inward opening, with toplight and side section. |
Doorset size | Guidance for specification option: Consult manufacturer for further details as required and insert requirements.
|
Performance | |
Fire resistance | |
Integrity | E30. |
Acoustic performance | Manufacturer guidanceInsert requirements, Rw up to 44 dB(A). |
Strength and durability | Manufacturer's standard.Guidance for specification option:
|
Thermal | Guidance for specification option: Consult manufacturer for options and insert requirements. Frame: ≥5.1 W/m²K. Manufacturer guidanceThermal production. |
Frame | |
Material | Steel. |
Threshold | Automatic door gasket.Flat door threshold.Easy-access door threshold. |
Finish | |
Coating | Powder coated.Painted. |
Texture | Manufacturer's standard. |
Colour | Manufacturer guidanceInsert requirements. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Door leaf | |
Thickness | 50 mm.Guidance for specification option: Basic depth, flush-fitted on the inside and outside. |
Panel details | Manufacturer guidanceInsert requirements or omit. |
Glazing | |
Type | Manufacturer guidanceConsult manufacturer for options and insert requirements. Glass thickness: 5–27 mm. |
Manifestation | Manufacturer guidanceInsert requirements or omit. |
Finish | |
Coating | Powder coated.Painted. |
Texture | Manufacturer's standard. |
External colour | As Frame.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Internal colour | As External.Other.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Film thickness (minimum) | Manufacturer's standard. |
Door accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Hardware | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Meeting stiles | 155 mm. Manufacturer guidanceMeeting stile assembly. |
Width | 107.5 mm. Manufacturer guidanceFrame and leaf. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 23 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
