Thermally insulated steel door - Janisol
Verified by manufacturer 6 months ago
Janisol Single Leaf Inward Opening
Janisol Single Leaf Inward Opening

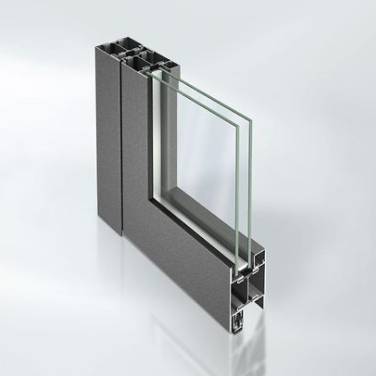

Thermally insulated steel profile system for multi-functional door constructions.
Application
Suitable for use outdoors in heavily frequented public buildings.
Description
The steel profile system enables a variety of construction applications for multi-functional single and double-leaf steel doors.
The compatibility of Janisol door systems means the non-insulated Jansen Economy door for indoor use and smoke protection as well as Janisol 2, Janisol C4 and highly thermally insulated Janisol HI systems can all be combined with this product.
Features and benefits:
- All current types of opening possible.
- Optional burglar and bullet resistance.
- Complete fittings system including stainless steel barrel hinges.
- Maximum mechanical stability and durability for heavily used doors.
- Structural alternation between tubular frame construction and cladding.
- Profile-integrated finger protection on the secondary closing edge.
- Comprehensive sound reduction expert report.
- Concealed hinges, door closers and drivers ensure a harmonious appearance.
Standards:
- EN 14351-1.
- EN 14024.
- EN 1192 (Class 4).
- EN 12210.
- EN 12208.
- EN ISO 10140.
- EN ISO 10077-2.
- EN 12207.
- EN 1192.
- EN 12219.
- EN 1627.
- EN 1522.
- EN 14024.
- EN 12400.
- EN 12217.
General information
Color | Manufacturer guidanceAlmost unlimited choice of colours, consult manufacturer for options. |
Finish | Powder-coated Painted |
Material | Steel |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Standard | To EN 14351-1. |
Third-party certification | EPD; CE Marked. |
Configuration | Single leaf inward opening. |
Doorset size | Guidance for specification option: Consult manufacturer for further details as required and insert requirements.
|
Performance | |
Acoustic performance | Manufacturer guidanceInsert requirements, up to 45 dB(A). |
Strength and durability | To BS EN 1192, Class 4.Guidance for specification option: Mechanical strength. Proof of durability: 1 000 000 cycles in accordance with DIN EN 12400. |
Thermal | Manufacturer guidanceConsult manufacturer for options and insert requirements. Frame Uf: ≥2.3 W/m²K. |
Intruder resistance | |
Minimum requirement | Manufacturer guidanceInsert requirements, up to RC3. |
Bullet resistance | To BS EN 1522, Class FB6. |
Frame | |
Material | Steel. |
Threshold | Automatic door gasket.Flat door threshold.Easy-access door threshold. |
Finish | |
Coating | Powder-coatedPainted |
Colour | Guidance for specification option: Almost unlimited choice of colours, consult manufacturer and insert requirements. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Door leaf | |
Thickness | 60 mm.Guidance for specification option: Basic depth, flush-fitted on the inside and outside. |
Panel details | Manufacturer guidanceInsert requirements or omit. |
Material | Steel. |
Glazing | |
Type | Manufacturer guidanceInsert requirements, 15–37 mm. |
Manifestation | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Finish | |
Coating | Powder-coatedPainted |
Texture | Manufacturer's standard. |
External colour | As Frame.Other.Guidance for specification option: Almost unlimited choice of colours, consult manufacturer and insert requirements. |
Internal colour | As External.Other.Guidance for specification option: Almost unlimited choice of colours, consult manufacturer and insert requirements. |
Film thickness (minimum) | Manufacturer's standard. |
Door accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Hardware | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Architraves | |
Material | Steel. |
Finish | Bright.Polished.Guidance for specification option: Grain 220-240. |
Colour | Guidance for specification option: Almost unlimited choice of colours, consult manufacturer. |
Accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements or omit. |
Width | 107.5 mm. Manufacturer guidanceFace width: Frame and leaf. |
Meeting stiles | 155 mm. Manufacturer guidanceMeeting stile assembly. |
Weight | 230 kg. Manufacturer guidanceLeaf weight. |
Glazing/ infill thickness | 15–34 mm. Guidance for specification option: Glazing installed by means of dry or wet glazing. |
Resistance to wind load | To EN 12210, Class 4. |
Watertightness | To EN 12208, 4A. |
Air permeability | To EN 12207, Class 4. |
Burglar resistance | To EN 1627, Class 3. |
Durability | Up to 1 million cycles. |
Sustainability data
Country of material origin | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 23 % |
