NVELOPE® Rainscreen Sub Frame System - NV6 - Rainscreen Cladding System

Name: NVELOPE® Rainscreen Sub Frame System - NV6 - Rainscreen Cladding System
Brand: SFS Group Fastening Technology Ltd
SKU: hVSS1QEFikd3XJmcAfpSQ8

Verified by manufacturer 5 days ago

NV6

SFS Group Fastening Technology Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

Aluminium secondary support carrier system for timber cladding.

Jump to:

BOS

+44 (0)330 0555 888 Website

Application

Suitable for the support of vertical or horizontal timber rails or timber boarding, to which timber cladding, weatherboard panels or boards, or panels made to support other materials, e.g. copper, zinc, etc. may be attached.

Description

Vertical aluminium sub frame system for rainscreen applications with helping hand system NV6 is suitable for supporting a timber batten/ hybrid. Panels may then be attached to support other materials, e.g. copper and zinc.

Features and benefits:

NV6 is the NVELOPE® system for supporting a timber batten – vertical cladding applications (to support vertical and/ or horizontal cladding elements).
Timber batten can be used to support timber cladding/ weatherboarding and ply (used as a substrate for other materials e.g. metal).

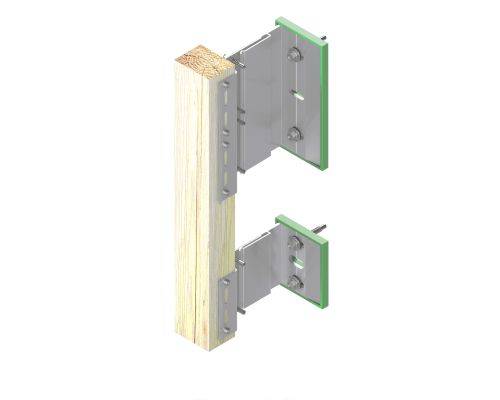

Concealed fix system, utilizing NVELOPE® helping hand brackets plus NVELOPE® carrier.
NVELOPE® flexible point brackets absorb wind loading and allow for expansion and contraction.
NVELOPE® fixed-point brackets absorb both vertical dead loads.
NVELOPE® Bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads.

Support:

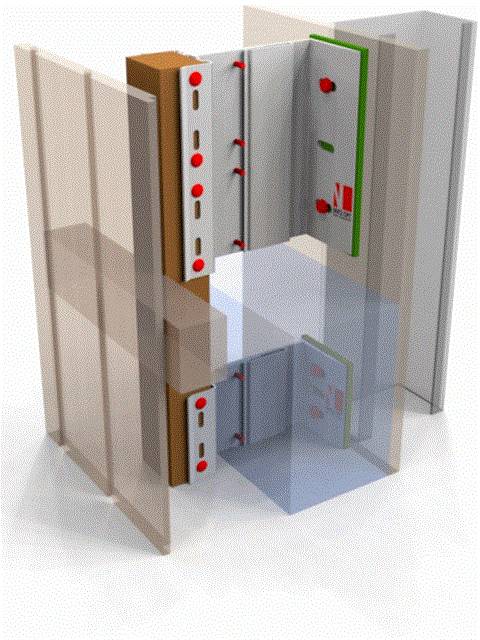

Vertical timber cladding: vertical timber bearers are supported with NVELOPE® carriers brackets fixed back to NVELOPE® support brackets.
Horizontal timber cladding: vertical timber bearers are supported with NVELOPE® carriers fixed back to NVELOPE® support brackets, then counter battened.

General information

Finish	Mill Anodized Powder-coated
Material	Aluminium
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Up to 25 years - consult manufacturer.

Uniclass	Pr_20_85_20_04 Aluminium carrier railsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards	EN 1090-3:2008; Eurocode 9 Pt 1-4.
Factory finish	Mill.
Thermal break	Isolator only.

Material/ Finish	Aluminium alloy 6005 T6; mill aluminium standard finish. Guidance for specification option: Anodized and powder coating option.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Aluminium
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	9.59 kg CO₂ eq/kg
Recyclability	6005 aluminium fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
