NVELOPE® Rainscreen Sub Frame System - NV7 - Rainscreen Cladding System
Verified by manufacturer 5 days ago
NV7
NV7
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Aluminium secondary support carrier system for metal cassettes.
Application
Suitable for supporting cladding elements that are configured as cassettes (by others) - e.g. aluminium composite material (ACM), zinc composite material (ZCM) and metal rainscreen panels.
Description

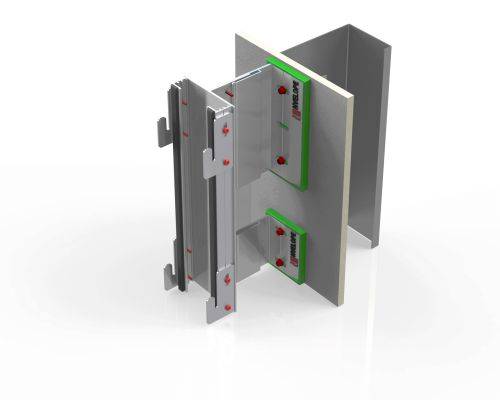

Vertical aluminium sub frame system for rainscreen applications with helping hand system suitable for concealed fix of aluminium cassettes.
Features and benefits:

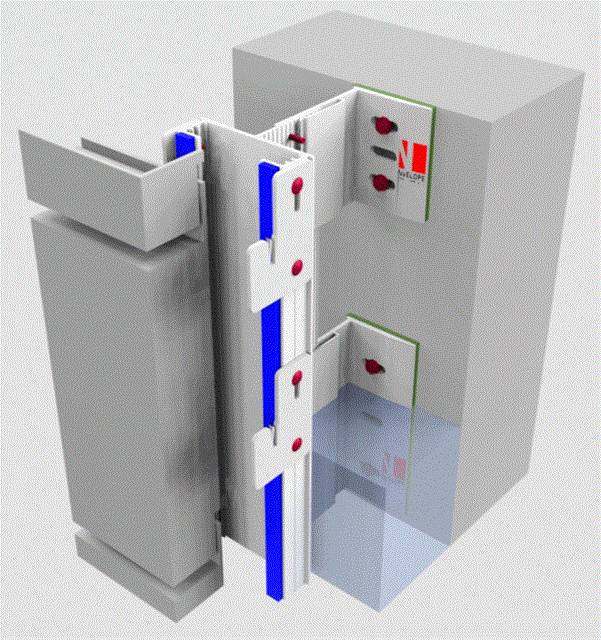

- NV7 is the NVELOPE® system for supporting facade materials configured as ‘cassettes’.
- NVELOPE® NV7 cassette profiles are fixed using NVELOPE® helping hand support brackets, fixed through a series of fixed and flexible points.
- NVELOPE® flexible point brackets absorb wind loading and allow for expansion and contraction.
- NVELOPE® fixed-point brackets absorb both vertical dead loads.
- NVELOPE® bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads and cladding zone.
General information
Finish | Mill Anodized Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Up to 25 years - consult manufacturer. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 1090-3:2008; Eurocode 9 Pt 1-4. |
Factory finish | Mill. |
Thermal break | Isolator only. |
Material/ Finish | Aluminium alloy 6005 T6; mill aluminium standard finish. Guidance for specification option: Anodized and powder coating option. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.59 kg CO₂ eq/kg |
Recyclability | 6005 aluminum fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
