Operating Light Battery Back Up Units
Verified by manufacturer 12 days ago

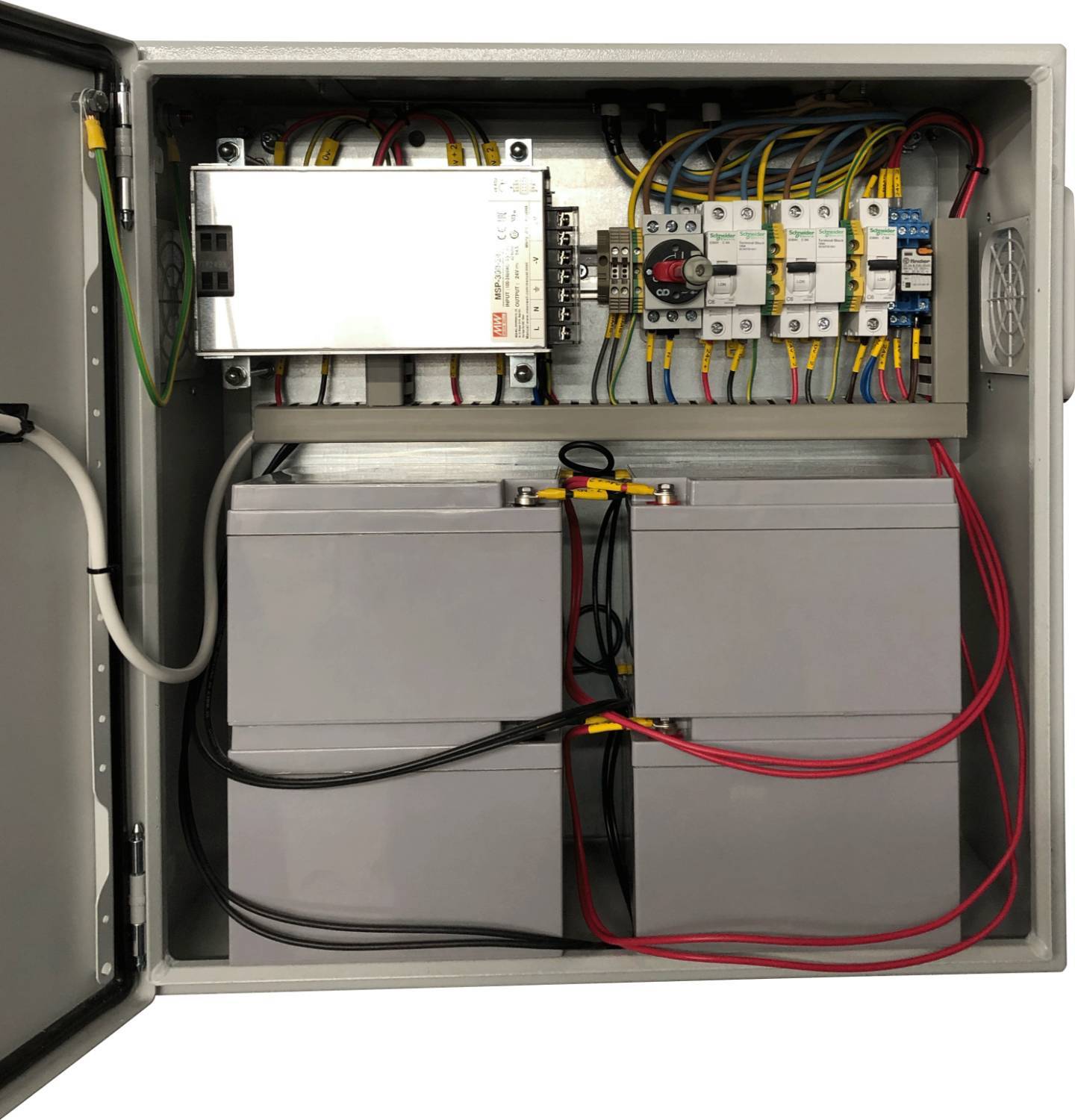

Battery backup units (BBU) for operating lights.
Application
For use with operating theatre lights.
Description
In line with the requirements of HTM06-01 regulations, part 16.78, power backup is essential in case the main power is lost during a surgical procedure. Should this happen, a 24 V d.c. battery takes over to provide standby power for the duration of the battery's autonomy.
Depending on spatial requirements, budget, and application, Bender can offer a range of solutions. Floor or wall-mounted systems are available with several different metering options.
For more information, please contact our team: internalsales@bender-uk.com.
General information
Color | Grey |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 210 mm |
Uniclass |
Specification data - Emergency call battery backup supply
Standards | To HTM06-01. |
Battery type | 2 x 28 Ah 12 V, sealed lead acid (single light unit).4 x 28 Ah 12 V, sealed lead acid (dual light unit). |
Duration of operation | Three hours. |

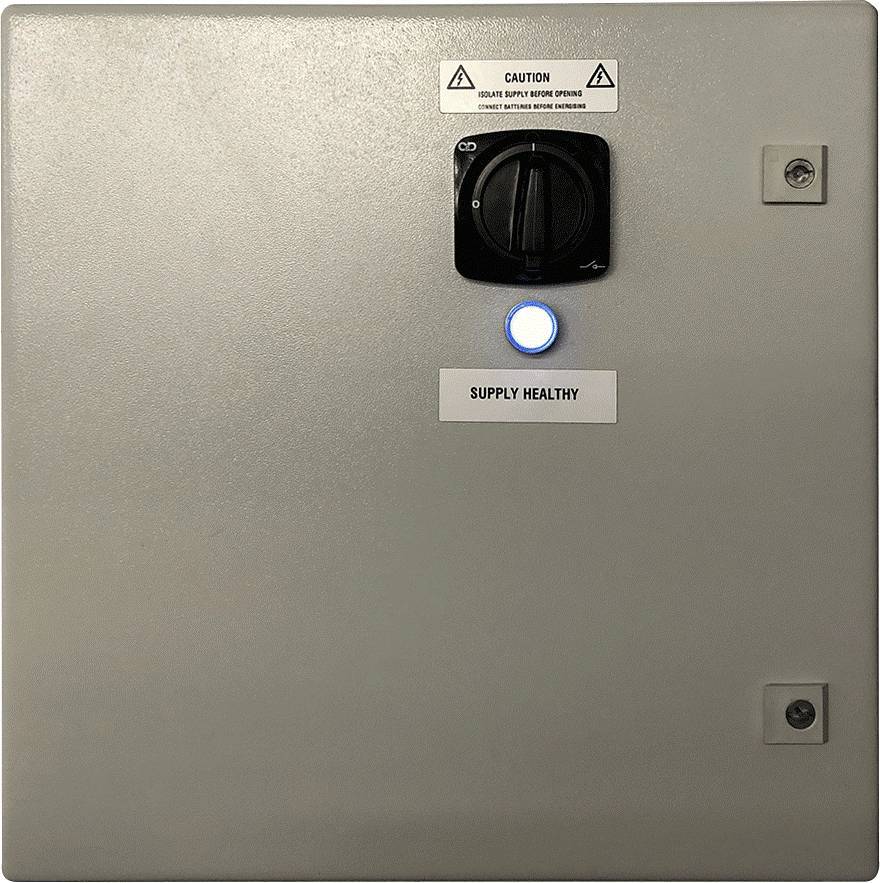

Charge indicator | Supply healthy indicator lamp. |
Battery enclosure | Integral within the power supply unit. |
Input voltage | 230 V a.c. |
Voltage | 24 V d.c. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Can be returned to manufacturer in accordance with WEEE regulations. |
