Oval Twin Handrail

Name: Oval Twin Handrail
Brand: Yeoman Shield, trading name of Harrison Thompson & Co Ltd
SKU: f5jMeupvkyciAeNzx7mazn

Verified by manufacturer today

Yeoman Shield, trading name of Harrison Thompson & Co Ltd

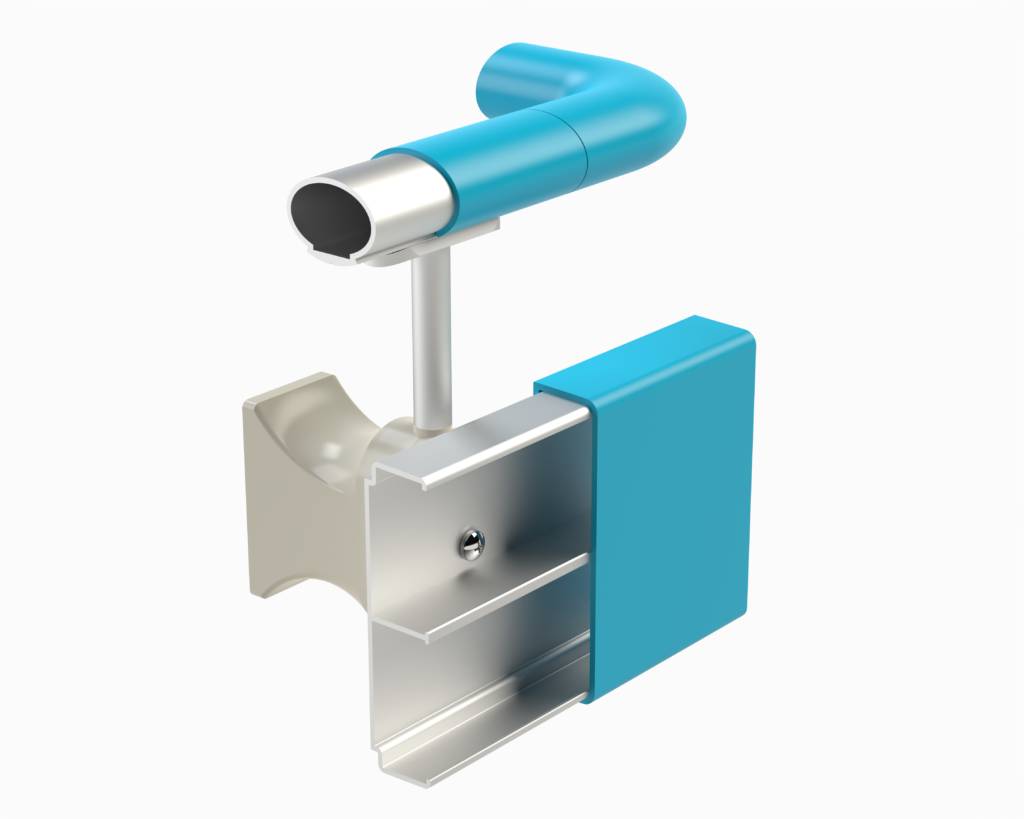

Oval twin handrail with upper handrail and lower protection rail.

Jump to:

+44 (0)113 279 5854 Website

Application

For installation in corridors and communal areas where added support for service users is required. It can also be installed on sloping ramps and stairways if required. Applications include:

Corridors.
Ramps.
Interior stairs and entrances in public buildings.
Education.
Healthcare.
Leisure.
Retail environments.

Description

The Yeoman Shield 45 mm Oval Twin Handrail meets the brief for installation in corridors and communal areas where added support for service users is required. It can also be installed on sloping ramps and stairways if required.

Manufactured from PVCu the rail is warm to the touch and easy to clean. This hygienic system has an Aluminium core and stainless steel underslung brackets giving the required 65 mm distance between the rail and wall to ensure a firm and comfortable grip for the user.

The Oval Handrail is available in various colours with an accompanying range of accessories to ensure a durable and solid fit to the substrate within the environment the rail is intended for. The use of contrasting accessories can help service users who have impaired vision or have dementia.

Features and benefits:

Offers handrail support as well as protection to the wall.
Ergonomic 45 mm grip handrail.
125 or 200 mm bottom crash/ protection rail.
65 mm stand off from wall.
Warm to the touch.
Hygienic material - easy to clean.
Installed on continuous aluminium core - lightweight yet durable.
Fire tested.
Low VOC.

General information

Color	Grey Blue White
Finish	Coated Textured
Material	PVC-U Aluminium
Shape	Rectangle
Length	3500 mm

Uniclass	Pr_35_90_43_18 Composite protection railsPrimary Ss_25_60_05_35 Handrail systems Pr_35_90_43_86 Wall protection panels
CAWS	P20/30 Proprietary P20/170 Proprietary

Specification data - Composite protection rails

Classification data
Material	PVCu rail with aluminium core.
Fire rating	Textured Extruded Protection Products: B, s2, d0. To BS EN 13823: 2010 + A1: 2014. To BS EN ISO 11925-2: 2010. To BS EN 13501-1: 2007 + A1: 2009. To BS 476-7, Class 1Y. To BS 476-6, Class O as defined in the latest building regulations, approved document B (Fire Safety).
Impact resistance	Not applicable.
Finish	-
Coating	Extruded PVCu.
Colour	Graphite. Royal blue. White. Dark grey. Mid grey. Light grey.
Size	3.5 m lengths.
Volatile organic compounds (VOC) emissions level (maximum)	Low VOCs.
Width	Upper handrail 45 mm, lower protection rail 125 mm. Upper handrail 45 mm, lower protection rail 200 mm.
Projection	90 mm. Manufacturer guidance Projection on spacers.
Brackets	Stainless steel underslung brackets.
Accessories	- Manufacturer guidance Injection moulded ABS available. Consult manufacturer for details and insert requirements.
