Parabit Duo Hot Melt - Green Roof - Green roof system
Verified by manufacturer 1 day ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Double layer liquid applied bituminous hot melt waterproofing membrane for inverted warm roofs with Ravatherm XPS insulation and a green roof as the system finish.
Application
Parabit Hot Melt Membranes are suitable for use in protected/ inverted roofs, plaza decks, green and blue roof installations.
Description
Parabit Duo Hot Melt Waterproofing System is a hot liquid applied, durable and flexible waterproofing membrane manufactured from a blend of bitumen and SBS polymers.
Features and benefits:
- Fully protected waterproofing membrane.
- Robust and durable waterproofing membrane fully bonded directly to the substrate.
- Double layer, monolithic hot melt waterproofing for field area and details.
- Guaranteed upto 35 years.
- SBS modified bitumen compound and protection sheet.
- Rootbar membrane option for green roofs.
- Certification: BBA Certificate - 15/5189 (PS 2).
- Environmental Product Declaration (EPD-Kiwa-EE-216006-EN)
General information
Material | Bitumen |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 35 year |
Uniclass | |
CAWS | J31/12 Inverted roof coating J31/130 Inverted roof coating |
Specification data - Liquid-applied inverted roof covering systems
Classification data | |
Preparation | |
Horizontal work | Siplast primer. Guidance for specification option: Siplast Primer is a low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent. |
Skirtings and vertical work | Siplast primer. Guidance for specification option: Siplast Primer is a low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent. |
Liquid-applied waterproofing | |
Type | Parabit hot melt compound. Guidance for specification option: SBS modified bitumen compound for use within a multi layer hot melt system. |
Reinforcement | Parabit DUO reinforcing fabric. Guidance for specification option: A non-woven polyester reinforcement for use with the Parabit Duo hot melt membrane. |
Insulation | |
Type | Ravatherm XPS. Guidance for specification option: Thickness determined by project specific U-Value calculation. |
Water control layer | Ravatherm XPS X MK. |
Capsheet | Rootbar sanded capsheet. Manufacturer guidanceRootbar Sanded capsheet (silica sand) is a polyester reinforced SBS-modified bitumen membrane with root inhibiting additives. |
Fire performance | Broof (t4). Guidance for specification option: Where ballast layers are installed in accordance with 2000/553/EC: Commission Decision of 6 September 2000 implementing Council Directive 89/106/EEC or prescribed systems classified in accordance with BS EN 13501-5. |
Filter fleece | SLP300 protection fleece. |
Sustainability data
Material | Bitumen |
Product certifications
Product certifications
Certification type

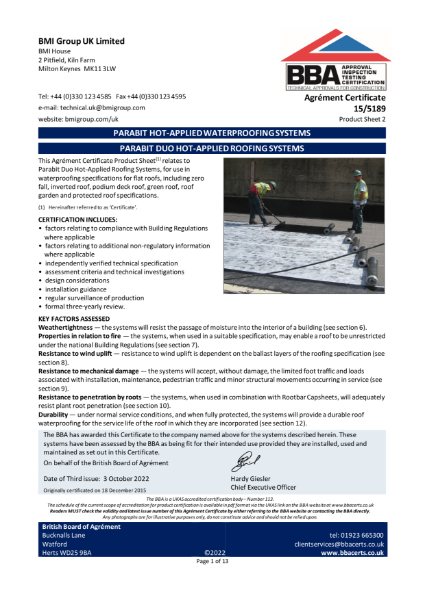

BBA Agrément Certificate
Parabit Duo Hot Applied Roofing System

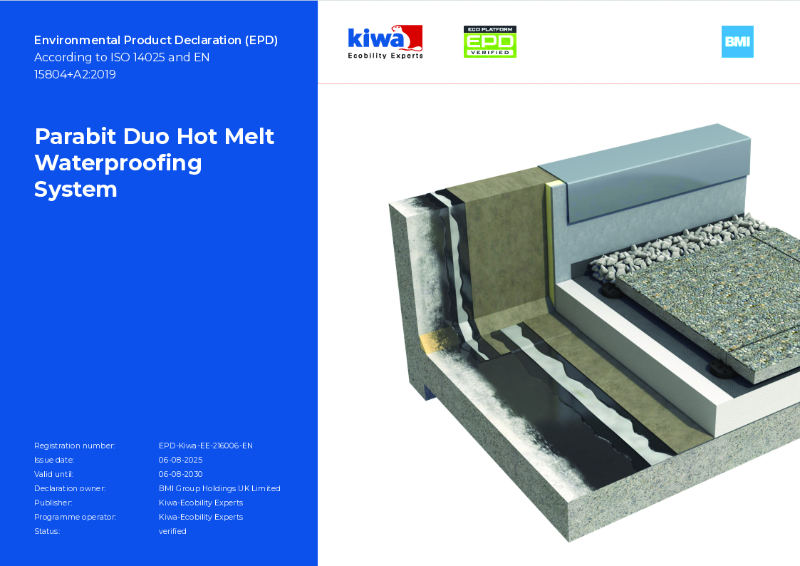

EPD
Parabit Duo Hot Melt Waterproofing
Literature
Siplast Primer Technical Data Sheet

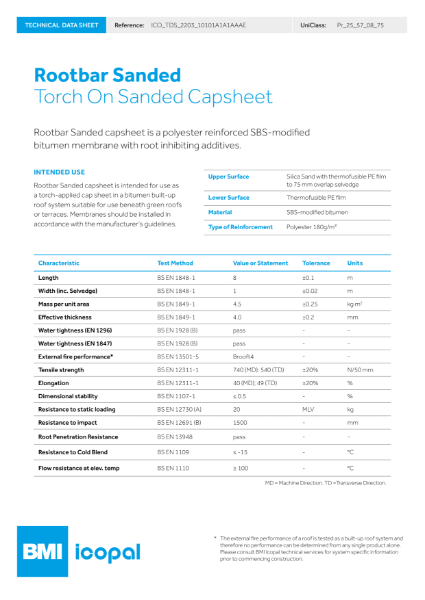

Rootbar Sanded Capsheet
