Parabit Duo Hot Melt - Podium Roof - Green roof system
Verified by manufacturer 7 months ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Double layer bituminous hot melt waterproofing membrane for inverted warm roofs with Ravatherm XPS insulation with concrete paving and gravel ballast as the system finish.
Application
Parabit Hot Melt Membranes are suitable for use in protected/ inverted roofs, plaza decks, green and blue roof installations.
Description
Parabit Duo Hot Melt Waterproofing System is a hot applied, durable and flexible waterproofing membrane manufactured from a blend of bitumen and SBS polymers.
Features and benefits:
- Fully protected waterproofing membrane.
- Robust and durable solution installed directly to the concrete substrate achieving a full bond.
- Single layer hot melt waterproofing to the field area for faster application.
- Guarantee upto 30 years.
- SBS modified bitumen compound and protection sheet.
- Rootbar membrane option for green roofs.
- Certification: BBA Certificate - 15/5189 (PS 1).
- Environmental Product Declaration (EPD-Kiwa-EE-215962-EN)
General information
Material | Bitumen |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 35 year |
Uniclass | |
CAWS | J31/12 Inverted roof coating J31/130 Inverted roof coating |
Specification data - Liquid-applied inverted roof covering systems
Classification data | |
Preparation | |
Horizontal work | Siplast Primer. Guidance for specification option: Siplast Primer is a low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent. |
Skirtings and vertical work | Siplast Primer. Guidance for specification option: Siplast Primer is a low viscosity priming solution consisting of elastomeric bitumen and hydrocarbon solvent. |
Liquid-applied waterproofing | |
Type | Parabit Hot Melt Compound. Guidance for specification option: SBS modified bitumen compound for use within a multi layer hot melt system. |
Reinforcement | Parabit DUO Reinforcing Fabric. Guidance for specification option: A non-woven polyester reinforcement for use with the Parabit Duo hot melt membrane. |
Insulation | |
Type | Ravatherm XPS. |
Water control layer | Ravatherm XPS X MK. |
Fire performance | Broof (t4). |
Capsheet | Power Elastomeric 250 Sanded. Guidance for specification option: Power Elastomeric 250 Sanded: SBS modified bitumen underlay/ capsheet for use within a multi layer system. |
Protection fleece | Protection fleece - SLP300. |
Sustainability data
Material | Bitumen |
Product certifications
Product certifications
Certification type
BBA Agrément Certificate
Parabit Duo Hot Applied Roofing System
EPD
Parabit Duo Hot Melt Waterproofing
Literature
Siplast Primer Technical Data Sheet

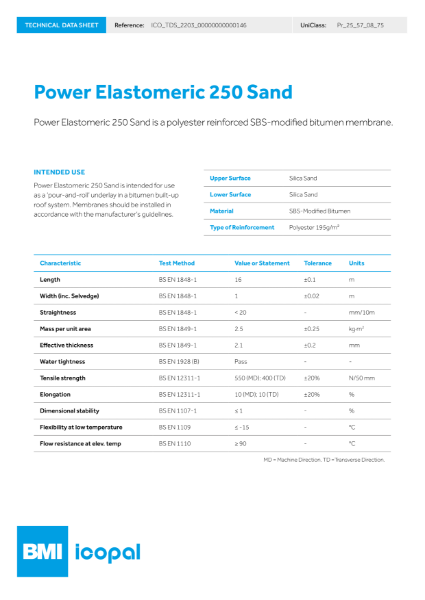

Power Elastomeric 250 Sanded
