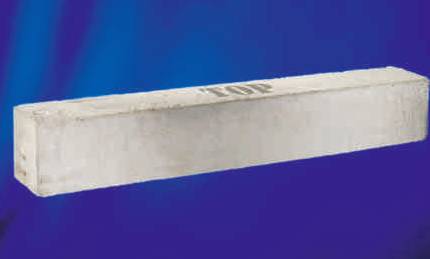

R13 - Lintels

Name: R13 - Lintels
Brand: Naylor Concrete Products Ltd
SKU: f3tx7cRqG9pgunkBDeVLvH

Verified by manufacturer 3 months ago

Naylor Concrete Products Ltd

Pre-stressed lintels ensuring optimum performance and 30 minutes fire rating as standard.

Jump to:

BOS

01226 320810 Website

Application

For use in 190 mm wide walls and partitions in plastered/ rendered situations. Also suitable for use below ground.

Description

All Hi-Spec lintels are pre-stressed to ensure optimum performance and come with 30 minutes fire rating as standard. R13 lintels are available in 14 different sections sizes, with lengths up to 4800 mm. Due to additives and concrete strength, these units are suitable for use below ground.

Features and benefits:

The design complies with EN 1992-1-1.
Materials comply with BS EN 206 and BS 8500.
The pre-stressing wire complies with BS 5896.

General information

Color	Grey
Finish	Textured Guidance for specification option: Extruded concrete finish.
Material	Concrete
Shape	Rectangle
Length	600 mm 900 mm 1050 mm 1200 mm 1350 mm 1500 mm 1800 mm 2100 mm 2400 mm 2700 mm 3000 mm 3300 mm 3600 mm Show more
Width	190 mm
Height	290 mm
Warranty description	50 year Guidance for specification option: Design life.

Uniclass	Pr_20_85_48_67 Prestressed concrete lintelsPrimary
CAWS	F30/745 Prestressed concrete lintels

Product range	Lintels / Hi-Spec Lintels

Specification data - Prestressed concrete lintels

Standard	To BS EN 845-2.
Types	Single.
Dimensions	-
Length	600 mm. 900 mm. 1050 mm. 1200 mm. 1350 mm. 1500 mm. 1800 mm. 2100 mm. 2400 mm. 2700 mm. 3000 mm. 3300 mm. 3600 mm. Guidance for specification option: Longer lengths available on request - up to 4800 mm.
Cross section	190 x 290 mm.
Characteristics	-
Deflection under load	1.9 mm. Guidance for specification option: Deflection at 1/3 of load capacity.
Freeze/ thaw	Resistant.
Mass	132 k.g./m.
Resistance to fire	30 minutes.
Thermal conductivity	1.52 W/m.K. Guidance for specification option: Thermal conductivity λ 10,dry, mat, to EN 1745.
Water absorption	1.15 Cw.s.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.19 kg CO₂ eq/kg Self declared Guidance for specification option: Raw materials are locally and responsibly sourced.
Recyclability	- Manufacturer guidance At the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	-	5
Revit	-	6
