Record TSA20 Telescopic Sliding Doors

Name: Record TSA20 Telescopic Sliding Doors
Brand: Record U.K. Limited
SKU: sruV3gr3GEe4qT1QF4rCRs

Verified by manufacturer 28 days ago

E-TSA Single Leaf Telescopic Door

Record U.K. Limited

Third party certifications:

Achilles Information Limited - Procurement Management
Certificate type
ADSA
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
CHAS
Certificate type
Alcumus SafeContractor
Certificate type
QA Certificate
Certificate type
Constructionline Gold
Certificate type

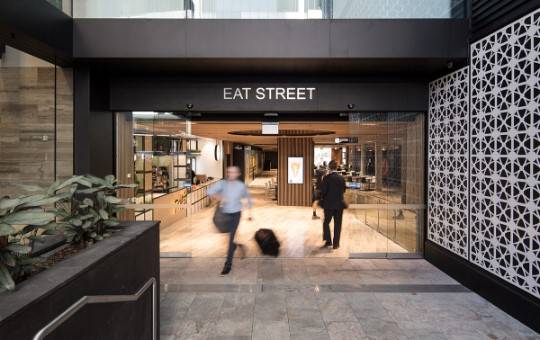

TSA20 telescopic sliding doors.

Jump to:

+44 (0)1698 376411 Website

Application

Suitable for all applications including escape and rescue routes

Description

Telescopic doors provide an excellent problem-solving solution, allowing for an entrance opening that is as wide as possible, for projects such as this the Record TSA20 is a perfect reliable and robust choice.

With door leaves that stack in the open position, these doors require less interior wall space than other solutions, and can therefore achieve a much wider opening even in spaces where a sliding door may not fit.

In comparison with the traditional sliding door, they take up about 30% less space thanks to their narrower leaves, and yet can cover especially large opening widths of up to 4000 mm.

The Record TSA 20 Telescopic sliding door is perfect for offices, retail stores, hospitals, schools and public buildings.

Features and benefits:

Intelligent door automation – self-learning.
Safer, more reliable.
Economical – also thanks to variable opening widths, depending on frequency of use.
User-friendly – simple menu-led operation via text display in most languages.
Intelligent record presence detector senses persons in the door leaf area.

DUO/ RED model:

E-TSA: 2 x 120 kg.
D-TSA: 4 x 90 kg.

Reinforced (20-200/ 22):

E-TSA: 2 x 130/ 2 x 170 kg.
D-TSA: 4 x 90/ 4 x 130 kg.

General information

Color	Silver Other Guidance for specification option: Any RAL or Eloxal colour. Clear Beige Black Blue Bronze Brown Copper Cream Gold Grey Green Ivory Orange Pink Purple Red Turquoise White Yellow Show more
Finish	Powder-coated Anodized
Material	Stainless steel Steel Aluminium
Shape	Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/60 Doors L20/520 Sliding doors L20/490 Automatic doors

Specification data - Sliding door and partition sets

Arrangement	Two leaf telescopic.
Operation	Powered.
Accessories	None. Remote control unit, BDE-D. Key operated contact, SSK. Trigger devices RAD 290, RIC 290 and AIR 290. Optical lock indicator. Manual locking inside. Manual locking outside. Locking device surveillance Emergency stop switch. Rechargeable battery for emergency operation in power failures. Approved escape door systems. Hinged foldable drive unit cover or in several parts. Module to extend functionality for optional upgrades (FEM).

Ambient temperature	-15 to +50°C.
Clear passage height	3000 mm (maximum). Guidance for specification option: Insert requirement.
Control options	Not required. Bell contact. Control lock. Defining customer-specific door parameters. Emergency door opening or closing (programmable parameters). Energy saving functions (automatic opening width TOWA). Show more Manufacturer guidance (Optional functions)
Drive	With side screen (d x h): 259 x 108/ 150 or 262 x 200 mm. Without side screen (d x h): 222 x 108/ 150 or 225 x 200 mm.
Electrical connection	230 V a.c., 50/60 Hz, 100 W.
Movement	1.5 s to 0.7 m.
Opening width	800–3000 mm. Guidance for specification option: Insert requirement.
Mode of operation	Automatic, continuously open, manual, one-way traffic, locked.
Remote control	Graphic display with background lighting.
Weight	2 x 90 kg. Manufacturer guidance Door leaf weight (maximum)
Operation	Automatic, continuously open, manual, one way traffic, locked.
