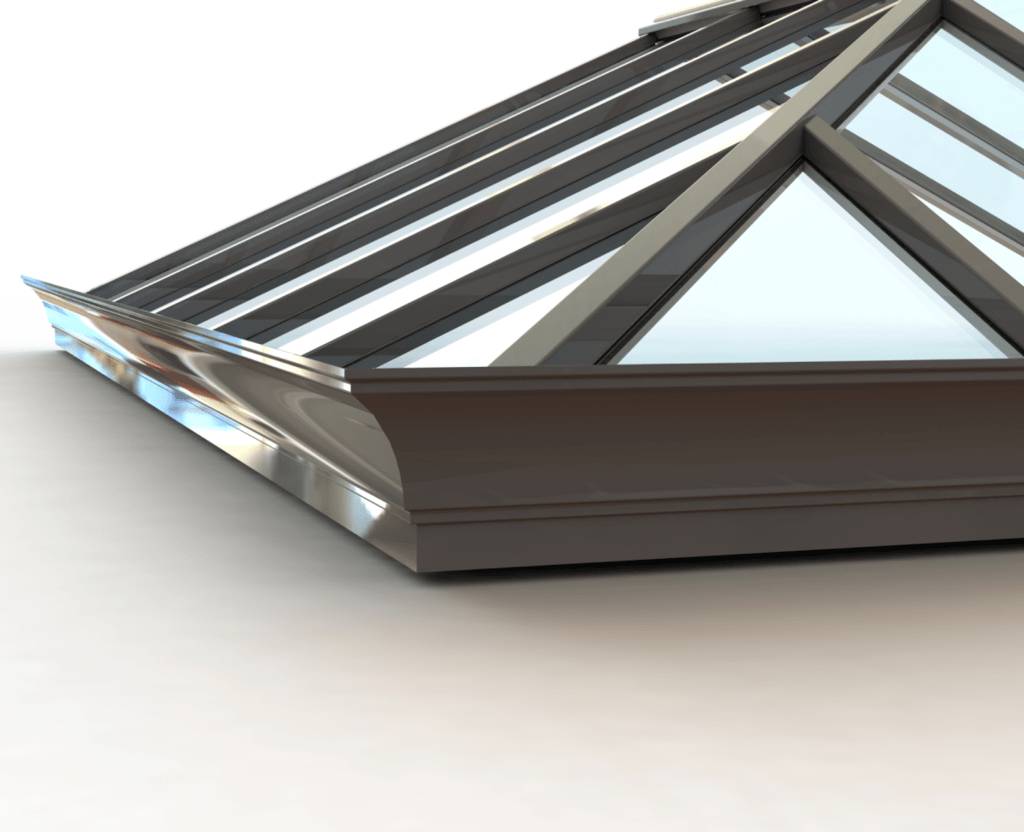

S2 Conservatory Roof System - Conservatory Roof System
Verified by manufacturer 2 months ago
Conservatory roof designed for thermal efficiency.
Application
Conservatory roofs.
Description
Conservatory roof designed for thermal efficiency.
Features and benefits:
- Modern, clean-cut aesthetic.
- Slimline aluminium frame, designed to maximize the view.
- Chambered PVC-U glazing top cappings as standard, with aluminium alternative.
- Thermally efficient, with up to 36 mm glazing.
- Optional internal pelmet and gutter shroud systems; allows for the addition of perimeter lighting for evening use.
- Optional eaves beam bolster for use over bi-folding doors.
General information
Color | Clear |
Material | Aluminium PVC-U Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | B12/5 Conservatory B12/120 Conservatory |
Specification data - Glazed enclosures
External size | |
Length | Guidance for specification option: Insert requirements, refer to drawing/ design or schedule as required. |
Width | Guidance for specification option: Insert requirements, refer to drawing/ design or schedule as required. |
Height | Guidance for specification option: Insert requirements, refer to drawing/ design or schedule as required. |
Style | Modern conservatory roof. |
Roof | |
Performance criteria | Guidance for specification option: Insert requirements. |
Frame | |
Material | Aluminium frame/ ridge beam/ eaves beams.Guidance for specification option:
|

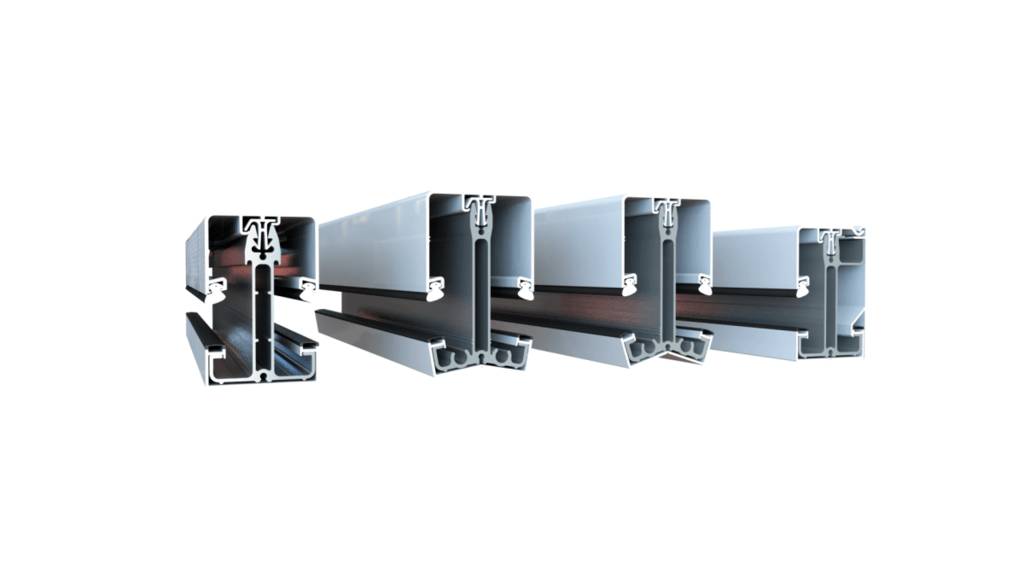

Thermal break | Thermally broken rafters.Guidance for specification option: Rafters designed with a thermal break to reduce heat transfer and improve energy efficiency. |
Finish | Manufacturer's standard.Powder-coated.Guidance for specification option: Weather-resistant powder-coated finish on the external frame for enhanced durability and aesthetic appeal. |
Colour | Manufacturer's standard.Other.Guidance for specification option: Powder-coated finish only; consult manufacturer for options and insert requirements. |
Glazing | |
System | Chambered PVC-U glazing top cappings, standard colour.Guidance for specification option: Standard. Durable, weather-resistant PVC top caps that provide a neat and protective finish to the edges of the conservatory roof. Chambered PVC-U glazing top cappings, colour.Guidance for specification option: Durable, weather-resistant PVC top caps that provide a neat and protective finish to the edges of the conservatory roof. Available in various color options to match or complement the exterior design of the structure. Aluminium glazing top cappings.Manufacturer guidanceSpecify glazing type separately below; see Glazing. |
Colour | Clear. |
Ventilation | |
Purge | Not required.Ventilation system.Guidance for specification option: Integrated ventilation components to maintain airflow and prevent condensation within the conservatory. |
Rainwater drainage | Guttering and downpipes.Guidance for specification option: System for managing rainwater runoff, ensuring proper drainage from the conservatory roof. |
Sealant | |
Location | Guidance for specification option: Insert details. |
Type | Guidance for specification option: Insert details. |
Accessories | None.Integrated LED lighting.Guidance for specification option: External LEDs, fitted into the soffit. Consult manufacturer for details. Internal pelmet and gutter shroud systems.Guidance for specification option: Allows for the addition of perimeter lighting for evening use. Coloured fascias and soffits.Guidance for specification option: Insert requirements. Can be made to match the existing property aesthetics, including most colour options. It also accommodates external soffit lights. Eaves beam bolster.Guidance for specification option: For use over bi-folding doors. Decorative crestings and finials.Guidance for specification option: Ornamental features that add a traditional and stylish look to the conservatory roof. Consult manufacturer for options and insert requirements. Manufacturer guidanceConsult manufacturer for details as required. See also Ventilation for specific accessories. |
Glazing | Double glazed. Triple glazed. Manufacturer guidanceConsult manufacturer for options and insert details. Glazing up to 36 mm is available. |
Integral accessories | Fixing kits. Guidance for specification option: Complete kit containing all necessary screws, bolts, and fittings for secure assembly and installation. |
Fascia | Fascia boards. Guidance for specification option: Boards installed along roof edges, supporting guttering and providing a neat finish. Manufacturer guidanceSee also Accessories for lighting options. |
Sustainability data
Material | Aluminium PVC-U Glass |
