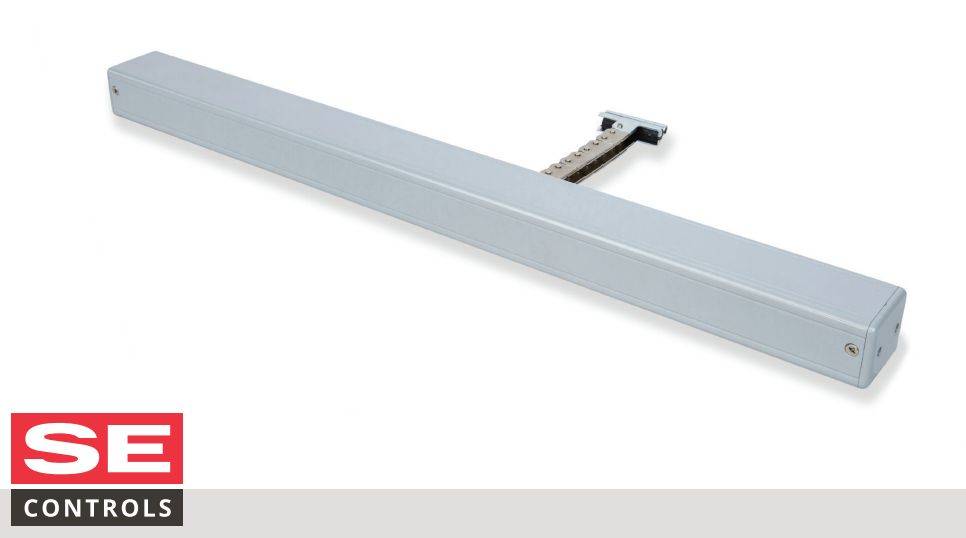

The SECO Ni 40 is a compliant Chain Actuator designed to provide precise and reliable operation for Environmental Ventilation applications.
Suitable for environmental ventilation applications.
SE Controls manufacture this high-quality ‘Made in Britain’ actuator with the following features:
• ‘Frequency of operation’ data logging records every actuator movement
• Compact design with variable options for stroke length
• Standard finish is RAL 9006, (White Aluminium), but may be customised to suit installation requirements
• Standard flex length is 2 m but this can be modified to suit installation requirements
• Extensive range of brackets to suit a variety of window systems
• Quiet operation with configurable speed control
Color | Grey Guidance for specification option: RAL 9006. Manufacturer guidanceBespoke options available to any RAL code. |
Finish | Powder-coated Guidance for specification option: Polyester powder-coated. |
Material | Steel |
Shape | Rectangle |
Length | 785 mm |
Width | 54 mm |
Height | 42 mm |
Warranty description | One year Guidance for specification option: 12 months from date of invoice. Commercial terms for each project will supersede this warranty information. |
Uniclass | |
CAWS | L10/490 Roof ventilators L10/480 Roof windows L10/460 Rooflights L10/400 Composite windows L10/310 Steel windows L10/10 Wood windows L10/210 Wood windows L10/45 Rooflights L10/30 PVC-U windows L10/25 Aluminium windows L10/15 Wood windows L10/350 PVC-U windows L10/20 Steel windows L10/650 Metal louvres L10/330 Aluminium windows L10/31 PVC-U windows L10/390 Proprietary windows L10/33 Proprietary windows |
Stroke | 20–600 mm (configurable). |
Electrical supply | 230 V a.c.Guidance for specification option: Voltage to 230 V chain actuators must be switched off after each operation, with a rest period required between cycles. |
Finish | Powder-coated RAL 9006, silver grey.Guidance for specification option: Standard. Powder-coated, RAL.Guidance for specification option: Insert RAL reference: Consult manufacturer for available colours. |
Accessories | Not required.Flex length, non-standard.Guidance for specification option:
|
Opening speed | 15 mm/s minimum. 5 mm/s (configurable). |
Fixing | Brackets, sill fixing. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, open inward. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, face fixing. Guidance for specification option: Consult manufacturer for height and offset options. |
Orientation | Bottom-hung. Top-hung. Side-hung. Centre-pivot. |
Interconnecting cable | 4 core PVC. |
Ingress protection (IP) rating | IP20. |
Current | 0.25 A (draw). |
Force | 400 N. Guidance for specification option: Thrust/ close force. |
Operating temperature range | -5°C to +60°C. Guidance for specification option: Ambient. |
Seal | Seal relief programmable up to 20 mm. |
Duty cycle | 22% (approximately 2 min on, 7 min off). |
Country of product manufacture | United Kingdom |
Material | Steel |
