Sika® CarboDur® - Pultruded Carbon Fibre Plates

Verified by manufacturer 4 days ago

CarboDur® M, type 614

Sika Limited Variant:

Pultruded carbon fibre plates for structural strengthening as part of the Sika® CarboDur® system.

Jump to:
Request BIM
+44 (0)1707 394444 Website

Application

Sika® CarboDur® systems are used to improve, increase or repair the performance and resistance of structures for:

Increased load carrying capacity:

  • Increasing the load capacity of floor slabs, beams and bridge sections.
  • For the installation of heavier machinery.
  • To stabilise vibrating structures.
  • For changes in building use.

Damage to structural elements due to:

  • Deterioration of the original construction materials.
  • Steel reinforcement corrosion.
  • Accidents (Vehicle impact, earthquakes, fire).

Improvement of serviceability and durability:

  • Reduced deflection and crack width.
  • Stress reduction in the steel reinforcement.
  • Improved fatigue resistance.

Change of the structural system:

  • Removal of walls and/ or columns.
  • Removal of floor and wall sections to create access/ openings.

Resistance to possible events:

  • Increased resistance to earthquakes, impact or explosion etc.

To repair design or construction defects such as:

  • Insufficient/ inadequate reinforcement.
  • Insufficient/ inadequate structural depth.

Description

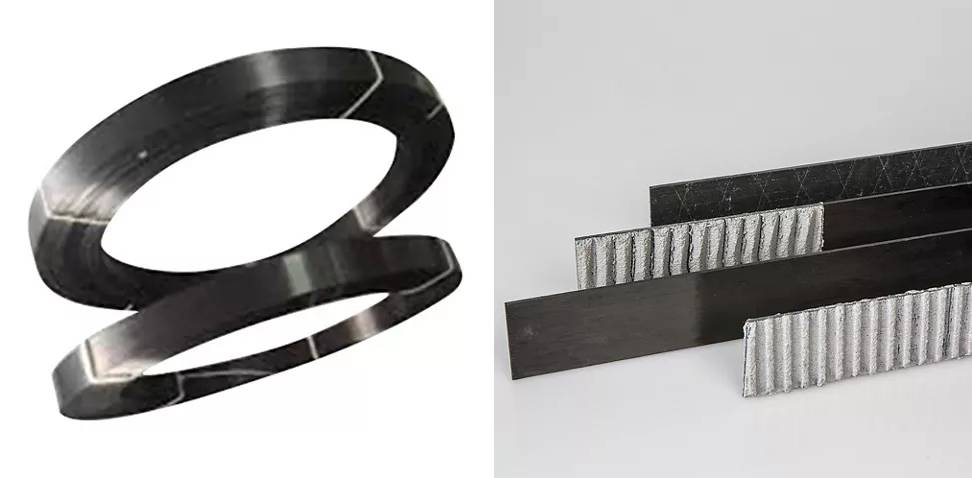

Sika® CarboDur® plates are pultruded carbon fibre reinforced polymer (CFRP) laminates, designed for strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures.

Sika® CarboDur® plates are bonded onto the structure as externally bonded reinforcement using Sikadur®-30 epoxy resin based adhesive for normal temperatures during application and/ or service.

Features and benefits:

Non-corroding.

  • Very high strength (CarboDur® S) or combination of very high strength and high stiffness (CarboDur® M).
  • Excellent durability and fatigue resistance.
  • Unlimited lengths, no joints required.
  • Low system thickness, simple execution of plate intersections or crossings.
  • Easy transportation (rolls).
  • Lightweight, very easy to install, especially overhead (without temporary support).
  • Minimum preparation of plate, applicable in several layers.
  • Smooth edges without exposed fibres as result of production by pultrusion.
  • Extensive testing and approvals available from many countries worldwide.

General information

Color

Black

Finish

Other

Material

Carbon fibre

Guidance for specification option:

Carbon-fibre-reinforced with an epoxy matrix.

Shape

Other

Rectangle

Length

Bespoke

Width

50 mm

60 mm

80 mm

90 mm

100 mm

Show more

Height

1.2 mm

1.4 mm

2.6 mm

Uniclass

Pr_20_96_71_26 Fibre-reinforced polymer platesPrimary

CAWS

E30/240 Proprietary prefabricated reinforcement

F30/265 Support systems

G10/135 Hollow steel sections

G12/330 Proprietary metal members

G20/230 Structural softwood (strength class not specified)

G20/210 Structural softwood (graded direct to strength class)

G20/250 Structural hardwood (graded direct to strength class)

G20/260 Structural hardwood (strength class not specified)

G20/345 Proprietary structural wood composite

G20/336 Structural wood composite

G20/7 Structural hardwood

G20/5 Structural softwood

G10/17 General steel sections

G20/17 Structural wood composite

G12/30 Proprietary members

Specification data - Fibre-reinforced polymer plates

Classification data

Fibre type

Carbon fibre.

Performance characteristics

-

Tensile strength

To EN 2561, 3500 N/mm².

Guidance for specification option:

Laminate, mean value.

5% fractile-value: 3200 N/mm².

Manufacturer guidance

Values are in the longitudinal value of the fibres.

Modulus of elasticity

To EN 2561, 210 000 N/mm².

Guidance for specification option:

Laminate tensile modulus of elasticity.

5% fractile-value: 205 000 N/mm².

Elongation at break

To EN 2561, 1.7%.

Guidance for specification option:

Strain mean value for laminate.

Manufacturer guidance

Values are in the longitudinal value of the fibres.

Structural adhesive

-

Glass transition temperature

To EN 16006, >100°C.

Shelf life

Unlimited.

Guidance for specification option:

Provided the storage requirements are met.

Product characteristics

-

Fibre volume

>68%.

Density

1.6 g/cm³.

Dimensions

-

Width

60 mm.

Resin

-

Resin type

Epoxy.

UV protection

Not required

Area

Cross section: 84 mm².

Fixing

Sikadur®-30 epoxy resin-based adhesive.

Guidance for specification option:

For normal temperatures during application and/ or service.

Other.

Guidance for specification option:

Consult manufacturer and insert requirements.

Thickness

1.4 mm.

Approvals

Slovakia: TSUS, Building Testing and research institutes.
Slovakia: Technical Approval TO-09/0080, 2009: Systémy dodatočného zosilňovania konštrukcií Sika® CarboDur® a SikaWrap®.
Poland: Technical Approval ITB AT-15-5604/2011: Zestaw wyrobów Sika® CarboDur® do wzmacniania inapraw konstrukcji betonowych.
Poland: Technical Approval IBDiM Nr AT/2008-03-0336/1 „Płaskowniki. pręty, kształtki i maty kompozytowe do wzmacniania betonu o nazwie handlowej: Zestaw materiałów Sika® CarboDur® do wzmacniania konstrukcji obiektów mostowych.
France: CSTB - Avis Technique 3/16-875, Sika CarboDur, SikaWrap.
Fib, Technical Report, bulletin 14: Externally bonded FRP reinforcement for RC structures, July 2001.
USA: ACI 440.2R-08, Guide for the Design and construction of Externally Bonded FRP Systems for strengthening concrete structures, July 2008.
UK: Concrete Society Technical Report No. 55, Design guidance for strengthening concrete structures using fibre composite material, 2012.
Switzerland: SIA 166:2004 Klebebewehrungen.
Italy: CNR-DT 200 R1/2013 - Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Existing Structures.
