Slimfit Metal Access Panel (EX01 Range) - Non Fire Rated - Wall and Ceiling Access Panel

Verified by manufacturer 2 months ago

Exitile Access Ltd

Slimfit metal access panel for walls and ceilings, beaded frame, non fire rated.

Jump to:
+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall and ceiling systems.

Description

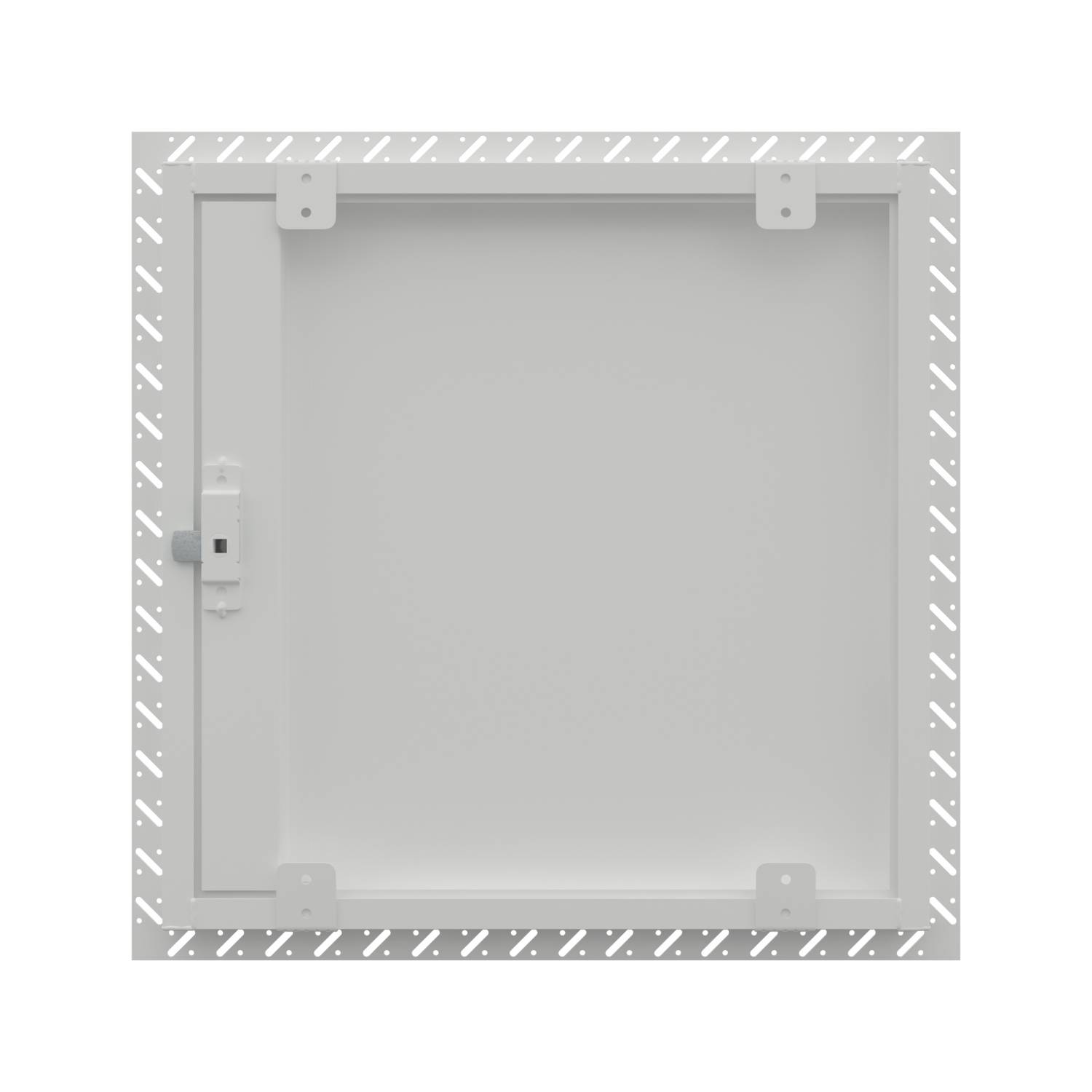

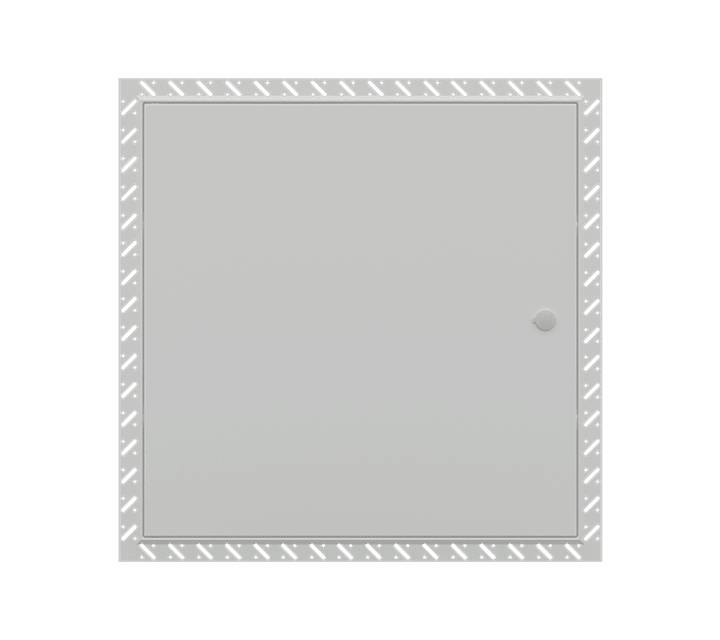

This panel is designed with a 27 mm deep frame to fit into a structural membrane of a jointless plasterboard wall and ceiling system where space is an issue. It is manufactured with a beaded frame for taping and jointing or skim coat plastering and has a metal faced door. The door leaf is locked in place via a budget lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.


Features and benefits:

  • The slim fit frame has been designed to cover Part J of the Building Regulations, where regular maintenance to services is required.
  • Manufactured from Zintec steel with a 0.9 mm thick door and frame.
  • The door leaf is hinged by a pin hinge system.
  • This panel is available up to 1200 x 1000 mm.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Position

Wall-mounted.

Ceiling-mounted.

Size

-

Manufacturer guidance

  • Bespoke sizes available, insert requirements.
  • This product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 1200 x 600 mm (maximum).
  • The average lead time is 3–5 working days.

Frame

Bead for taping and jointing or skim coat plastering.

Panel

-

Material

Steel.

Integral finish

Powder-coated.

Latch or lock type

Low level security budget lock.

Touch catch.

Medium level security IP65 - key retaining tamper proof lock.

High level security castellated tamper proof lock.

3 way euro profile cylinder lock.

Colour/ Finish

RAL 9010, 30% gloss.

Other.

Guidance for specification option:

Other colours are available on request. Consult manufacturer and insert requirements.
