Slimfit Wall Metal Access Panel (EX01 Range) - Picture Frame - 2 Hour Fire Rated - Wall and Ceiling Access Panel
Verified by manufacturer 2 months ago
Slimfit Metal Access Panel, Beaded Frame, Non Fire Rated, Budget Lock as standard
Application
Suitable for walls and ceilings.
Description

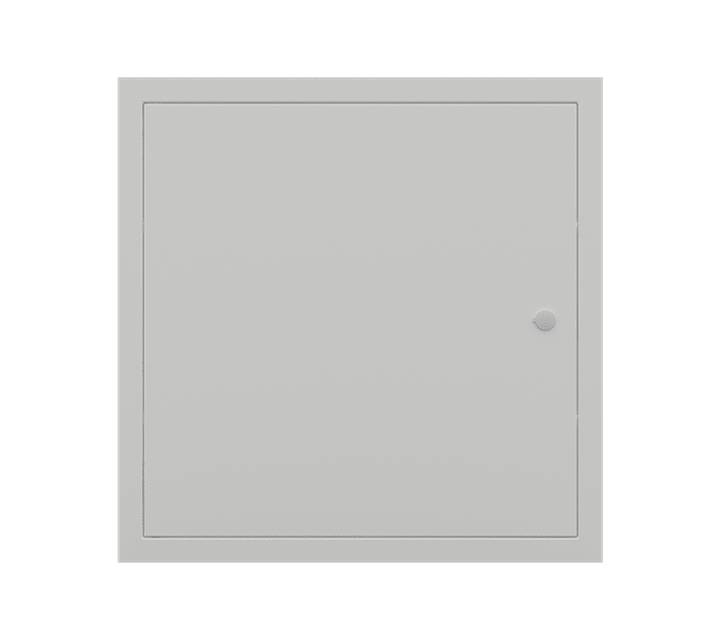

The EX01-120-MD-PF-BL access panel is simple to install and suitable for walls and ceilings, allowing easy access where regular maintenance to services is required. It is manufactured with a 25 mm wide picture frame and has a metal faced door. The door leaf is locked in place via a budget lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
- Two hour fire rated for integrity up to 1200 x 600 mm in wall and ceiling applications.
- Manufactured from Zintec steel with a 0.9 mm thick door and frame.

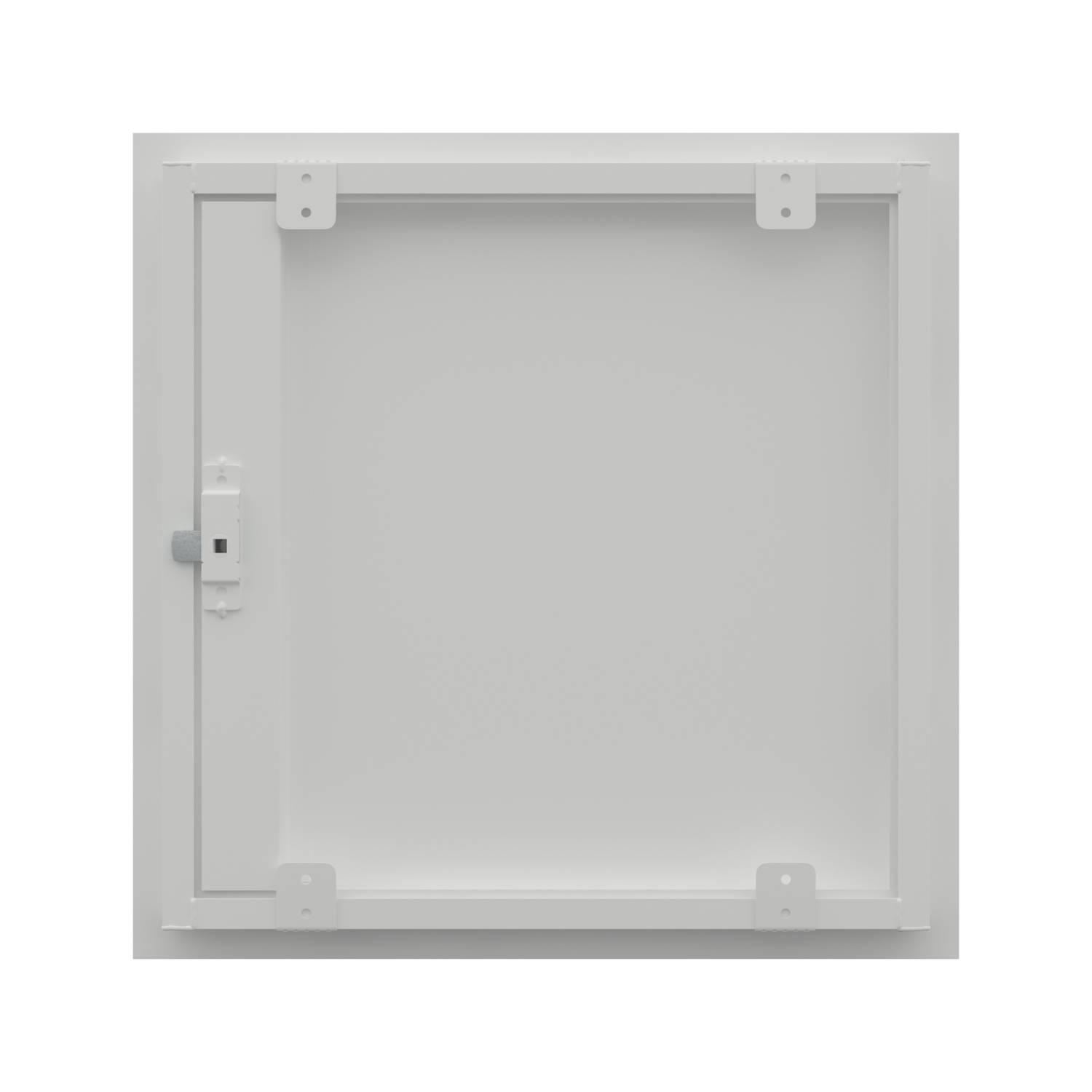

- The door leaf is hinged by a pin hinge system.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 120 minutes integrity to BS EN 1634-1:2008, BS EN 1363-1:1999, BS 476-20:1987, BS 476-22:1987.Guidance for specification option: The panel is two hour fire rated for integrity up to 1200 x 600 mm in a wall application tested in accordance with BS EN 1634-1:2008 and BS EN 1363-1:1999 and up to 1200 x 600 mm in a ceiling application tested in accordance with the temperature and pressure conditions of BS 476-20:1987 and utilising the principles of BS 476-22:1987 where appropriate. |
Position | Wall-mounted.Ceiling-mounted. |
Size | Manufacturer guidance
|
Frame | Exposed picture frame type. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Latch or lock type | Low level security budget 3-way lock.Medium level security IP65 key-retaining tamper-proof lock.High level security castellated tamper proof 3-way Euro profile cylinder lock.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Datasheet - Slimfit Metal Access Panel - Picture Frame - 2 Hour Fire Rated
Product Page - EX01 Slimfit Metal Access Panel
