Spacepod -
Verified by manufacturer 2 days ago
Vertical, space-saving cycle rack to be installed in a curved configuration.
Application
For use in areas where space is at a premium or where only wall space is available.
A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.
Description

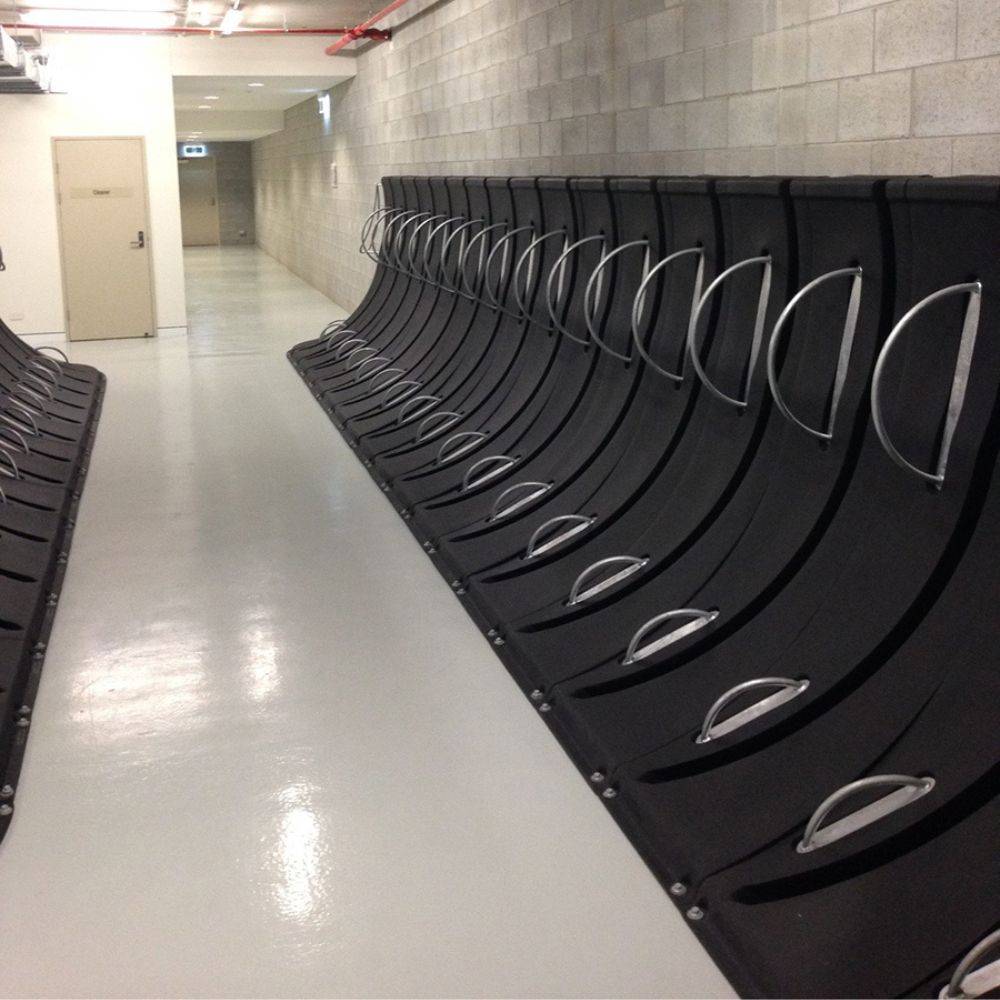

Vertical, space-saving cycle rack, designed to be installed in a curved configuration within open spaces.
Features and benefits:
- Highly configurable - Spacepod and Cyclepod units can be combined to create walls and islands to make optimum use of the available space.
- Also available in straight and island formations.
- Can be paired with shelters and canopies.
- The upper and lower securing arms provide two locking points per bicycle (front wheel and frame/ back wheel and frame) for extra security.
- Practical and easy to use.
- Channel is compatible for use with 99% of all standard European tyre widths.
- Includes rainwater holes in the base of every track for drainage.
- Space-saving; up to 50% smaller than traditional bike storage units.
- Metal reinforcement plates are added to the securing arms.
General information
Color | Black Guidance for specification option: Recyclable. Red Yellow Blue Guidance for specification option: Royal blue and light blue. Green Guidance for specification option: Dark green and light green. |
Finish | Manufacturer guidanceDimpled effect with varying colour range. |
Material | Stainless steel Nickel Medium density polyethylene (MDPE) Manufacturer guidanceThe body is medium density polyethylene (MDPE), fixings are stainless steel, ground anchors are zinc plated and nuts are nyloc. |
Shape | Other |
Length | 550 mm |
Width | 1630 mm |
Height | 1097 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/210 Cycle stands Q50/212 Cycle lockers |
SKU Code | 108.0042 |
Specification data - Plastics cycle lockers
Classification data | |
Stand type | Semi-vertical cycle stand. |
Dimensions | |
Width | 1630 mm. |
Depth | 546 mm. |
Height | 1078 mm. |
Materials | |
Frame | Medium density polyethylene (MDPE). |
Panels | Medium density polyethylene (MDPE). |
Colour | Black. Guidance for specification option: Standard (recyclable). Grey. Light green. Dark green. Light blue. Red. Royal blue. Stone effect. Yellow. |
Accessories | Not required. Canopy option. |
Configuration | Guidance for specification option: Insert requirements. |
Securing arms | Galvanized steel rod, 20 mm. Guidance for specification option: Standard. Recycled stainless steel tube, 25 mm. Guidance for specification option: On request. |
Top plate | Galvanized steel, 5 mm. Stainless steel, 5 mm. |
Weight | 15 kg each. |
Fixings | M12/M14 monties, drilled to a depth of 100 mm (maximum), two fixing bolts required (per unit). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Nickel Medium density polyethylene (MDPE) Manufacturer guidanceThe body is medium density polyethylene (MDPE), fixings are stainless steel, ground anchors are zinc plated and nuts are nyloc. |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Up to 100%. |
Expected Life | 20 year |
