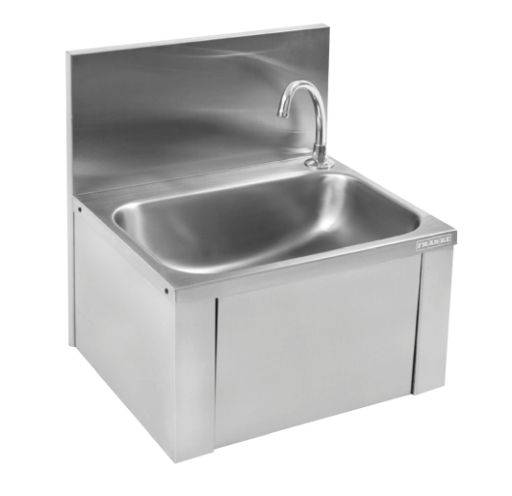

Stainless Steel Wash Basin - ANMX206

Name: Stainless Steel Wash Basin - ANMX206
Brand: KWC DVS Limited
SKU: 53fpN6JpVFipZ4SiuX6iDw

Verified by manufacturer over a year ago

WB18 knee operated washbasin.

Jump to:

BOS

Application

Knee operated wash hand basin which is wall mounted.

Knee operated wash hand basin.

Features and Benefits:

Supplied complete with water spout positioned in rear right hand corner and 32 mm waste outlet.
The pre-mixing valve and the pipework linking the water spout to the knee operated front panel is all supplied with the washbasin.
Wall mounted by fitting a top joggle strip under the upstand return and by screw fixing through the integral rear brackets. Screws and plugs are not supplied.

Color	Silver
Finish	Satin
Material	Stainless steel Guidance for specification option: grade 1.4301 (304)
Length	380 mm
Width	520 mm
Height	460 mm
Warranty description	Five year Guidance for specification option: Two years for water controls.

Uniclass	Pr_40_20_96_96 Wall-hung washbasinsPrimary
CAWS	N13/30 Washbasins N13/335 Washbasins

Product range	Washbasins

Form	Wall mounted. Guidance for specification option: Knee operated.
Connecting dimensions	460 x 380 x 520 mm. Guidance for specification option: Bowl: 410 x 265 mm.
Materials	-
Body	Stainless steel. Guidance for specification option: grade 1.4301 (304)
Finish and colour	Satin.
Size	460 x 380 x 520 mm. Guidance for specification option: Bowl: 410 x 265 mm.
Water supply, overflow and waste holes	-
Water supply	Single tap hole, offset. Guidance for specification option: Water spout positioned in rear right hand corner.
Waste	32 mm waste outlet.
