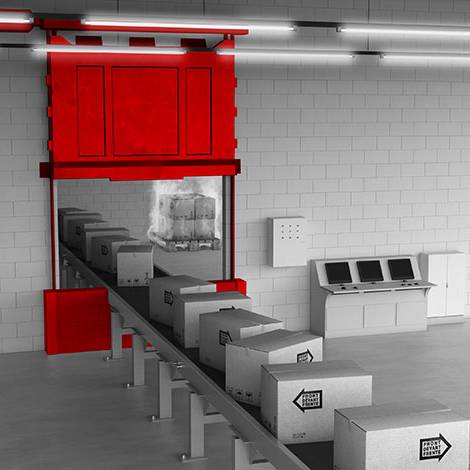

Stöbich System: ECClos®-S - Conveyor Fire Protection System
Verified by manufacturer 6 days ago
Vertical
Vertical
Conveyor system closure designed as a robust damper made of sheet metal panels.
Application
Track-bound conveyor system fire protection.
Description
The Stöbich ECClos®-S sheet metal damper conveyor fire protection system is suitable for interrupted and continuous conveyor systems (belt, roller and suspension chain conveyors). For easy application, the ECClos®-S uses variable fixed panels made up of a robust sandwich construction with sheet metal casing on all sides – a design feature that ensures the ECClos®-S is adaptable to meet fire protection requirements.
Features and benefits:
- Specialist building-based conveyor protection system.
- Segmented construction enables easy transportation to site.
- Variable fixed panels provide for easy implementation of customer-specific solutions.
- Sandwich construction.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles.
- Fire resistance: EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- European Technical Assessment - ETA (EU) and Certificate of Constancy of Performance (UK).
General information
Color | Red Grey Other |
Finish | Galvanized |
Material | Metal |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Fire curtain systems
System performance | Manufacturer guidance
|
Fire curtain | Vertical active fire curtain barriers.Guidance for specification option:
|
Head supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
Side supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fire resistance | EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. |
Durability Class | C5 (200 000 closing cycles). |
Operation | Electromotive. Guidance for specification option: Standard. Manual. Guidance for specification option: Optional. Manufacturer guidanceRe-opening operation. |
Dimensions | Guidance for specification option: Insert requirements. Approval range:
Technical feasibility:
|
System | Skid conveyor. Sloping track. Interrupted conveyor system. Continuous belt conveyor system. Continuous travelling carriages. Manufacturer guidanceConveyor system type. |
Supporting structure | Guidance for specification option: Insert requirements.
|
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Metal |
Recyclability | Manufacturer's standard |
