NBS Source
I'm a manufacturer
Compare variants

Streamline - Electric Vented Storage

Verified by manufacturer 2 days ago

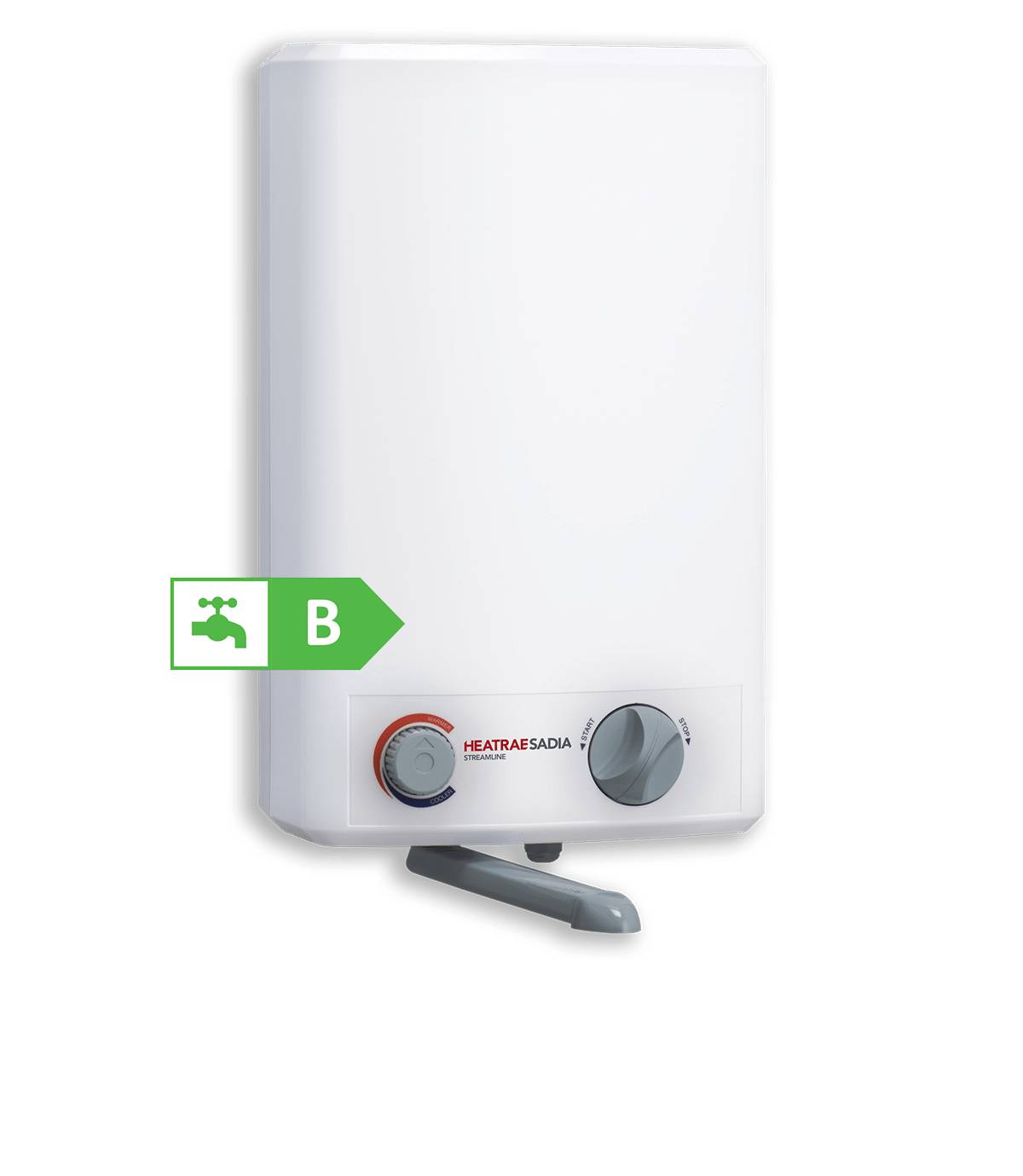

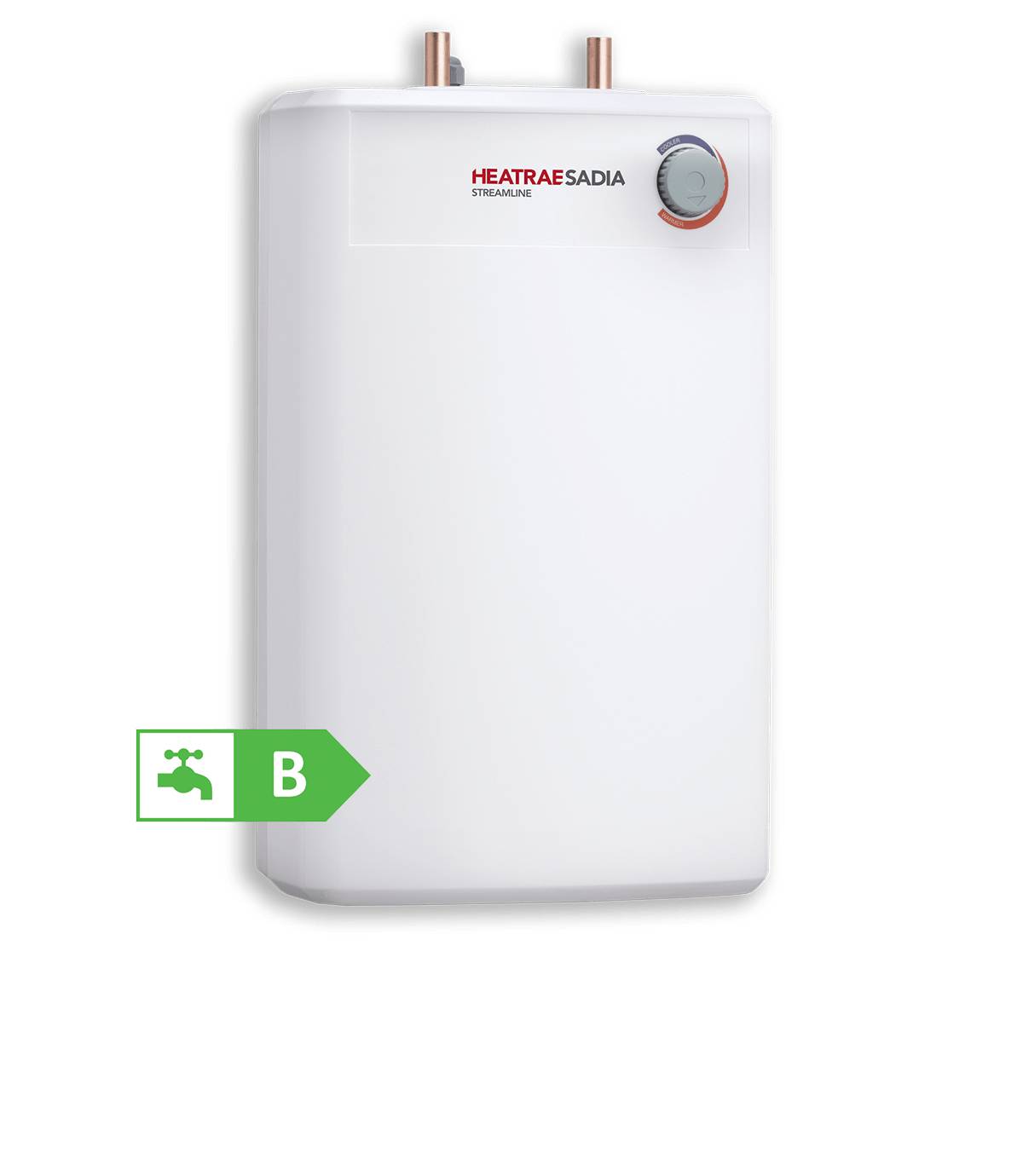

Streamline 7/1 Under-Sink

BAXI HEATING UK LIMITED Variant:

Vented water heaters suitable for single washrooms and office kitchen areas.

Jump to:
0330 678 0140 Website

Application

Suitable for applications where small amounts of hot water are needed, such as single washrooms and small office kitchens.

Description

With its slender and compact design, Streamline provides exceptional versatility, with under-sink and over- sink versions available, in two sizes and two different kW rating options. Streamline under sink can be customised with a choice of over fifteen styles of open vented taps and the over sink version is provided complete with a thermoplastic spout. Quick to fit and easy to use, Streamline only requires a cold water supply and mains electricity.

Features and benefits:

  • Choice of 7 or 10 litre capacities.
  • Compact, low profile.
  • 1 kW or 3 kW rating.
  • Choice of 15 vented taps, spout and mixer accessories.
  • Easy access for maintenance.
  • Externally adjustable thermostat from 5°C to 70°C.
  • 40°C temperature lock for hand-wash applications.
  • Dry start cut-out.
  • Long-life alloy sheathed element.
  • Two year guarantee with on-site service support.
  • Designed, engineered and manufactured in the UK.
  • KIWA approved product.

General information

Color

White

Finish

Enamelled

Material

Metal

Shape

Rectangle

Length

289 mm

290 mm

Width

178 mm

278 mm

Height

477 mm

500 mm

Warranty description

Two year

Uniclass

Pr_60_60_96_28 Electric storage water heatersPrimary

CAWS

S90/400 Storage water heaters, electric

SKU Code

95:010:280

Specification data - Electric storage water heaters

Classification data

Third-party certification

KIWA-approved.

Arrangement

Mains supply.

Capacity

7 L.

Rating

1 kW.

Flow rate

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Casing finish

White stove-enamelled.

Controls

Adjustable thermostat from 5–70°C.

Accessories

Vented taps.

Guidance for specification option:

Choice of 15 vented taps, spout and mixer accessories.

Consult manufacturer for details and insert requirements.

Dimensions

477 x 178 x 289 mm.

Manufacturer guidance

Height x width x depth.

Weight

3.4 kg (empty); 10.4 kg (full).

Environmental performance

ErP rating: B.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Metal

Recyclability

-

Manufacturer guidance

The Streamline unit is partially recyclable:

  • Metal components (e.g., steel casing) can be recovered.
  • Plastic and electrical components require specialist recycling.
  • Baxi supports responsible disposal practices.

Expected Life

20 year

Literature

Vented Point-of-use Hot Water - Streamline, Express, FBM Eco and R Plus

Vented Point-of-use Hot Water - Streamline, Express, FBM Eco and R Plus
