Stud Wall Partition – Part E Soundproofing

Name: Stud Wall Partition – Part E Soundproofing
Brand: iKoustic
SKU: 2Dz92uxxnRh8ioJwtetPd

Verified by manufacturer 2 months ago

iKoustic

A stud partition wall soundproofing system.

Jump to:

BOS

+44 (01937) 588 226 Website

Application

Suitable for new builds or existing structure conversions.

Description

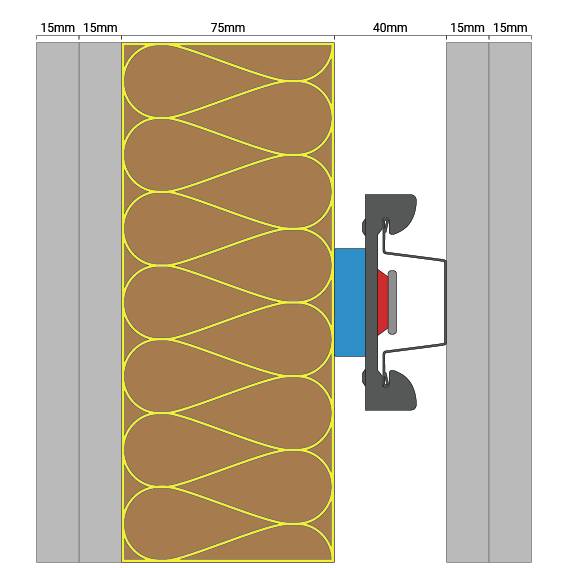

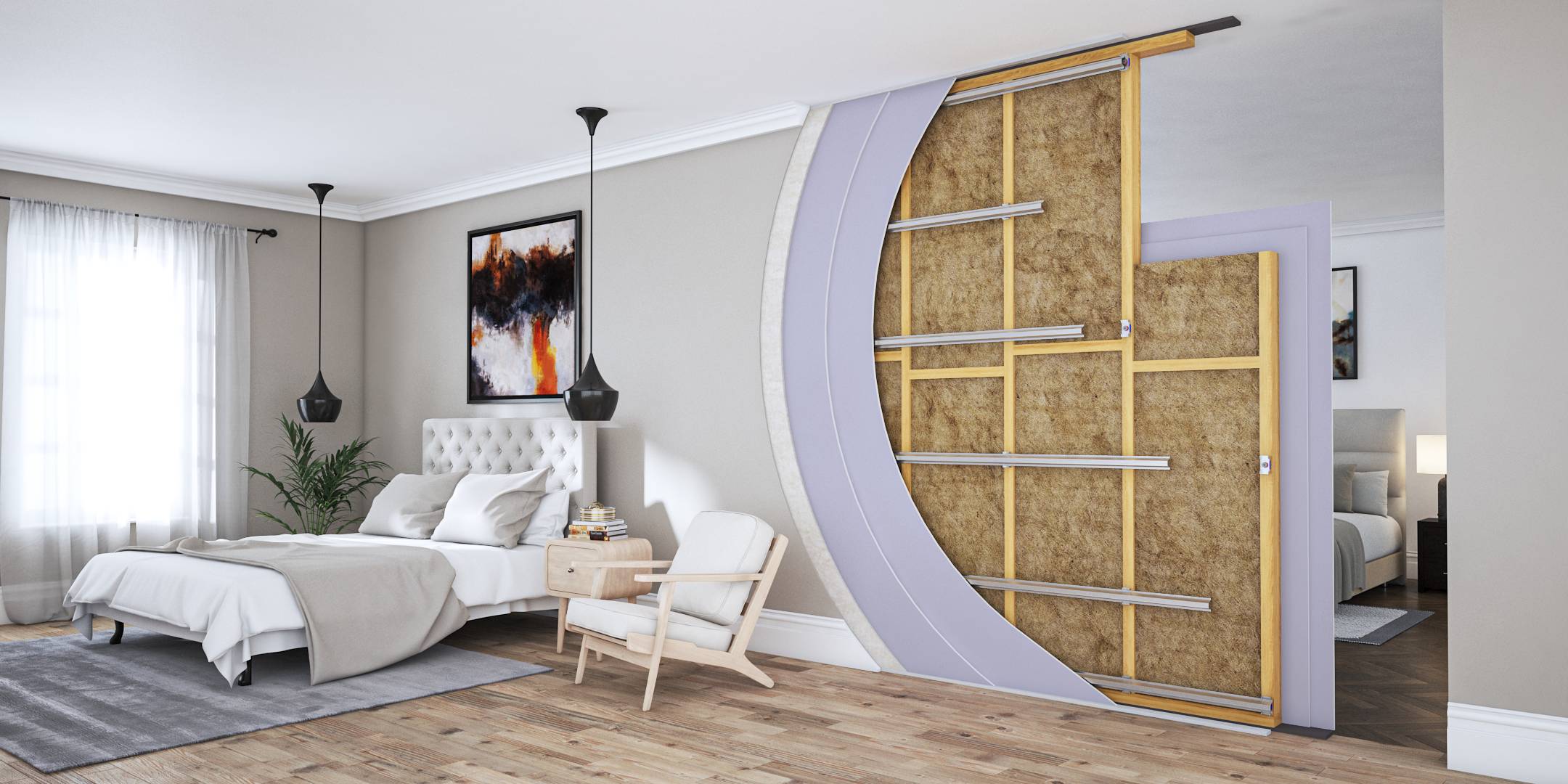

An acoustic lining system for stud wall partitions, designed to pass the soundproofing requirements for Part E of Building Regulations. The system combines a MuteClip isolated wall solution and dense acoustic mineral wool insulation with an acoustic plasterboard surface.

System components:

MuteClip® Isolation Clips.
MuteClip® Channel.
Rockwool acoustic mineral wool.
Soundproof plasterboard 15 mm (half-board).
Acoustic and intumescent sealant.

Features and benefits:

Compliant with Part E Building Regulations and Building Standards Technical Handbook 2017 for Scotland for airborne and impact transmission.
Easy to install.
Light skim plaster to finish.
74 mm thickness.
62 dB (DnT,w + Ctr) airborne reduction.

General information

Color	White Grey Blue
Finish	Other Guidance for specification option: Soundproof plasterboard, either tape and jointed or skim plastered.
Material	Plasterboard Mineral wool Metal
Shape	Rectangle
Length	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm (Half-board).
Width	74 mm Manufacturer guidance Soundproof Plasterboard 15 mm (Half-board).
Height	Bespoke Manufacturer guidance Soundproof Plasterboard 15 mm (Half-board).

Uniclass	Ss_25_25_45_35 Gypsum board wall lining systemsPrimary
CAWS	K10/165 Wall lining system (metal framing) K10/35 Wall lining system (metal framing)

Specification data - Gypsum board wall lining systems

Classification data
System performance	Acoustic performance of wall lining systems Guidance for specification option: 62 dB airborne reduction.
Support	MuteClip® Channel on MuteClip® Isolation Clips.
Insulation	Rockwool Acoustic Mineral Wool RW3 60 kg/m³.
Linings	-
Inner layers	Soundproof Plasterboard 15 mm (Half-board).
Face layer	Soundproof Plasterboard 15 mm (Half-board).
Fasteners	Plasterboard screws.
Joint treatment	Acoustic and intumescent sealant.
Finish	Tape and joint. Skim plaster finish.

Sustainability data

Material	Plasterboard Mineral wool Metal
Recyclability	Rockwool stone wool insulation can be recycled Guidance for specification option: Leftover Rockwool stone wool insulation and off-cuts can be recycled and transformed into new Rockwool insulation.
