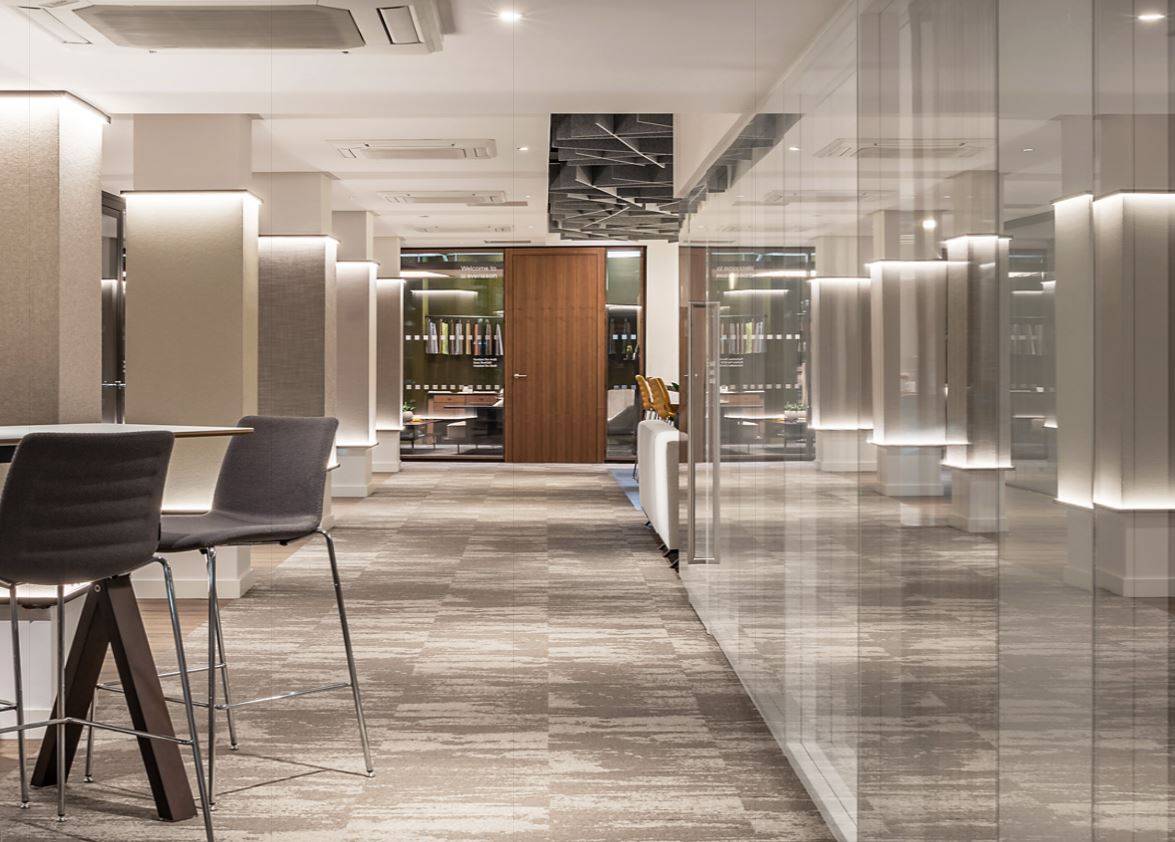

System 2300 - Glazed Partition
Verified by manufacturer 1 day ago
Rw 51 dB
Rw 51 dB
EPD
Certificate type
A double glazed, mullion based partition flush bonded framed partition system
Application
For commercial applications including offices.
Description
A double glazed, mullion based partition with no visible frame and flush bonded glazing, creating a floating glass design.
Features and benefits:
- Available with 51 or 53 dB acoustic performance: Acoustic glass combines with acoustic doors to achieve a wide range of acoustic performances.
- Flush bonded glazed frames use the reflectivity of glass to obscure the structure of the system, giving the effect of continuous glazing.
- The steel mullion structure means the system can accept any type of panel.
- Flush bonded doors ensure an integrated appearance across the partition front.
- Can be integrated with solid panel cross walls to facilitate organizational change.
- Reconfigurations are quicker than drywall.
General information
Color | Other Guidance for specification option: Anodized finish in six colours, or polyester powder-coated to any RAL colour. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass Stainless steel |
Shape | Other |
Length | 100 mm 125 mm Manufacturer guidanceDepth. |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Doors up to 3 m. System height up to 7 m. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Unit size | |
Thickness | 100 mm. |
Partition height (nominal) | Manufacturer guidanceMaximum system height 3000 mm with single vertical panel; up to 7000 mm with two panels. Consult manufacturer and insert requirements. |
Width (nominal) | Manufacturer guidanceMaximum panel width 1500 mm. Consult manufacturer and insert requirements. |
Deflection allowance (maximum) | |
Head | Guidance for specification option: Insert requirements.
|
Floor | 50 mm aluminium floor track. 80 mm aluminium floor track. Not required. |
Verticals | +/- 15 mm with 35 mm head track. +/- 25 mm with 35 mm head track. |
Panel partition type | Glazed - acoustic laminated. |
Framing, fixing points and joints | Flush bonded glazing frame fixed to internal steel post. |
Glazed panels | |
Type | Double-glazed. |
Additional features | Manufacturer guidanceConsult manufacturer and insert requirements. |
Door arrangement | |
Type | SG100 Door - Rw 42 dB. Guidance for specification option:
|
Locking | Surface mounted mag lock. Electric lock with lever handle. |
Door frames | Aluminium. |
Door panels | |
Type | Double glazed. |
Ceiling | |
Method of support | Head track - recessed. |
Seals | Drop down acoustic seal - full width. |
Acoustic performance | 51 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Floor channel | 50 mm floor profile. 80 mm floor profile. |
Wall abutment | 35 mm. 50 mm. |
Glass thickness | 8.8 mm + 8.8 mm. |
Sustainability data
Material | Aluminium Glass Stainless steel |
Product certifications
Product certifications
EPD

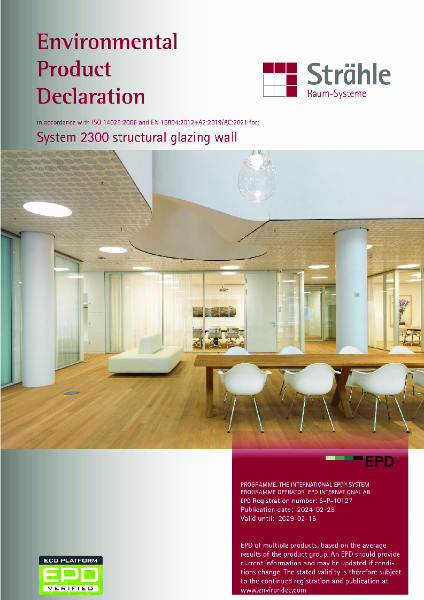

Strahle System 2300 EPD
Literature

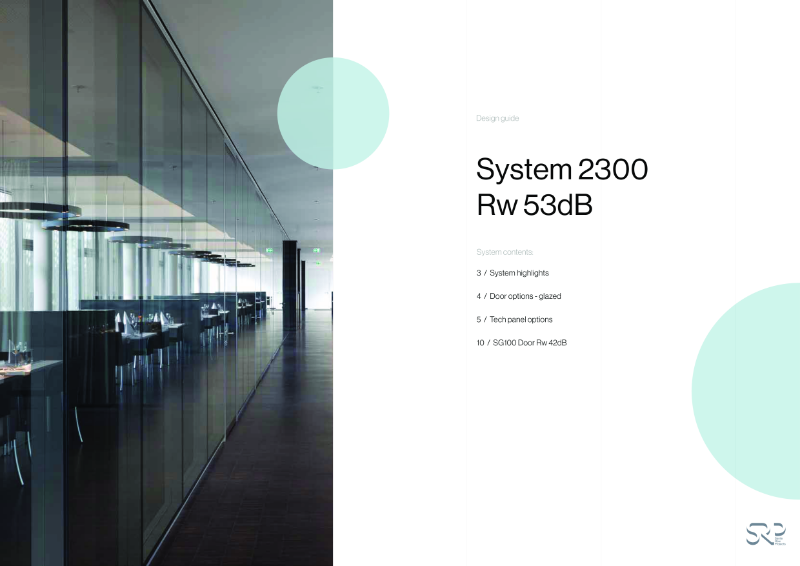

System 2300 - Design Guide
Case studies
Mann+Hummel - System 2300, System 2000 Solid Wall, Kubus
